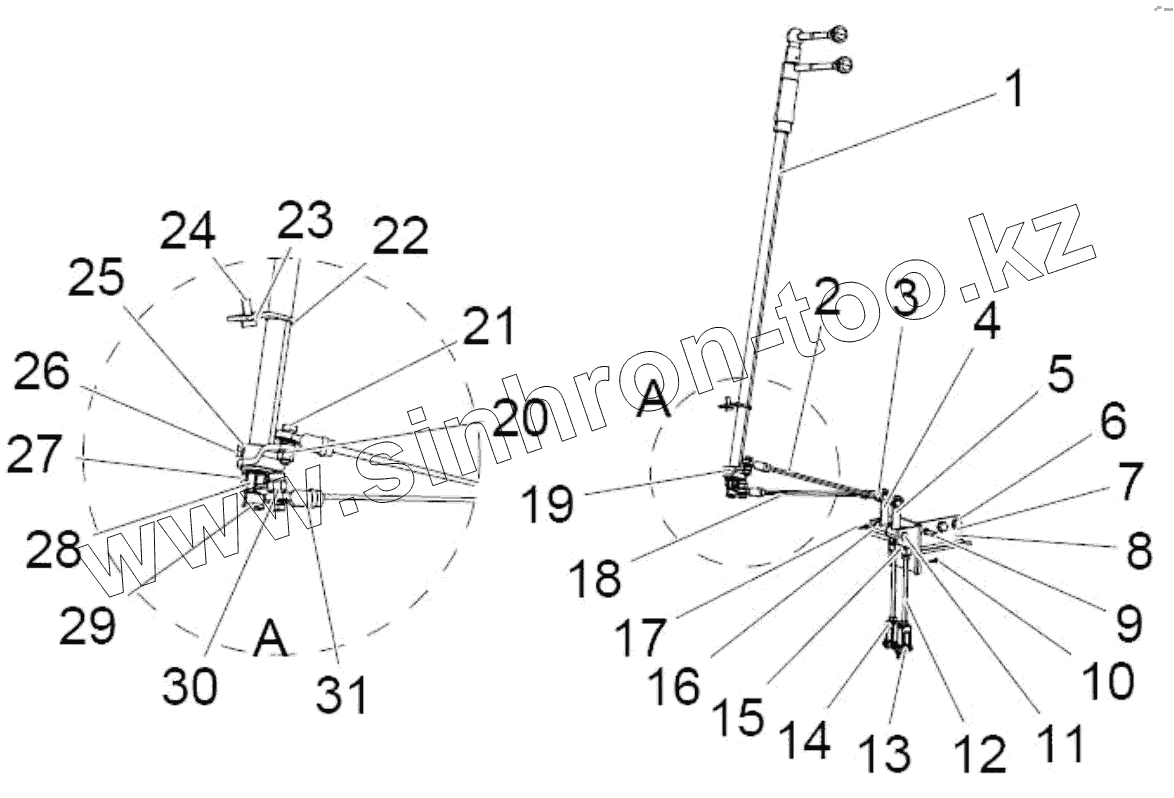

Каталог запасных частей к технике: SEM616B. Speed control system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z1B00700100 | Control lever | |
| 2 | Z1B00700300 | Speed control rod | |
| 3 | B050330807 | Nut | |
| 4 | Z1B00700200 | Reverse pendulum arm | |
| 5 | Z1B00700500 | Speed control arm | |
| 6 | B040911020 | Bolt | |
| 7 | B060411002 | Washer | |
| 8 | Z1B00700800 | Speed control bracket | |
| 9 | B080330828 | Pin mandrel | |
| 10 | B080210012 | pin | |
| 11 | B080340001 | Pin mandrel | |
| 12 | Z1B00701500 | Linkage | |
| 13 | Z1B00701400 | Pin mandrel | |
| 14 | Z110060010 | Yoke | |
| 15 | Z110060110 | Yoke | |
| 16 | B060411203 | Washer | |
| 17 | B080210418 | Cotter pin | |
| 18 | Z1B00700400 | Reverse rod | |
| 19 | Z320070190 | Speed ROCKER ARM | |
| 20 | B060410802 | Washer | |
| 21 | Z320070040 | Bearing bolt | |
| 22 | Z320070020 | Set plate | |
| 23 | B060460802 | Washer | |
| 24 | B040910820 | Bolt | |
| 25 | B060110602 | Lock washer | |
| 26 | B040910610 | Bolt | |
| 27 | B040910620 | Bolt | |
| 28 | Z1B00701000 | Rocker arm for reverse | |
| 29 | Z320070060 | Aim sleeve | |
| 30 | Z320070050 | Washer | |
| 31 | B120910808 | Bearing si8e |
