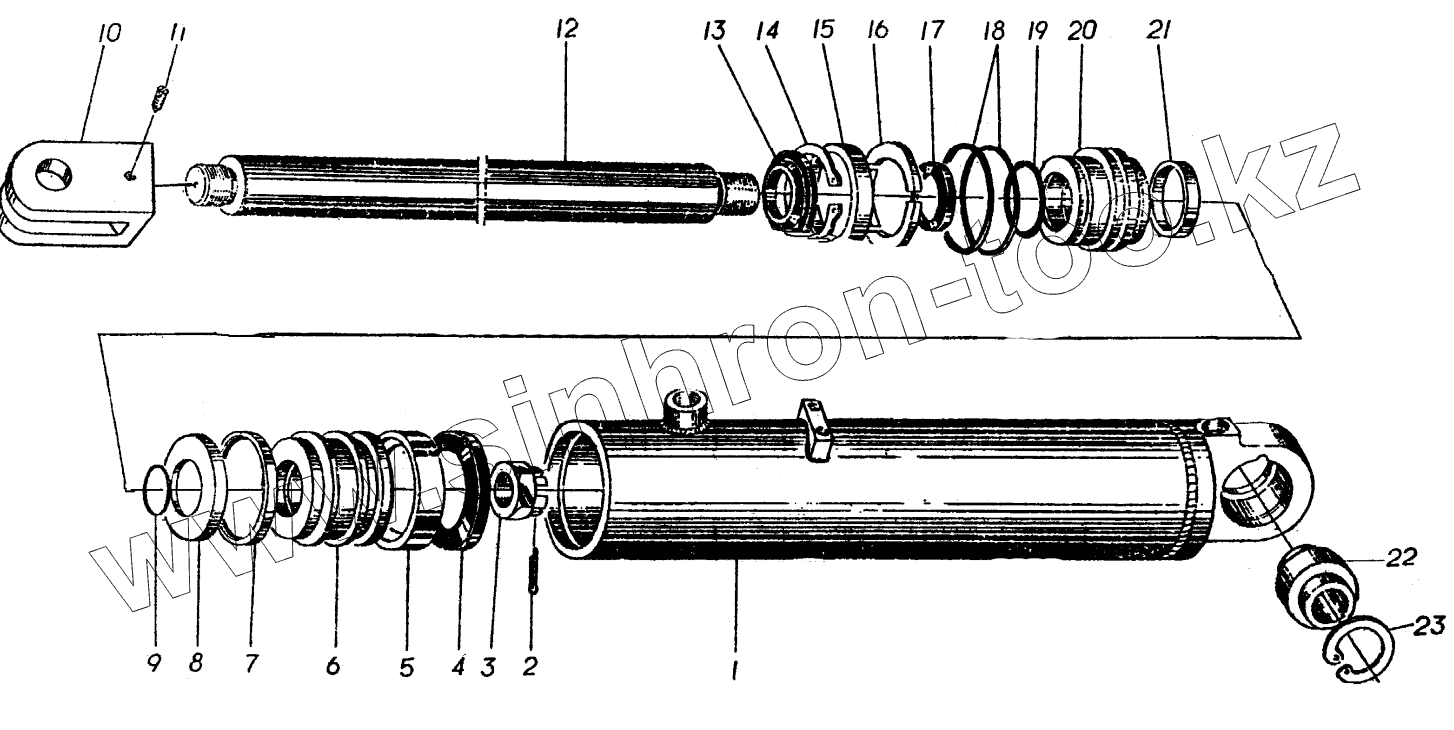

Каталог запасных частей к технике: SEM616B. Lifting cylinder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | W050200130 | Cylinder assembly | |
| 2 | Cotter pin | Cotter pin | |
| 3 | Nut | Nut | |
| 4 | Hole ax sealing ring | Hole ax sealing ring | |
| 5 | Guide sleeve | Guide sleeve | |
| 6 | W050200150 | Piston | |
| 7 | Glad-ring | Glad-ring | |
| 8 | Retaining cap | Retaining cap | |
| 9 | O-ring | O-ring | |
| 10 | Yoke | Yoke | |
| 11 | Threaded screw | Threaded screw | |
| 12 | W050200120 | Piston rod | |
| 13 | Dust seal | Dust seal | |
| 14 | Retainer | Retainer | |
| 15 | Snap ring | Snap ring | |
| 16 | W050200170 | Clip key | |
| 17 | Hole ax sealing ring | Hole ax sealing ring | |
| 18 | O-ring | O-ring | |
| 19 | Step-seal | Step-seal | |
| 20 | W050200140 | Guide collar | |
| 21 | Guide sleeve | Guide sleeve | |
| 22 | B120524028 | Joint bearing | |
| 23 | Snap ring for hole | Snap ring for hole |
