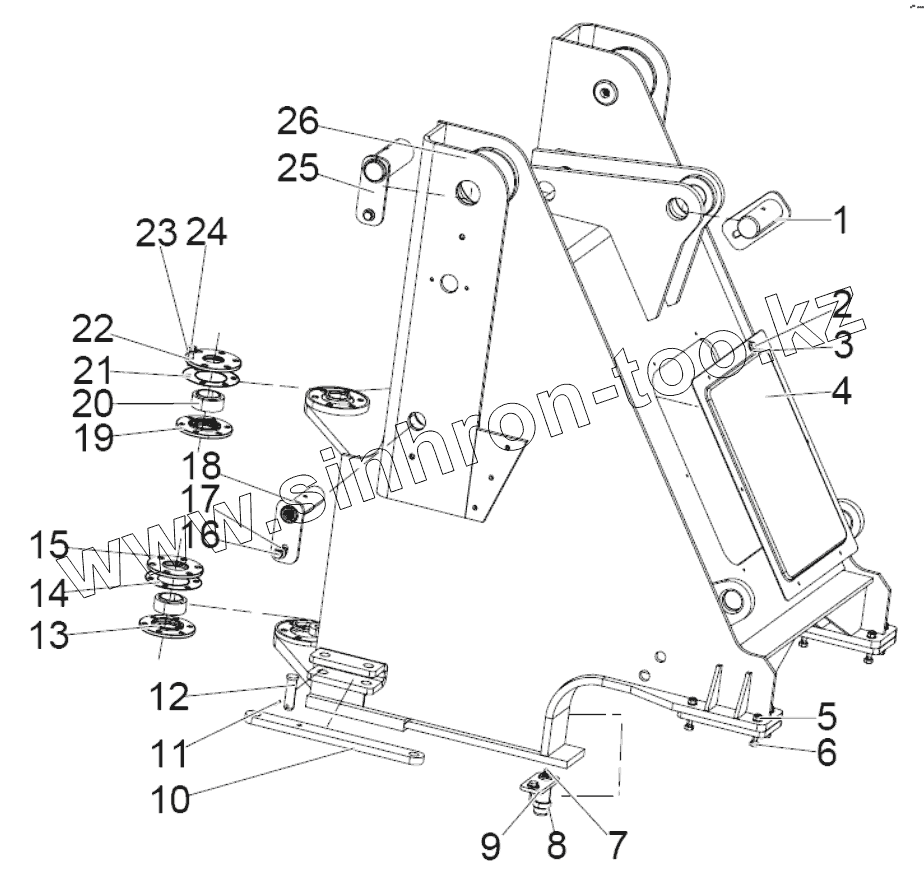

Каталог запасных частей к технике: SEM616B. Front frame
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z110020680 | Tipping bucket cylinder pin shaft | |
| 2 | B040910612 | Bolt | |
| 3 | B060410602 | Washer | |
| 4 | Z110020010 | The small coner | |
| 5 | B050211614 | Nylon lock nut | |
| 6 | B040811680 | Bolt | |
| 7 | B150211000 | Grease cup | |
| 8 | Z110020070 | Bearing pad | |
| 9 | Z110020650 | Steering cylinder hinge assembly | |
| 10 | Z1B002016 | Locking rod | |
| 11 | B080210016 | Pin | |
| 12 | Z310020020 | Pin | |
| 13 | Z110020030 | The lower hinged lower bearing cover | |
| 14 | Z110020050 | Hinged adjustment pad | |
| 15 | Z110020020 | The lower hinged on the bearing cap | |
| 16 | B040911225 | Bolt | |
| 17 | B060331203 | Washer | |
| 18 | Z110020560 | Lift cylinder pin shaft assembly | |
| 19 | Z110020110 | Hinged on the lower bearing cover | |
| 20 | B120524532 | Joint bearing | |
| 21 | Z110020140 | Hinged adjustment pad | |
| 22 | Z110020090 | Hinged on the bearing cap | |
| 23 | B060411002 | Washer | |
| 24 | B040911050 | Bolt | |
| 25 | Z110020790 | Boom pin shaft assembly | |
| 26 | Z1B00200100 | The front frame assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
