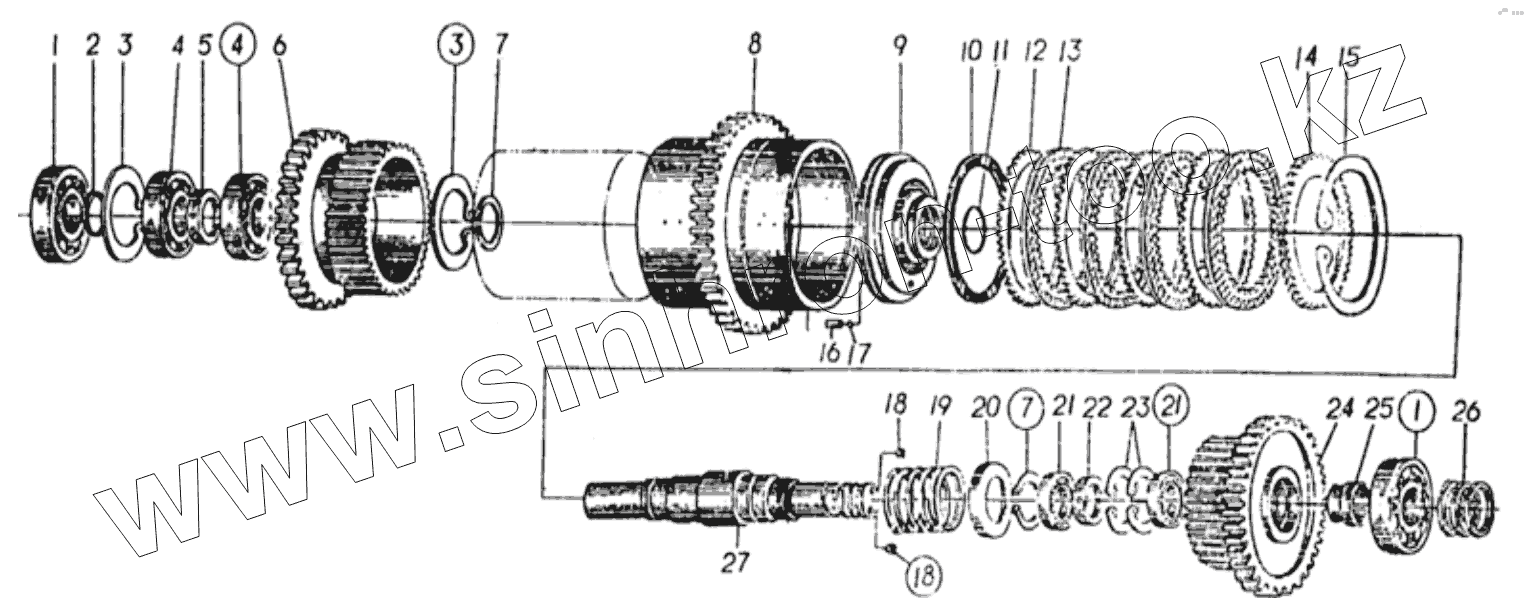

Каталог запасных частей к технике: SEM616B. Clutch Assembly
1
1
2
3
3
4
4
5
6
7
7
8
9
10
11
12
13
14
15
18
18
19
20
21
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B120134023 | Bearing | |
| 2 | W030100210 | Washer | |
| 3 | B120638000 | lock ring | |
| 4 | B121124018 | Bearing | |
| 5 | W030100301 | Retainer | |
| 6 | W030100310 | Gear | |
| 7 | B070255002 | Snap ring | |
| 8 | W030100800 | Clutch housing | |
| 9 | W020700270 | Piston | |
| 10 | W110015002 | Outer seal ring | |
| 11 | w110015001 | Inner oil ring | |
| 12 | W040100610 | Clutch driven disc | |
| 13 | W040100600 | Clutch drive disc | |
| 14 | W030100402 | Clutch piston plate | |
| 15 | B070250011 | Retainer | |
| 18 | W030102030 | plug | |
| 19 | W030100440 | Clutch spring | |
| 20 | W030102040 | Spring retainer | |
| 21 | B120114012 | Bearing | |
| 22 | W030102050 | Retainer | |
| 23 | B070156803 | Snap ring | |
| 24 | W030100730 | Gear | |
| 25 | W030102060 | Spacer sleeve | |
| 26 | Z510210240 | Seal ring | |
| 27 | W030100720 | Clutch shaft |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
