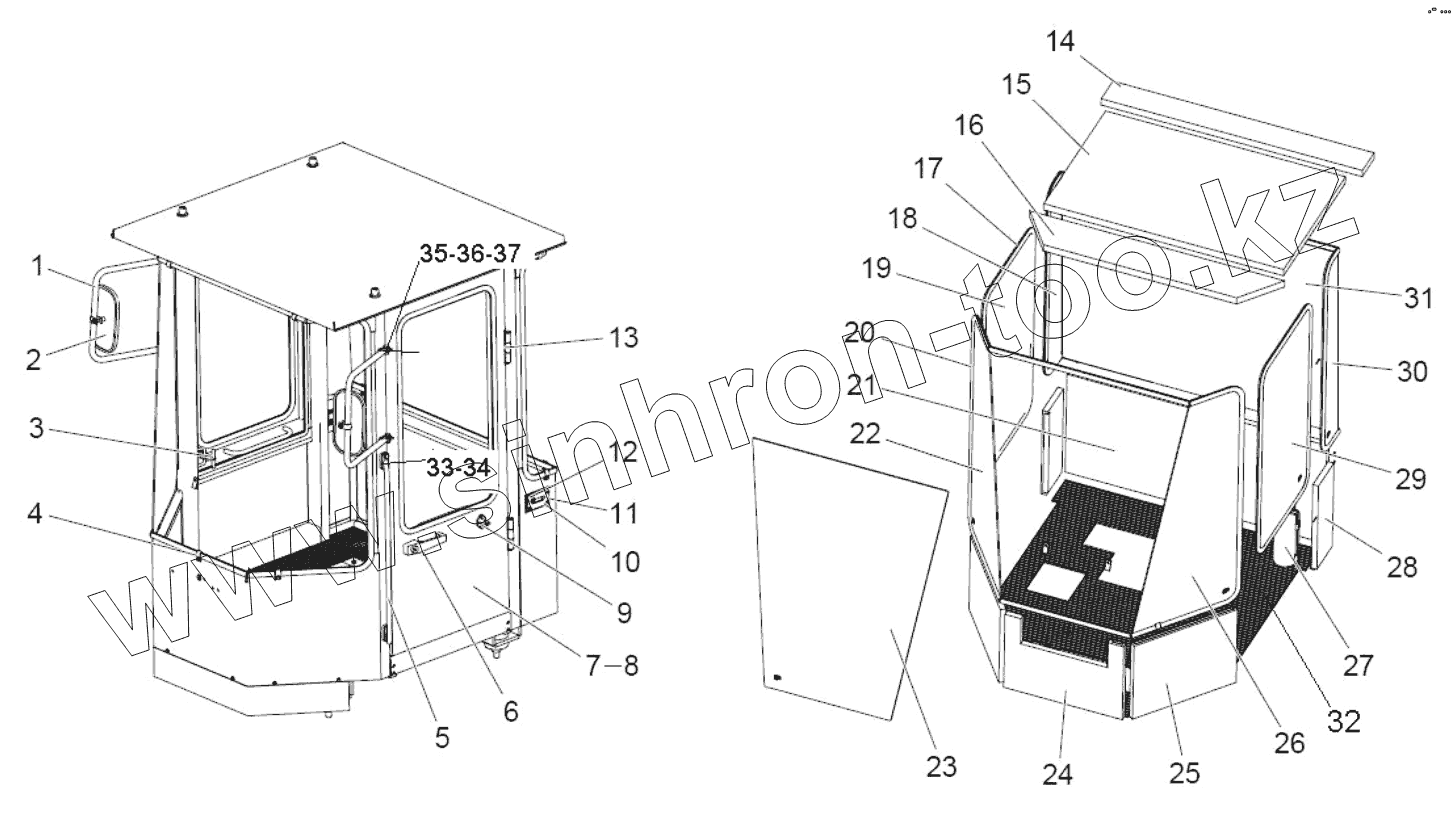

Каталог запасных частей к технике: SEM616B. Cab (sale)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z1B00403400 | Rear view mirror bracket | |
| 2 | W110008001 | MIrror | |
| 3 | Z1200902000 | Side door hook assembly | |
| 4 | Z320040160 | clamp | |
| 5 | Z1B00405900 | Handrails group | |
| 6 | W110031060 | Lock | |
| 7 | NZ1B0040600010 | Left hand door group | |
| 8 | NZ1B0040610010 | Right hangd door group | |
| 9 | W110022620 | Lock | |
| 10 | Z550043570 | Cover plate | |
| 11 | Z550043580 | Shock absorber | |
| 12 | Z330041290 | Shock absorber | |
| 13 | Z330041170 | hinge shaft | |
| 14 | Z1B00407400 | Rear sponge | |
| 15 | Z1B00407300 | Ceiling sponge | |
| 16 | Z1B00407200 | Front sponge | |
| 17 | C33192000 | Sealing | |
| 18 | Z1B00406800 | Right rear side galss | |
| 19 | Z1B00406400 | Right door upper glass | |
| 20 | C33199000 | Sealing | |
| 21 | Z1B00407700 | Rear sponge | |
| 22 | Z1B004118 | Right front galss | |
| 23 | Z1B004116 | Front glass | |
| 24 | Z1B004121 | Front sponge | |
| 25 | Z1B004120 | Front side sponge | |
| 26 | Z1B004117 | Left front galss | |
| 27 | W110022310 | Fire extinguisher | |
| 28 | Z1B00407800 | Rear side sponge | |
| 29 | Z1B00406200 | Left door upper glass | |
| 30 | Z1B00406700 | Left rear side galss | |
| 31 | Z1B00406600 | Rear glass | |
| 32 | Z1B00409300 | Rubber floor | |
| 33 | B040911016 | Bolt | |
| 34 | B060111003 | Lock washer | |
| 35 | B040911025 | Bolt | |
| 36 | B060411002 | Washer | |
| 37 | B050331008 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
