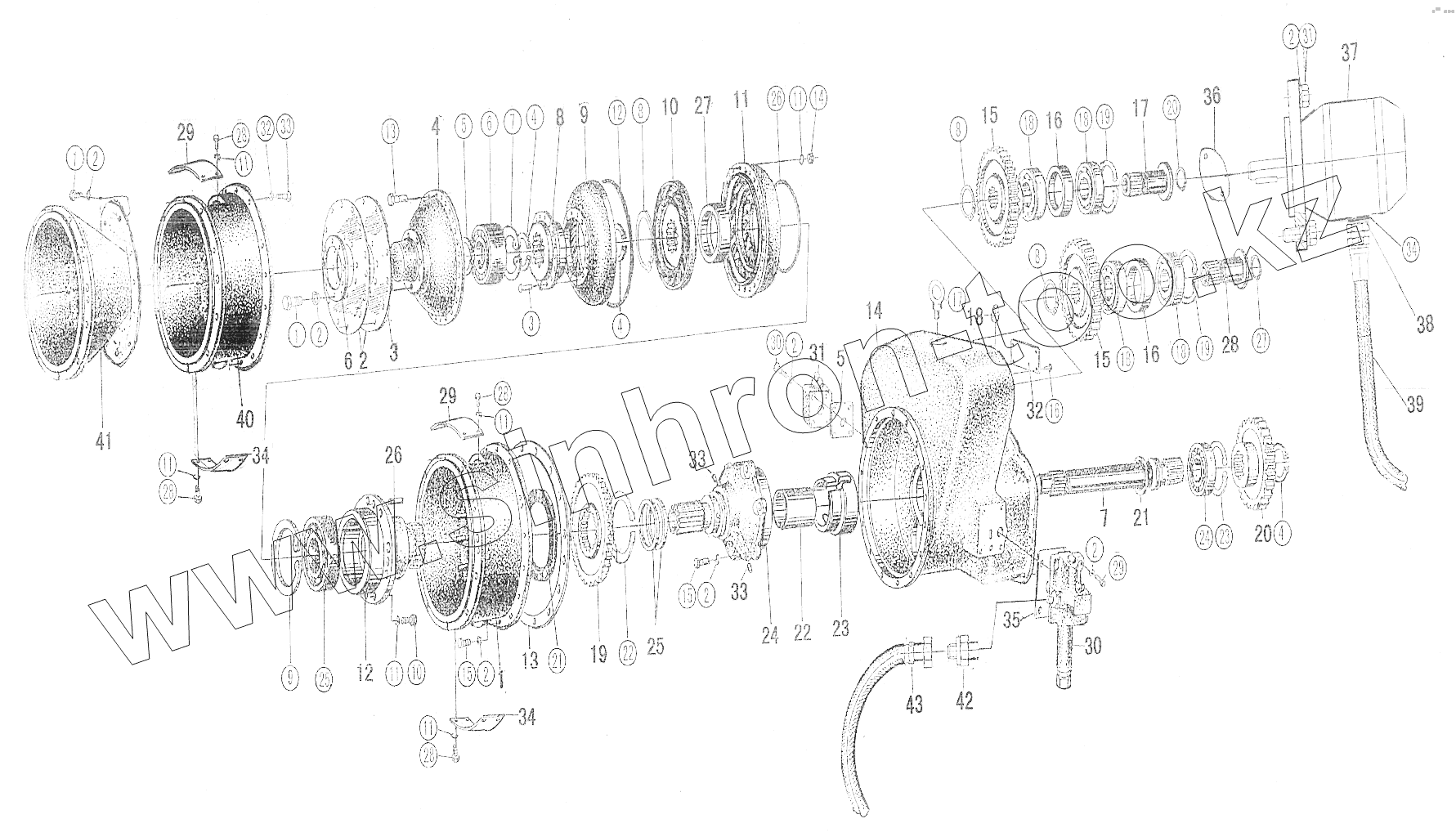

Каталог запасных частей к технике: SEM616B. Torque converter assembly
1
1
1
2
2
2
2
2
2
2
2
4
4
4
4
5
5
6
6
7
7
9
9
10
10
11
11
11
11
11
11
11
12
12
W020100610
W020100610
13
13
14
14
15
15
15
15
16
16
16
17
17
19
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
28
28
28
29
29
29
W020100630
W020100630
W020100630
30
30
31
31
32
32
34
34
34
35
36
37
38
39
40
41
42
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | W030120100 | Case | |
| 2 | W020700210 | Elastic plate | |
| 4 | W020700110 | Impeller shell | |
| 5 | W030123600 | Paper gasket | |
| 6 | W030120500 | Filler | |
| 7 | W020700150 | Main shaft | |
| 9 | W020700240 | Turbine | |
| 10 | W020700080 | Stator | |
| 11 | W020700070 | Impeller | |
| 12 | W030121200 | Impeller hub | |
| W020100610 | W020100610 | Impeller assembly | |
| 13 | W030121300 | Gasket | |
| 14 | W020700230 | Housing | |
| 15 | W030121500 | Driven gear | |
| 16 | W030121600 | Washer | |
| 17 | W030121700 | Driving shaft | |
| 19 | W030121900 | Driving gear | |
| 20 | W020700200 | Driving gear | |
| 21 | W020100221 | Sealing ring | |
| 22 | W020700160 | Sleeve | |
| 23 | W030122300 | Sleeve | |
| 24 | W020700050 | ) Stator hub | |
| 25 | Z200020280 | Seal ring | |
| 26 | W030122600 | Pin | |
| 27 | W030122700 | Setting sleeve | |
| 28 | W030122800 | Driving shaft | |
| 29 | W020100620 | Cover | |
| W020100630 | W020100630 | Lang cover | |
| 30 | W030123000 | Safety valve assembly | |
| 31 | W030123100 | Outer valve assembly | |
| 32 | W030123200 | Name plate | |
| 34 | W030123400 | Cover | |
| 35 | W030123500 | Paper gasket | |
| 36 | W030123700 | Gasket | |
| 37 | W030123800 | Gear box | |
| 38 | W030123900 | Adapter | |
| 39 | W030125100 | Hose as. | |
| 40 | W030124100 | Joint case | |
| 41 | W030124200 | Joint plate | |
| 42 | W030124300 | Adapter | |
| 1.1 | B040911020 | Bolt | |
| 2.1 | B060111003 | Lock washer | |
| 4.1 | B070214002 | Snap ring | |
| 5.1 | B070113001 | Snap ring | |
| 6.1 | W110002670 | Needle roller bearing | |
| 7.1 | B070155502 | Snap ring | |
| 8.1 | B070155002 | Snap ring | |
| 9.1 | B070250001 | Snap ring | |
| 10.1 | B040910820 | Bolt | |
| 11.1 | B060110802 | Lock washer | |
| 12.1 | B160130294 | O-ring | |
| 13.1 | B040910835 | Bolt | |
| 14.1 | B050360807 | Nut | |
| 15.1 | B040911035 | Bolt | |
| 16.1 | B090110205 | Rivet | |
| 17.1 | B010921020 | Screw | |
| 18.1 | B120115016 | Bearing | |
| 19.1 | B070158003 | Snap ring | |
| 20.1 | B070152001 | Snap ring | |
| 21.1 | W110016140 | Oil seal | |
| 22.1 | B070250002 | Snap ring | |
| 23.1 | B070159003 | Snap ring | |
| 24.1 | B120134023 | Bearing | |
| 25.1 | B120126022 | Bearing | |
| 26.1 | B160131281 | O ring | |
| 27.1 | B070113001 | Snap ring | |
| 28.1 | B040910810 | Bolt | |
| 29.1 | B040911025 | Bolt | |
| 30.1 | B040811060 | Bolt | |
| 31.1 | B040911030 | Bolt | |
| 32.1 | B060111203 | Lock washer | |
| 33.1 | B040911235 | Bolt | |
| 34.1 | W030124500 | Washer |
