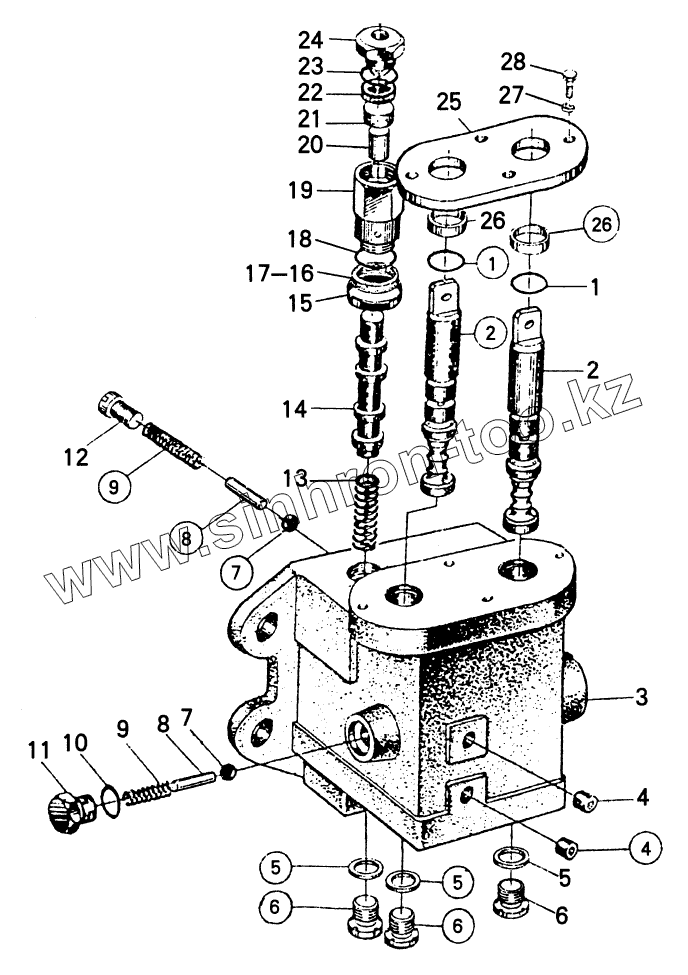

Каталог запасных частей к технике: SDLG LGB680. TRANSMISSION CONTROL VALVE
1
1
2
2
3
4
4
5
5
5
6
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB1235-1976 | O-RING | |
| 2 | VALVESTEM | VALVE STEM | |
| 3 | VALVEBLOCK | VALVE BLOCK | |
| 4 | PLUG | PLUG | |
| 5 | WASHER | WASHER | |
| 6 | PLUG | PLUG | |
| 7 | GB/T308-1989 | STEEL BALL | |
| 8 | FLXEDRODE | FLXED RODE | |
| 9 | SPRING | SPRING | |
| 10 | O-RING | O-RING | |
| 11 | PLUG | PLUG | |
| 12 | PLUG | PLUG | |
| 13 | SPRING | SPRING | |
| 14 | VALVESTEM | VALVE STEM | |
| 15 | SQUARESEAL | SQUARE SEAL | |
| 16 | RUBBERRING | RUBBER RING | |
| 17 | DUSTSHIELD | DUST SHIELD | |
| 18 | GB1235-1976 | O-RING | |
| 19 | VALVEBLOCK | VALVE BLOCK | |
| 20 | PUSHROP | PUSH ROP | |
| 21 | PLUG | PLUG | |
| 22 | RINGSEAL | PISTON RING SEAL | |
| 23 | GB1235-1976 | O-RING | |
| 24 | CONNECTOR | CONNECTOR | |
| 26 | SLEEVE | SLEEVE | |
| 27 | GB/T97.1-2002 | WASHER 6 | |
| 28 | GB/T5783-2000 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
