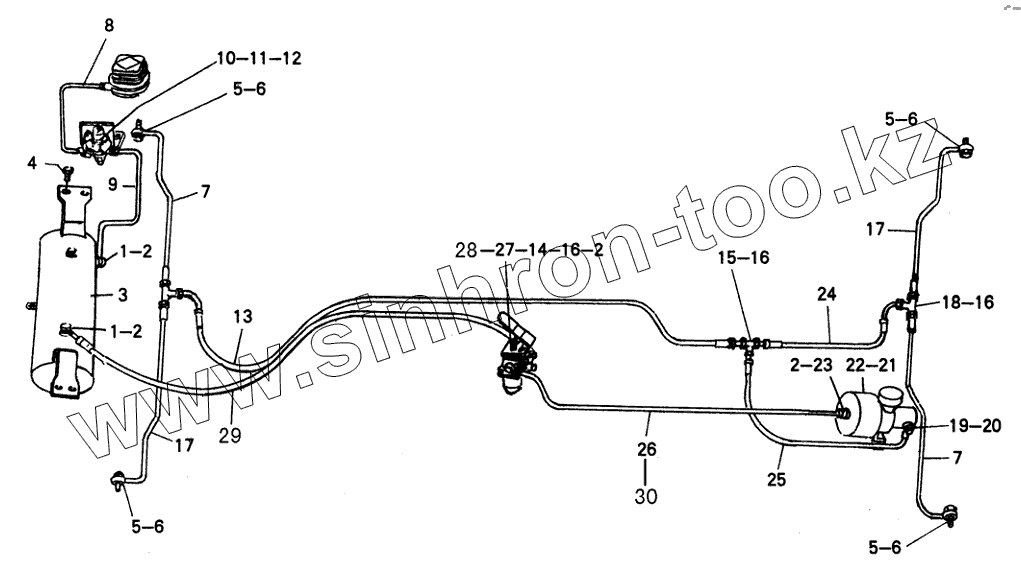

Каталог запасных частей к технике: SDLG LGB680. SERVICE BRAKE SYSTEM
1
1
2
2
2
2
3
4
5
5
5
5
6
6
6
6
7
7
8
9
10
11
12
13
14
15
16
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2901000004 | BOLT | |
| 2 | 2901000006 | WASHER | |
| 3 | 2622000054 | AIR RESERVOIR | |
| 4 | 4011000560 | BOLT | |
| 5 | 2922000003 | CONNECTOR | |
| 6 | 2922000002 | WASHER | |
| 7 | 2622000060 | TUBE OF BREAR AXLE | |
| 8 | 4120000750 | METAL TUBE | |
| 9 | 4041000921 | TUBE LGB149-204090 | |
| 10 | 4011000461 | BOLT | |
| 11 | 2601000146 | HOLDER FOR AIR RESERVOIR | |
| 12 | ST-50G | AIR DRYER ST-50G | |
| 13 | 4041001013 | TUBE LGB153-202280 | |
| 14 | 4030000055 | PLUG JB1000-M22x1.5-35 | |
| 15 | 2922000405 | TEE OF THE OIL LINE | |
| 16 | 4011000455 | BOLT | |
| 17 | 2622000062 | TUBE OF BREAR AXLE | |
| 18 | 2922000013 | TEE OF THE OIL LINE | |
| 19 | 2922000016 | CONNECTOR | |
| 20 | 2922000017 | WASHER | |
| 21 | 4011000488 | BOLT | |
| 22 | 4120000090 | BOOSTER | |
| 23 | 2901000007 | CONNECTOR | |
| 24 | 4041001014 | TUBE LGB152-102050 | |
| 25 | 4041000748 | TUBE LGB152-002140 | |
| 26 | 4041001016 | TUBE LGB149-004068 | |
| 27 | 4120001795 | BRAKE CONTROL VALVE LY60F | |
| 28 | 4130000521 | SWITCH OF BRAKE LIGHT | |
| 29 | 4041001026 | TUBE LGB149-004335 | |
| 30 | 2901000005 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
