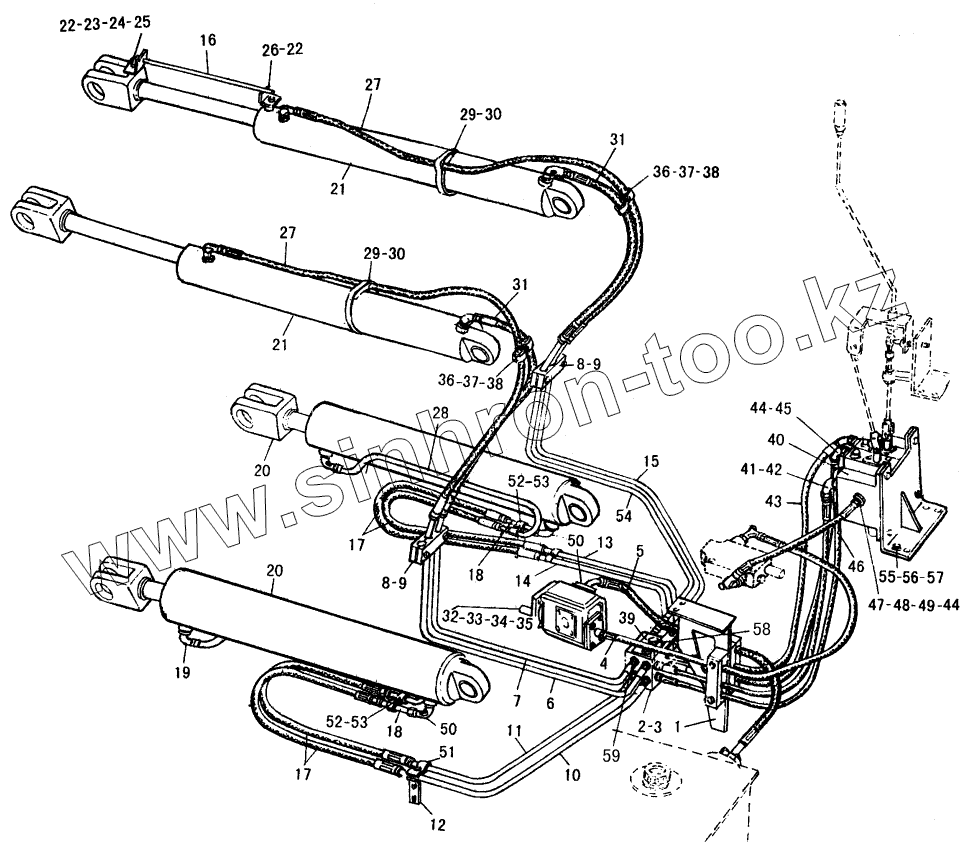

Каталог запасных частей к технике: SDLG LGB680. LOADER HYDRAULIC SYSTEM
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
17
18
18
19
20
20
21
21
22
22
23
24
25
26
27
27
28
29
29
30
30
31
31
32
33
34
35
36
36
37
37
38
38
39
40
41
42
43
44
44
45
46
47
48
49
50
50
51
52
52
53
53
54
55
56
57
58
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2614000132 | HOSE CLAMP | |
| 2 | 2614000139 | OIL BOARO | |
| 3 | 4011000532 | BOLT GB16674-M10X110EpZn-8. 8 | |
| 4 | 2611000102 | DRAIN OIL TUBE PUMP | |
| 5 | 4041000992 | TUBELGB162-112132 | |
| 6 | 2614000142 | LISMALL CHAMBER TUBE OF THE TILT CYLINDER | |
| 7 | 2614000144 | LIВIGCHAMBER TUBE OF THE TILT CYLINDER | |
| 8 | 2614000146 | CLIP | |
| 9 | 4011000164 | BOLT | |
| 10 | 2614000147 | LIВIGCHAMBER TUBE OF THE LIFT CYLINDER | |
| 11 | 2614000149 | L1SMALLCHAMBER TUBE OF THE LIFT CYLINDER | |
| 12 | 2614000151 | BRACKET | |
| 13 | 2614000120 | RIВIGCHAMBER TUBE OF THE LIFT CYLINDER | |
| 14 | 2614000118 | RISMALLCHAMBER TUBE OF tHE LIFT CULINDER | |
| 15 | 2614000114 | RISMALLCHAMBEROF THE TILT CYLINDER | |
| 16 | 2614000152 | PIATE | |
| 17 | 4041000987 | TUBE LGB127-206110 | |
| 18 | 2614000111 | CONNECTOR | |
| 19 | 2614000106 | CONNECTOR | |
| 20 | 4120000955 | LIFT CYLINDER HSGL-90X50X742-1080 | |
| 21 | 4120000956 | TILT CYLINDER HSGL-70X45X705-1055 | |
| 22 | 4011000447 | BOLT | |
| 23 | 4013000007 | NUT | |
| 24 | 4015000162 | Washer | |
| 25 | 2914000002 | CLAMPING PLATE | |
| 26 | 2914000004 | CONDUIT OF INDICATING ROD | |
| 27 | 4041000986 | TUBE LGB127-406190 | |
| 28 | 2614000108 | CONNECTOR | |
| 29 | 2613000146 | RUBBER CLIP | |
| 30 | 4017000005 | CLAMP JB8870-d120 | |
| 31 | 4041000985 | TUBE LGB127-406110 | |
| 32 | 4120000845 | GERRPUMP CBGJA2063 | |
| 33 | 4012000003 | DOUBLE-SCREW BOLT | |
| 34 | 4015000168 | WASHER | |
| 35 | 4013000011 | NUT | |
| 36 | 2614000105 | RUBBER CLIP | |
| 37 | 4011000455 | BOLT | |
| 38 | 4013000033 | NUT | |
| 39 | 2614000102 | BRACKET | |
| 40 | 4120000116 | LOADER VALVE | |
| 41 | 2613000112 | CONNECTOR | |
| 42 | 4041000990 | TUBE LGB128-410130 | |
| 43 | 4041000989 | TUBE LGB128-410140 | |
| 44 | 4041000582 | CONNECTOR | |
| 45 | 4041000988 | TUBE LGB128-410125 | |
| 46 | 4041000991 | TUBE LGB127-410125 | |
| 47 | 2614000125 | TUBE | |
| 48 | 4041000796 | CONNECTOR LGB120-02628 | |
| 49 | 4041000779 | O-RING | |
| 50 | 4041000056 | FLANGE | |
| 51 | 2614000113 | CLIP | |
| 52 | 2614000110 | CLIP | |
| 53 | 4011000161 | BOLT | |
| 54 | 2614000116 | RIВIGCHAMBER TUBE OF THE TILT CYLINDER | |
| 55 | 4011000479 | BOLT | |
| 56 | 4011000165 | BOLT GB16674-M12X50EpZn-8.8 | |
| 57 | 2614000122 | BRACKET | |
| 58 | 4011000474 | BOLT | |
| 59 | 4030000242 | O-RING GB3452. 1-12.5X1.80G |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
