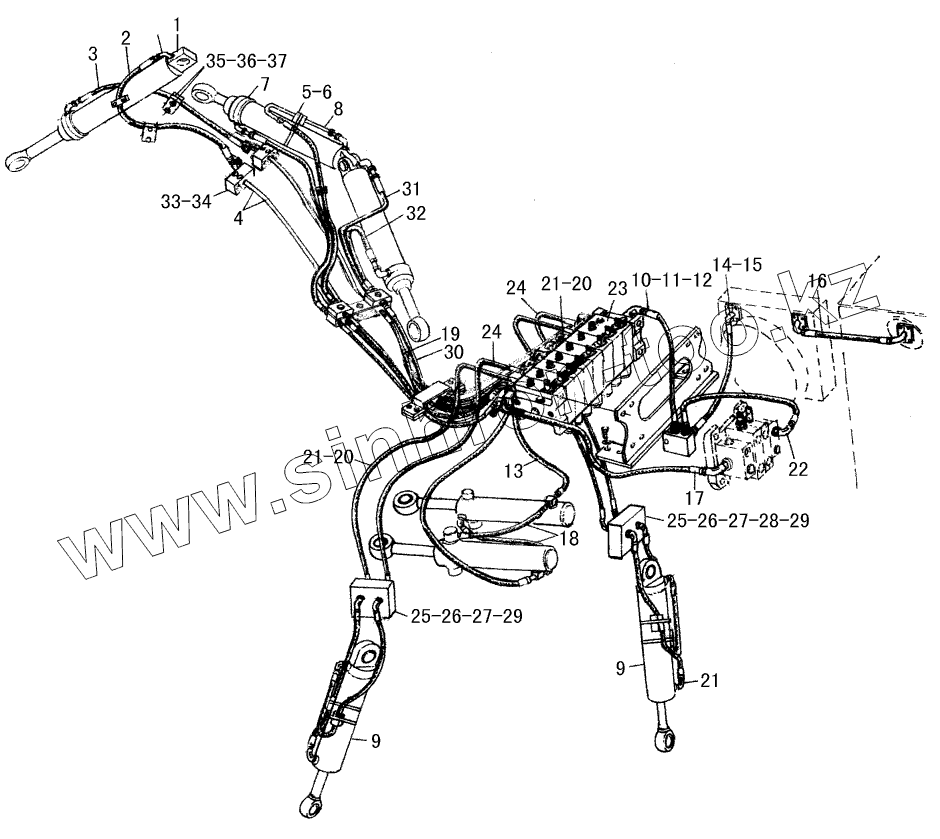

Каталог запасных частей к технике: SDLG LGB680. BACKHOE HYDRAULIC SYSTEM (I)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
21
22
23
24
24
25
25
26
26
27
27
28
29
29
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120000931 | B0CKH0E CYLINDERHSGF-100X55X709-1096 | |
| 2 | 4041000973 | TUBELGB127-410132 | |
| 3 | 4041000972 | TUBE | |
| 4 | 2613000139 | OILPIPE ASSY | |
| 5 | 2613000109 | CLIP | |
| 6 | 4017000003 | CLAMP d170 | |
| 7 | 4120000933 | CROWD CYLINDERHSGF-125X63X623-979 | |
| 8 | 2613000110 | C0NNECT0RLGB120-03030 | |
| 9 | 4120000934 | STABLZER CYLINDER | |
| 10 | 4041000582 | CONNECTOR | |
| 11 | 2613000114 | CONNECTOR | |
| 12 | 4041000980 | TUBELGB128-012090 | |
| 13 | 2613000148 | INLET TUBE B0T0M END OF R SWING CYLINDER | |
| 14 | 2613000120 | OIL BOARD | |
| 15 | 2616000111 | INLET TUBE FROM RADIATOR | |
| 16 | 4041000984 | TUBELGB162-012090 | |
| 17 | 4041000982 | TUBELGB128-010058 | |
| 18 | 4041000967 | TUBELGB127-403053 | |
| 19 | 4041000977 | TUBELGB127-410198 | |
| 20 | 2613000113 | CONNECTOR | |
| 21 | 4041000978 | TUBELGB128-003044 | |
| 22 | 4041000106 | C0NNECT0RLGB120-03030 | |
| 23 | 4120001742 | BACKHOE VALVE | |
| 24 | 4041000979 | TUBELGB128-003042 | |
| 25 | 2613000128 | CONNECTOR | |
| 26 | 4041000969 | TUBELGB128-403108 | |
| 27 | 4120001324 | HYDRANLK LOCK | |
| 28 | 4011000481 | BOLT | |
| 29 | 4041000968 | TUBELGB128-403091 | |
| 30 | 4041000976 | TUBELGB128-410210 | |
| 31 | 4041000974 | TUBELGB128-410098 | |
| 32 | 4041000975 | TUBELGB127-410092 | |
| 33 | 2613000134 | HOSE CLAMP | |
| 34 | 4011000164 | BOLT | |
| 35 | 2613000108 | SET PLATE | |
| 36 | 2613000107 | RYBBER CLIP | |
| 37 | 4011003000 | BOLT GB16674-M8X55EpZn-8.8 | |
| 38 | 4011000461 | BOLT | |
| 39 | 2613000144 | OILPIPE ASSY | |
| 40 | 2613000137 | HOSE CLAMP | |
| 41 | 2613000136 | SET PLATE | |
| 42 | 2613000138 | HOSE CLAMP | |
| 43 | 4011000476 | BOLT | |
| 44 | 2613000135 | CONNECTOR | |
| 45 | 2613000132 | RYBBER CLIP | |
| 46 | 2613000133 | SET PLATE | |
| 47 | 4041000983 | TUBELGB128-410175 | |
| 48 | 4041000970 | TUBELGB127-410155 | |
| 49 | 4120000935 | CYLINDERHSGF-125X63X849-1208 | |
| 50 | 4120000936 | SWING CYLINDERHSGL-90X50X250-258 | |
| 51 | 2613000129 | SET PLATE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
