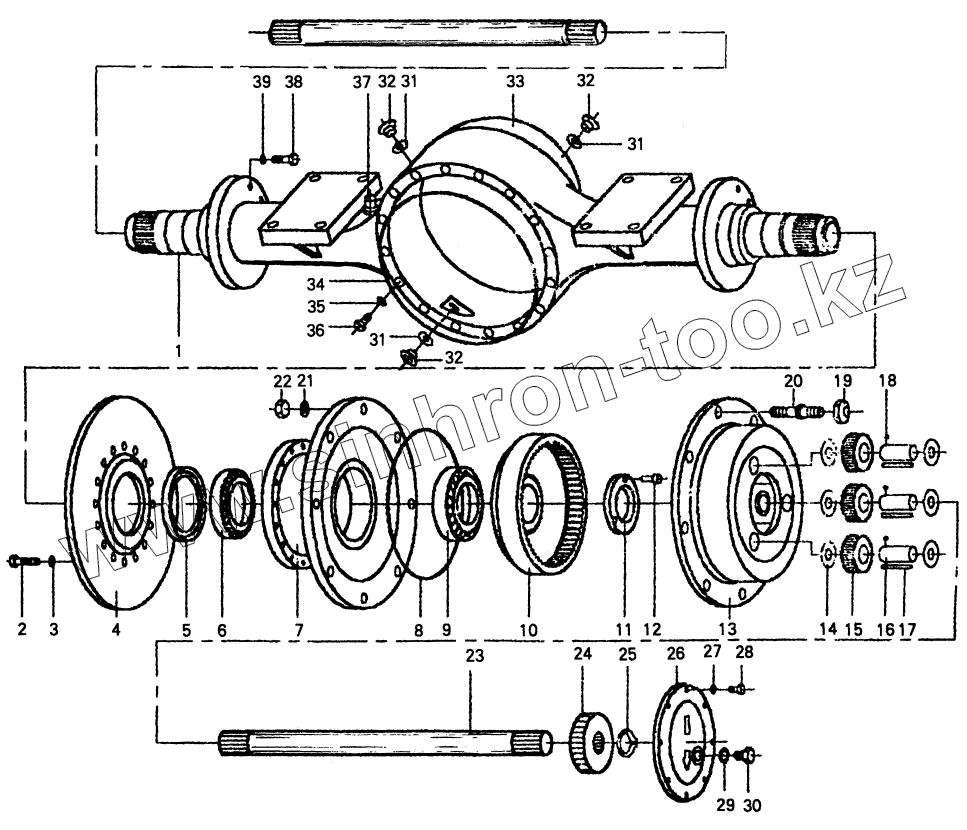

Каталог запасных частей к технике: SDLG LGB680. AXLE ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
32
32
32
33
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | WZ30.25.01 | AXLE HOUSING | |
| 2 | GB5785-86 | BOLT | |
| 3 | GB93-87 | WASHER | |
| 4 | ZL15II03.04.017 | BRAKE PLATE | |
| 5 | HG4-692-67 | OIL SEA | |
| 6 | GB297-84 | BEARING | |
| 7 | ZL15II03.04.014 | HUB WHEAL | |
| 8 | ZL10.6.3-1ЗА | O-RING | |
| 9 | GB297-84 | BEARING | |
| 10 | ZL10.6.3-4 | AXLE RING GEAR | |
| 11 | ZL10.6.3-8 | ROUND NUT | |
| 12 | GB70-85 | SCREW | |
| 13 | ZL10.6.3-3 | PLANET PINION CARRIER | |
| 14 | ZL10.6.3-5 | RING SNAP | |
| 15 | ZL10.6.3-7 | PLANET GEAR | |
| 16 | ZL10.6.3-6 | PLANET PINION SHAFT | |
| 17 | GB309-84 | ROLLER 3X29.8 | |
| 18 | GB308-84 | STEEL BALL ф 5 | |
| 19 | ZL10.6.3-1 | RIM NUT | |
| 20 | ZL10.6.3-2 | RIM BOLT | |
| 21 | GB93-87 | WASHER | |
| 22 | GB6170-85 | NUT M18X1.5 | |
| 23 | ZL15II03.04.012 | DIFFERENTIAL AXLE | |
| 24 | ZL10.6.3-9 | GEAR-SUN | |
| 25 | GB894.1-86 | RING SNAP | |
| 26 | COVER | COVER | |
| 27 | GB93-87 | WASHER | |
| 28 | GB5782-86 | BOLT M8X20 | |
| 29 | JB982-77 | WASHER | |
| 30 | ZL10.4АВ-69 | PLUG M20X1.5 | |
| 31 | JB982-77 | WASHER | |
| 32 | ZL15E2-10 | PLUG M20X1.5 | |
| 33 | ZL15II03.00.017 | FRONT AXLE COVER | |
| 34 | ZL15II03.00.016 | REAR AXLE COVER | |
| 35 | ZL10.6-16А | O-RING | |
| 36 | GB93-87 | WASHER | |
| 37 | GB5785-86 | BOLT | |
| 38 | ZL15F-2401070 | BREATHER PIPE ASSY | |
| 39 | GB5785-86 | BOLT | |
| 40 | GB93-87 | WASHER |
