Каталог запасных частей к технике: SDLG LG969N. Out put

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
9
10
11
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
77
78
79
80
81
82
83

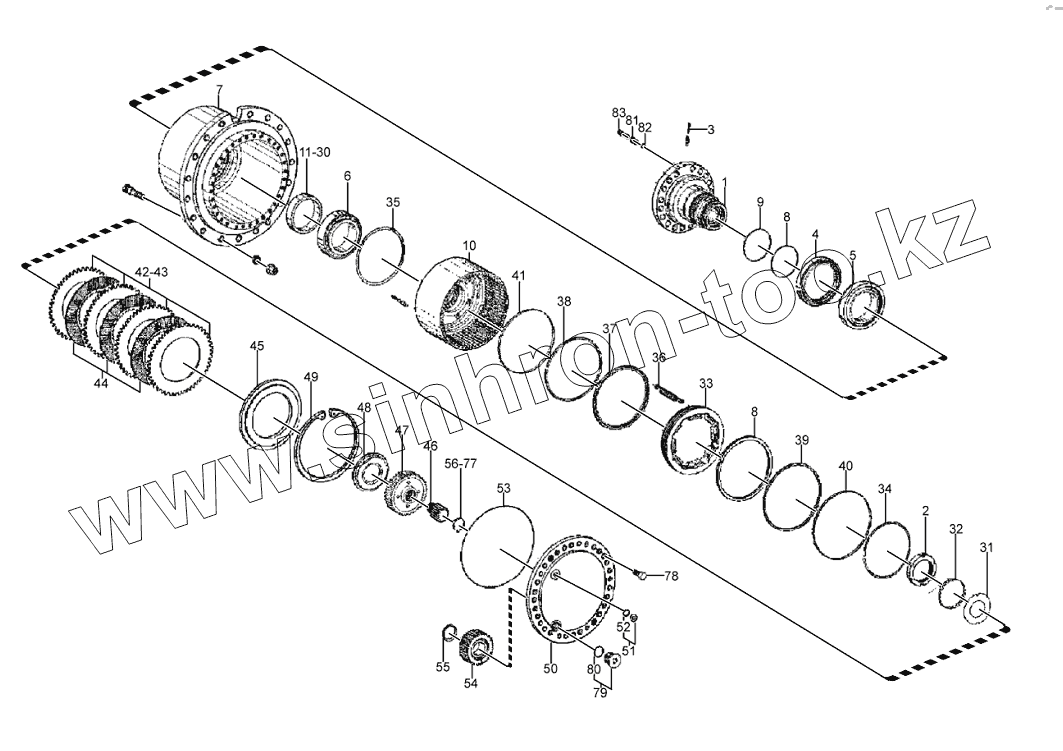

Позиция на иллюстрации Заводской номер детали Название детали
1 4110000045006 HUB CARRIER 4474.205.037
2 7200001945 SPLINED NUT 0737.503.053 IN 0737 503 052 CK45
3 7200001946 SEAL PLUG 0631405029
4 4110000045007 CASSETTE RING 0734.309.422
5 7200001948 ROLLER BEARING 0750117200
6 4110000045008 TA.ROLLER BEARING 0750.117.815
7 7200001950 HUB 4474.305.230 IN 4474 305 228 GGG-40
8 7200001951 O-RING 0634313369
9 7200001952 O-RING 0634313049
10 7200001953 CARRIAGE 4474205070
11 7200001955 WASHER 0730162297
12 4110000045009 WASHER 0730.162.298
13 4110000045010 WASHER 0730.162.299
14 4110000045011 WASHER 0730.162.300
15 4110000045012 WASHER 0730.162.301
16 4110000045013 WASHER 0730.162.302
17 4110000045014 WASHER 0730.162.303
18 4110000045015 WASHER 0730.162.304
19 4110000045016 WASHER 0730.162.305
20 4110000045017 WASHER 0730.162.306
21 4110000045018 WASHER 0730.162.307
22 4110000045019 WASHER 0730.162.308
23 4110000045020 WASHER 0730.162.309
24 4110000045021 WASHER 0730.162.310
25 4110000045022 WASHER 0730.162.311
26 4110000045023 WASHER 0730.162.779
27 4110000045024 WASHER 0730.162.780
28 4110000045025 WASHER 0730.162.781
29 4110000045026 WASHER 0730.162.782
30 4110000045027 WASHER 0730.162.783
31 4110000045028 WASHER 4474.305.190
32 7200001957 LOCKING RING 4474306022
33 7200001958 PISTON 4474307085
34 7200001844 Snap ring
35 7200001960 Snap ring
36 7200001961 EXTENSION SPRING 0732020084
37 7200001962 U-ring
38 7200001848 SEALING RING 0734317196
39 7200001849 SEALING RING 0734317197
40 7200001850 PISTON RING 0501312493
41 7200001851 PISTON RING 0501312494
42 7200001852 OUTER CLUTCH DISC 4474304049
43 4110000045032 OUTER CLUTCH DISC 4474.304.048
44 4110000047001 Friction disc
45 7200001855 WASHER 4474305011
46 4110000045033 SUN GEAR SHAFT 4474.305.168
47 7200001972 DISC CARRIER 4474305316
48 7200001974 CIRCLE 4474305332
49 7200001973 CLASP 0630502190
50 4110000045073 Planet carrier
51 7200001863 PLUG 0636302003
52 7200001864 O-RING 0634306523
53 7200001865 O-RING 0634.304.100
54 4110000045074 Planet gear
55 4110000045076 Retaining ring
56 7200001868 THRUST WASHER 0730106148
57 4110000045036 THRUST WASHER 0730.106.592
58 4110000045037 THRUST WASHER 0730.106.975
59 4110000045038 THRUST WASHER 0730.106.976
60 4110000045039 THRUST WASHER 0730.107.103
61 4110000045040 THRUST WASHER 0730.107.102
62 4110000045041 THRUST WASHER 0730.107.101
63 4110000045042 THRUST WASHER 0730.107.100
64 4110000045043 THRUST WASHER 0730.107.99
65 4110000045044 THRUST WASHER 0730.107.582
66 4110000045045 THRUST WASHER 0730.107.583
67 4110000045046 THRUST WASHER 0730.107.584
68 4110000045047 THRUST WASHER 0730.108.167
69 4110000045048 THRUST WASHER 0730.108.168
70 4110000045049 THRUST WASHER 0730.108.169
71 4110000045050 THRUST WASHER 0730.108.170
72 4110000045051 THRUST WASHER 0730.107.513
73 4110000045052 THRUST WASHER 0730.108.304
74 4110000045053 THRUST WASHER 0730.108.848
75 4110000045054 THRUST WASHER 0730.108.849
76 4110000045055 THRUST WASHER 0730.111.728
77 4110000045056 THRUST WASHER 0730.111.729
78 7200001983 SCREW 0636.016.083
79 4110000045070 Plug
80 4110000045002 O-RING 0634.304.731
81 4110000045058 SCREW NECK 0750.108.075
82 7200001864 O-RING 0634306523
83 7200001877 VALVE,EXHAUST 0501205154
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
