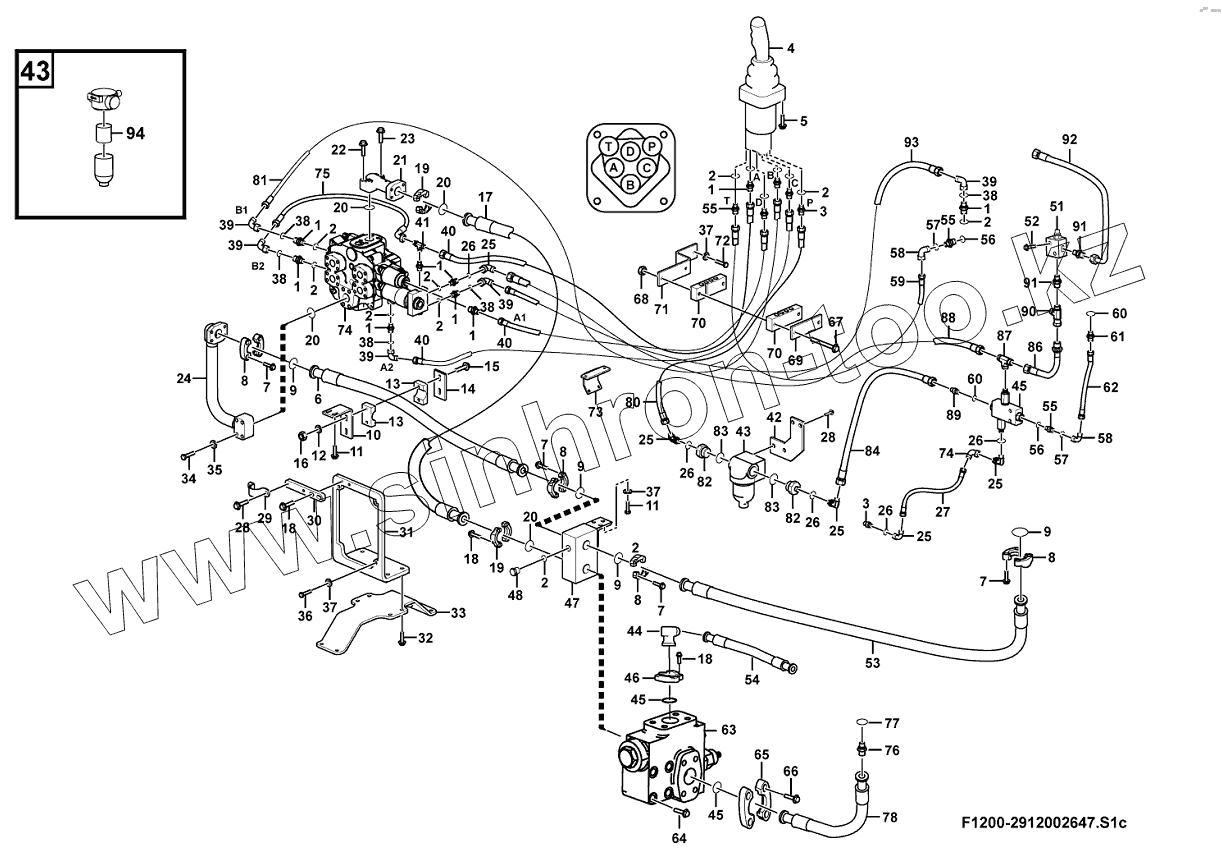

Каталог запасных частей к технике: SDLG LG969N. Hidraulic control system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
4
5
6
7
7
7
7
8
8
8
8
9
9
9
9
10
11
11
12
13
13
14
15
16
17
18
18
18
19
19
20
20
20
20
21
22
23
24
25
25
25
25
25
26
26
26
26
26
27
28
28
29
30
31
32
33
34
35
36
37
37
37
38
38
38
38
38
39
39
39
39
39
40
40
40
41
42
43
43
44
45
45
45
46
47
48
51
52
53
54
55
55
55
56
56
57
57
58
58
59
60
60
61
62
63
64
65
66
67
68
69
70
70
71
72
73
74
74
75
76
77
78
80
81
82
82
83
83
84
86
87
88
89
90
91
91
92
93
94
Позиция на иллюстрации Заводской номер детали Название детали
1 4041000133 Nipple
2 4041000767 O-RING
3 4041000604 JOINT
4 4120006649 Control lever
5 4011000153 BOLT
6 4041001957 Hose assembly
7 4011000477 BOLT
8 4041000011 FLANGE
9 4030000130 O-RING
10 29120019981 Bracket
11 4011000082 BOLT
12 4015000197 WASHER
13 29120019511 Clamp
14 29120019531 Plate
15 4011000053 BOLT
16 4013000007 NUT
17 29120023671 Hose assembly
18 4011000475 BOLT
19 4041000056 FLANGE
20 4030000029 O-RING
21 29120019991 Pipe
22 4011000478 BOLT
23 4011000793 BOLT
24 29120020001 Pipe
25 4041001023 JOINT
26 4030000240 O-RING
27 4041002320 Hose assembly
28 4011000447 BOLT
29 29120019601 Clamp
30 29120019611 Plate
31 29120019561 Valve plate
32 4011000145 BOLT
33 29120019571 Bracket
34 4011000333 Screw
35 4015000168 WASHER
36 4011001013 Screw
37 4015000162 Washer
38 4030000530 O-RING
39 4041001047 CONNECTOR
40 4041001964 Hose assembly
41 4190000204 Three-way nipple
42 29120016021 PLATE
43 4120001954 STRAINER
44 4041000155 Nipple
45 4030000026 O-RING
46 4041000026 FLANGE
47 29120026481 Block
48 4041000774 PLUG
49 4120005063 Valve
50 4011000473 BOLT
51 4120002679 Relief valve
52 4011000944 Screw
53 4041002321 Hose assembly
54 4041002322 Hose assembly
55 4041000766 Nipple
56 4041000768 O-RING LGB168-11524
57 4030000490 O-RING
58 4041001063 CONNECTOR LGB143-01810
59 4041001963 Hose assembly
60 29120014931 WASHER
61 29120007661 Nipple
62 4041002323 Hose assembly
63 4120006261 Valve
64 4011000445 Bolt
65 29120026501 Nipple
66 4014000144 BOLT GB70.1-M10x70EpZn-8.8
67 4011000493 BOLT
68 4013000033 NUT
69 29120016351 MOUNTED PLATE
70 29120016741 CLAMP
71 29120020071 Plate
72 4011000081 BOLT
73 29120019621 Bracket
74 4120006638 Control valve
75 4041001554 Hose assembly
76 29030017471 Nipple
77 4120005166 O-ring
78 4041002324 Hose assembly
79 4041000150 STAIGHT JOINT
80 4041000602 Hose
81 4041001362 Hose assembly
82 29120015081 JOINT
83 4030000276 O-RING
84 4041001859 Hose
85 4041001521 Nipple
86 4041002325 Hose assembly
87 4120002169 Three-way nipple
88 4041000669 Hose
89 29120007651 JOINT
90 29120016521 Three-way nipple
91 4120001901 Nipple
92 4041001550 Hose assembly
93 4041001965 Hose assembly
94 4120001954001 Filter insert
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
