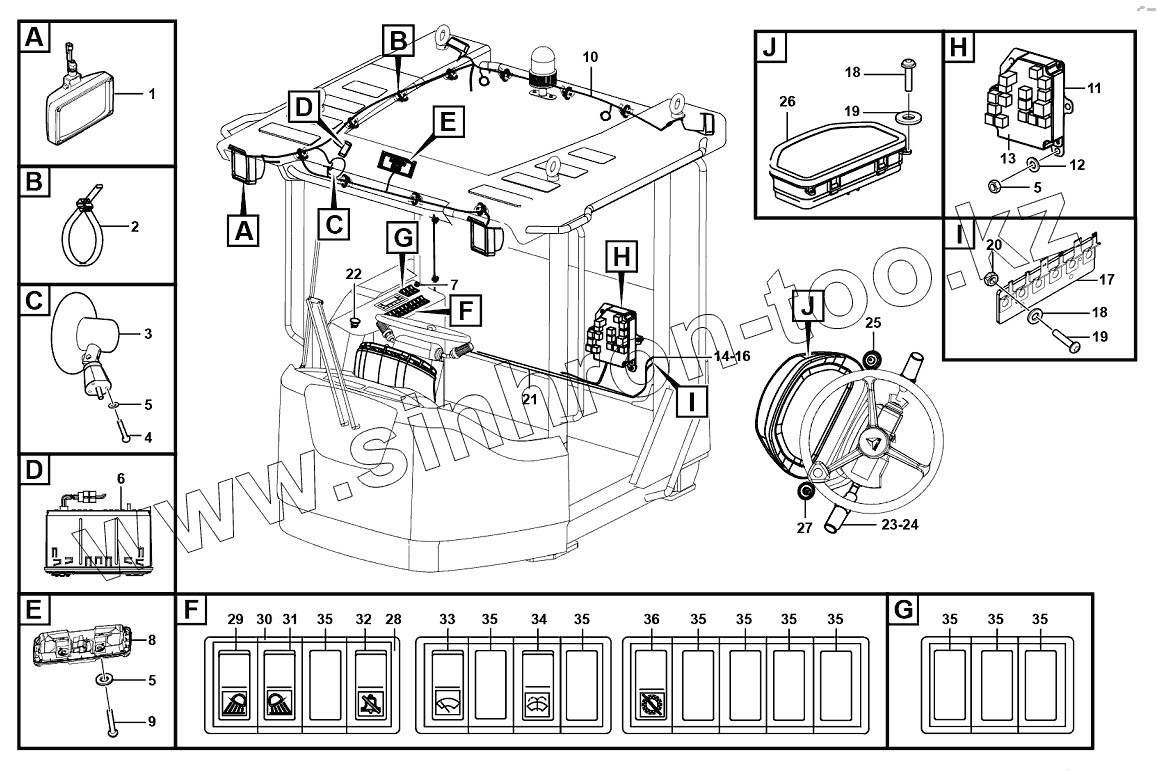

Каталог запасных частей к технике: SDLG LG969N. Electrical assembly-cab
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
35
35
35
35
35
35
35
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4130001685 | Lamp | |
| 2 | 4190001839 | Cable tie | |
| 3 | 4190000608 | ELECTRIC FAN | |
| 4 | 4014000198 | Screw | |
| 5 | 4015000207 | WASHER | |
| 6 | 29370015871 | Radio | |
| 7 | 4130000700 | Cigarette lighter | |
| 8 | 4130001413 | Lamp | |
| 9 | 4014000040 | SCREW | |
| 10 | 29430000051 | Cable harness | |
| 11 | 4130001700 | Control box | |
| 12 | 4013000028 | NUT | |
| 13 | 4130001855 | Fuse | |
| 14 | 4014000183 | Screw | |
| 15 | 4015000200 | Washer | |
| 16 | 4013000159 | Nut | |
| 17 | 29370024041 | Plate | |
| 18 | 4014000088 | SCREW | |
| 19 | 4015000110 | WASHER | |
| 20 | 4013000118 | NUT GB6170-M5EpZn-8 | |
| 21 | 29430000235 | Cable harness | |
| 22 | 4130001842 | Button | |
| 23 | 4130001043 | Light switch | |
| 24 | 4014000409 | Screw | |
| 25 | 11217633 | Starter switch | |
| 26 | 29370019391 | Display panel | |
| 27 | 4130000426 | ALARM BUTTON SWITCH | |
| 28 | 4130000498 | SIDE FRAME | |
| 29 | 4130000490 | Rocker switch | |
| 30 | 4130000497 | Switch panel | |
| 31 | 4130000491 | Rocker switch | |
| 32 | 4130001052 | Rocker switch | |
| 33 | 4130000493 | Rocker switch | |
| 34 | 4130000499 | SPRAY WATER BUTTON-SWITCH | |
| 35 | 4130000496 | CAP | |
| 36 | 4130000504 | Rocker switch |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
