Каталог запасных частей к технике: SDLG LG969N. Driver seat system

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано B877 (2013) B877 (2017) G9138 (2020) G9190 (2013) L916 (2017) L938F (2016) L948 (2016) L948F (2015) L953N (2017) L956F (2017) L958F (2019) LG6150E LG6210E (2013) LG918 (2008) LG918 (2009) LG933 (2008) LG933 (2018) LG933L (2011) LG936 (2007) LG936 (2007) LG936L (2009) LG936L (2013) LG936L (2017) LG938 (2006) LG938 (2010) LG938F (2015) LG938L (2010) LG944MSK (2015) LG946L (2010) LG952 (2007) LG952 (2009) LG952H (2009) LG952H (2012) LG952N (2016) LG953 (2006) LG953 (2008) LG953 (2009) LG953N (2015) LG955N (2015) LG956 (2005) LG956F (2016) LG956FH (2017) LG956L (2009) LG956L (2015) LG956V (2015) LG958 (2006) LG958L (2009) LG958L (2012) LG958N (2013) LG958N (2015) LG968 (2007) LG968 (2009) LG969 (2007) LG969 (2009) LG969N (2015) LGB680 (2007)

Схема > Не выбрано Engine assembly Accelerator pedal assembly Cover plate Fuel tank system Cooling system Expansion tank assembly Radiator Radiator assembly Filter Transmission assembly Vrt200 transmission assembly Power take off comp Torquae converter assemble Cover assemble Lubricating system Safety valve assembly Intermediate gear for power take-off Seat Transmission assembly KFR Hydraulic clutch fr Intermediate shaft assembly Hydraulic clutch k34 Reverse idle gear assembly Hidrauydic clutce k12 Dropbox assembly 1/2 shaft assy Intermediate shaft assenmly 3/4 shaft assy Output shaft assembly Power teke-off component Trasmission control valve assemble Handbrake Transmission assembly Front axle assembly Axle housing Axle casing Output 460.115.056 (450202) Housing Input flang Crowne wheel Limitslip diff Drive shaft assembly Rear axle assembly Axle casing Axle casing Out put Out put Housing Input flange Crown wheel Limitslip diff Hydraulic oil tank system Hidraulic oil tank system Pump assembly Gear pump (370101) Gear pump Hidraulic control system (310004) Pilot control valve (120101) Control valve Lifting cylinder hydraulic system (3713CH) Lift arm cylinder Cylinder assembly (3713CH) Tilt cylinder Linkage structure Working equipment Steering pump assembly (370142) Steering pump assembly (120104) Steering pump assembly Steering gear assembly Steering column assembly Sterling cylinder assembly (3713CH) Sterling cylinder (3713CH) Sterling cylinder Service brake assembly Parking brake assembly Brake cylinder assembly Front frame Front frame accessory Rear frame Rear frame and accessories Counter weight Battery retainer Cab assembly Cab external parts assembly Cab flamework assembly Cab inner parts assembly Washer system Door assembly Handle Wiper arm Interior assembly Filter cover assembly Driver seat system LG06A(350201) Driver seat Cab accessories Air distribution system Operator box assembly Engine hood assembly Cover system Right bench assembly Rear steering lamp hood Left bench assembiy Decal set Air condition Air condition Evaporator assembly Evaporator assembly Condenser assembly Condenser Electric assembly-power Electrical assembly-front frame Electric assembly-rear frame Electrical assembly-cab Working lamp assembly Radio Control box Electric assembly-engine Electric assembly-engine hood Bucket

1

2

3

4

5

6

7

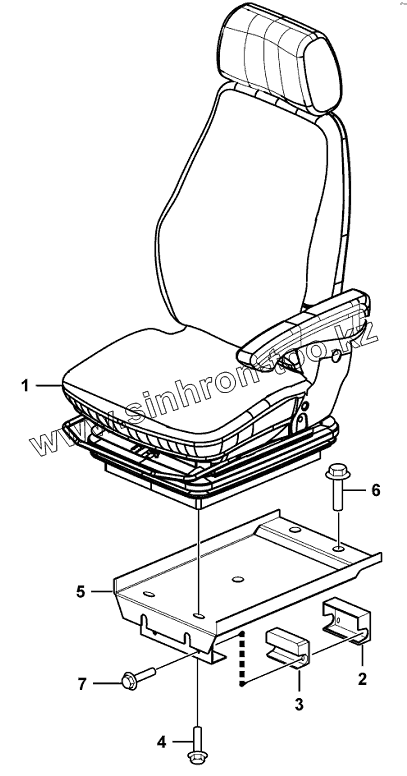

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4190003195		Driver seat
2	29300008051		Block
3	29300008081		Rubber block
4	4011000455		BOLT
5	29300008011		Seat support
6	4011000474		BOLT
7	4011000300		Bolt
