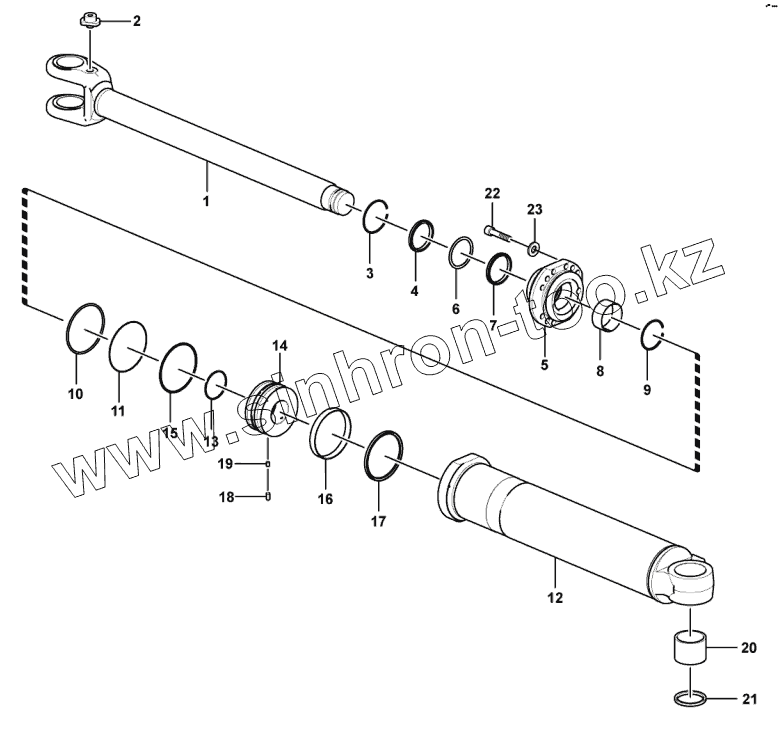

Каталог запасных частей к технике: SDLG LG969N. (3713CH) Lift arm cylinder
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
B877 (2013)
B877 (2017)
G9138 (2020)
G9190 (2013)
L916 (2017)
L938F (2016)
L948 (2016)
L948F (2015)
L953N (2017)
L956F (2017)
L958F (2019)
LG6150E
LG6210E (2013)
LG918 (2008)
LG918 (2009)
LG933 (2008)
LG933 (2018)
LG933L (2011)
LG936 (2007)
LG936 (2007)
LG936L (2009)
LG936L (2013)
LG936L (2017)
LG938 (2006)
LG938 (2010)
LG938F (2015)
LG938L (2010)
LG944MSK (2015)
LG946L (2010)
LG952 (2007)
LG952 (2009)
LG952H (2009)
LG952H (2012)
LG952N (2016)
LG953 (2006)
LG953 (2008)
LG953 (2009)
LG953N (2015)
LG955N (2015)
LG956 (2005)
LG956F (2016)
LG956FH (2017)
LG956L (2009)
LG956L (2015)
LG956V (2015)
LG958 (2006)
LG958L (2009)
LG958L (2012)
LG958N (2013)
LG958N (2015)
LG968 (2007)
LG968 (2009)
LG969 (2007)
LG969 (2009)
LG969N (2015)
LGB680 (2007)
Схема
>
Не выбрано
Engine assembly
Accelerator pedal assembly
Cover plate
Fuel tank system
Cooling system
Expansion tank assembly
Radiator
Radiator assembly
Filter
Transmission assembly
Vrt200 transmission assembly
Power take off comp
Torquae converter assemble
Cover assemble
Lubricating system
Safety valve assembly
Intermediate gear for power take-off
Seat
Transmission assembly
KFR Hydraulic clutch fr
Intermediate shaft assembly
Hydraulic clutch k34
Reverse idle gear assembly
Hidrauydic clutce k12
Dropbox assembly
1/2 shaft assy
Intermediate shaft assenmly
3/4 shaft assy
Output shaft assembly
Power teke-off component
Trasmission control valve assemble
Handbrake
Transmission assembly
Front axle assembly
Axle housing
Axle casing
Output
460.115.056 (450202) Housing
Input flang
Crowne wheel
Limitslip diff
Drive shaft assembly
Rear axle assembly
Axle casing
Axle casing
Out put
Out put
Housing
Input flange
Crown wheel
Limitslip diff
Hydraulic oil tank system
Hidraulic oil tank system
Pump assembly
Gear pump
(370101) Gear pump
Hidraulic control system
(310004) Pilot control valve
(120101) Control valve
Lifting cylinder hydraulic system
(3713CH) Lift arm cylinder
Cylinder assembly
(3713CH) Tilt cylinder
Linkage structure
Working equipment
Steering pump assembly
(370142) Steering pump assembly
(120104) Steering pump assembly
Steering gear assembly
Steering column assembly
Sterling cylinder assembly
(3713CH) Sterling cylinder
(3713CH) Sterling cylinder
Service brake assembly
Parking brake assembly
Brake cylinder assembly
Front frame
Front frame accessory
Rear frame
Rear frame and accessories
Counter weight
Battery retainer
Cab assembly
Cab external parts assembly
Cab flamework assembly
Cab inner parts assembly
Washer system
Door assembly
Handle
Wiper arm
Interior assembly
Filter cover assembly
Driver seat system
LG06A(350201) Driver seat
Cab accessories
Air distribution system
Operator box assembly
Engine hood assembly
Cover system
Right bench assembly
Rear steering lamp hood
Left bench assembiy
Decal set
Air condition
Air condition
Evaporator assembly
Evaporator assembly
Condenser assembly
Condenser
Electric assembly-power
Electrical assembly-front frame
Electric assembly-rear frame
Electrical assembly-cab
Working lamp assembly
Radio
Control box
Electric assembly-engine
Electric assembly-engine hood
Bucket
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4120004405001
Piston rod
2
4120003814003
Seat
3
4120003814004
Retaining ring
4
4120004405004
Sealing ring kit
5
4120004405005
Cover
6
4120004405004
Sealing ring kit
7
4120004405004
Sealing ring kit
8
4120004405004
Sealing ring kit
9
4120003814006
Retaining ring
10
4120004405004
Sealing ring kit
11
4120004405004
Sealing ring kit
12
4120004405007
Cylinder tube
13
4120004405004
Sealing ring kit
14
4120003814008
Piston
15
4120004405004
Sealing ring kit
16
4120004405004
Sealing ring kit
17
4120004405004
Sealing ring kit
18
4014000171
SCREW GB70.1-M8x25-8.8
19
4090000126
STEEL BALL GB308-5-GCr15
20
4120004405009
Bushing
21
4120004405004
Sealing ring kit
22
4014000319
Screw
23
4015000098
WASHER GB93-16-65Mn
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
