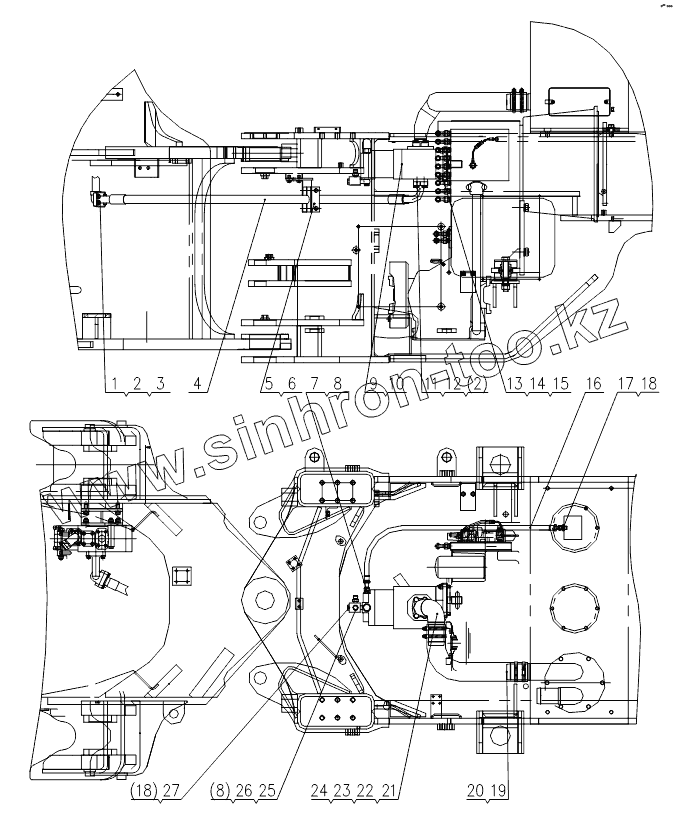

Каталог запасных частей к технике: SDLG LG969. STEERING PUMP ASSEMBLY
/24.gif)
1
2
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4041000026 | FLANGE | |
| 2 | 4011000475 | BOLT | |
| 3 | 4030000026 | O-RING | |
| 4 | 2919000789 | PIPE OF FLUX AMPLIFIER TOPUMP | |
| 5 | 4011000447 | BOLT | |
| 6 | 2919000002 | CLIP | |
| 7 | 2919000792 | STRAIGHT JIONT | |
| 8 | 4030000057 | WASHER | |
| 9 | 4120000171 | TWO-WAY FLOW PUMP | |
| 10 | 2911000754 | SEAL SPACER OF PUMP | |
| 11 | 4041000056 | FLANGE | |
| 12 | 4030000029 | O-RING | |
| 13 | 4012000003 | DOUBLE-SCREW BOLT | |
| 14 | 4015000168 | WASHER | |
| 15 | 4013000011 | NUT | |
| 16 | 4041000650 | PIPE LGB124-005113 | |
| 17 | 4041000150 | STAIGHT JOINT | |
| 18 | 4041000767 | O-RING | |
| 19 | 2919000790 | OIL PIPE OF TWO-WAY FLOW PUMP | |
| 20 | 4017000013 | CLAMP | |
| 21 | 2919000791 | OIL TUBE OF TWO-WAY FLOW PUMP | |
| 22 | 4011000479 | BOLT | |
| 23 | 4030000235 | O-RING | |
| 24 | 4041000011 | FLANGE | |
| 25 | 2919000793 | THREE-WAY CONNECTION | |
| 26 | 4011000339 | BOLT | |
| 27 | 4041000774 | PLUG |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
