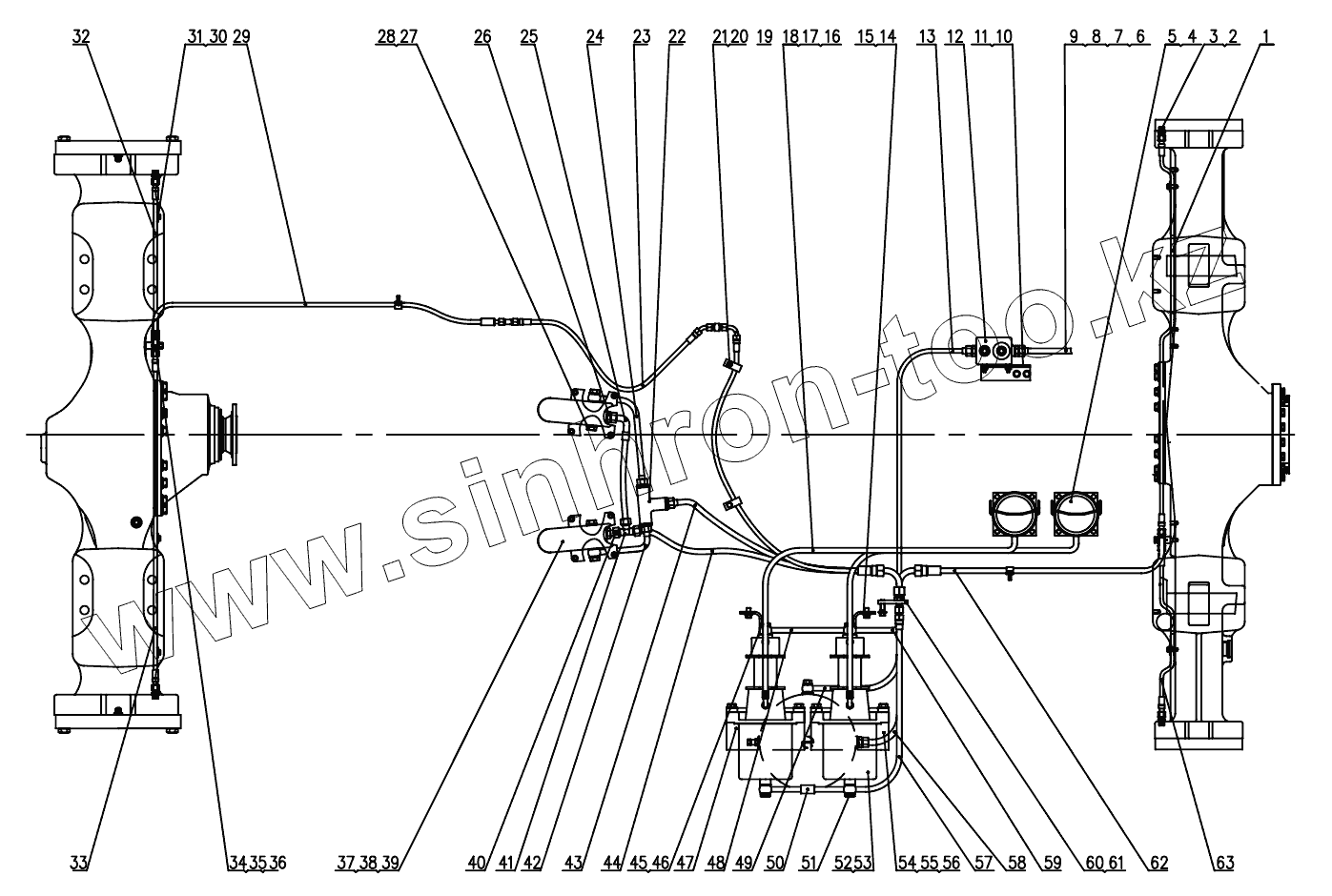

Каталог запасных частей к технике: SDLG LG969. SERVICE BRAKE SYSTEM
/29.gif)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4041000578 | PIPE LGB125-004130 | |
| 2 | 4041000709 | JOINT LGB120-01616 | |
| 3 | 4041000780 | O-RING LGB168-11324 | |
| 4 | 4120001322 | OIL TANK CYG-50G3 | |
| 5 | 4011000137 | BOLT | |
| 6 | 2901000928 | CONNECTER | |
| 7 | 4030000062 | Washer | |
| 8 | 2901000005 | WASHER | |
| 9 | 4120000750 | METAL TUBE | |
| 10 | 4011000474 | BOLT | |
| 11 | 2901000924 | SHOE PLATE | |
| 12 | 4120000084 | AIR DYER | |
| 13 | 2901000919 | TUBE | |
| 14 | 2922000053 | AIR RESERVOIR | |
| 15 | 4011000560 | BOLT | |
| 16 | 4041000710 | HOSE LGB125-004300 | |
| 17 | 4041000604 | JOINT | |
| 18 | 4041000767 | O-RING | |
| 19 | 2922000057 | TUBE TO FRONT AXLE | |
| 20 | 4011000461 | BOLT | |
| 21 | 2901000003 | CLIP | |
| 22 | 4120000248 | SHUTTLE VALVE | |
| 23 | 2922000753 | FORERUNNER TUBE | |
| 24 | 4041000998 | PIPE | |
| 25 | 2922000773 | TUBE | |
| 26 | 2901000007 | CONNECTOR | |
| 27 | 4030000055 | PLUG JB1000-M22x1.5-35 | |
| 28 | 2901000006 | WASHER | |
| 29 | 2922000782 | TUBE TO FRONT AXLE | |
| 30 | 2922000790 | PIVOT PLATE | |
| 31 | 4011000488 | BOLT | |
| 32 | 4041000923 | HOSE LGB126-004054 | |
| 33 | 4041000924 | HOSE LGB125-004143 | |
| 34 | 4011000307 | BOLT GB16674-M10x45EpZn-8.8 | |
| 35 | 2922000783 | TEE OF THE OIL LINE | |
| 36 | 2922000789 | PAD BLOCK | |
| 37 | 4011000455 | BOLT | |
| 38 | 4120001795 | BRAKE CONTROL VALVE LY60F | |
| 39 | 4130000521 | SWITCH OF BRAKE LIGHT | |
| 40 | 2922000769 | JOINT | |
| 41 | 2922000770 | TEE OF THE OIL LINE | |
| 42 | 2922000771 | TUBE | |
| 43 | 2922000778 | TUBE TO BOOSTER | |
| 44 | 2922000058 | TUE TO AIR RESERVOIR | |
| 45 | 4011000373 | BOLT JB999-M20x1.5x45EpZn-35 | |
| 46 | 4030000059 | WASHER | |
| 47 | 2922000784 | FRONT BOOSTER BRACKET | |
| 48 | 2922000807 | TUBE TO FRONT BOOSTER | |
| 49 | 2922000068 | TUBE FROM AIR RESERVOIR TO DUMMY PLATE | |
| 50 | 2922000804 | TEE OF THE OIL LINE | |
| 51 | 2901000004 | BOLT | |
| 52 | 4120001323 | BRAKE BOOSTER JLB-50G3 | |
| 53 | 4011000449 | BOLT | |
| 54 | 2922000786 | BACK BOOSTER BRACKET | |
| 55 | 2922000849 | PLATE | |
| 56 | 4011000474 | BOLT | |
| 57 | 2922000808 | TUBE TO BRAKE VALVE | |
| 58 | 2901001137 | TUBE | |
| 59 | 2922000809 | TUBE TO BACK BOOSTER | |
| 60 | 2922000064 | TUBE OF BRAKE | |
| 61 | 4011000477 | BOLT | |
| 62 | 2922000788 | TUBE TO REAR AXLE | |
| 63 | 4041000712 | HOSE LGB124-004059 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
