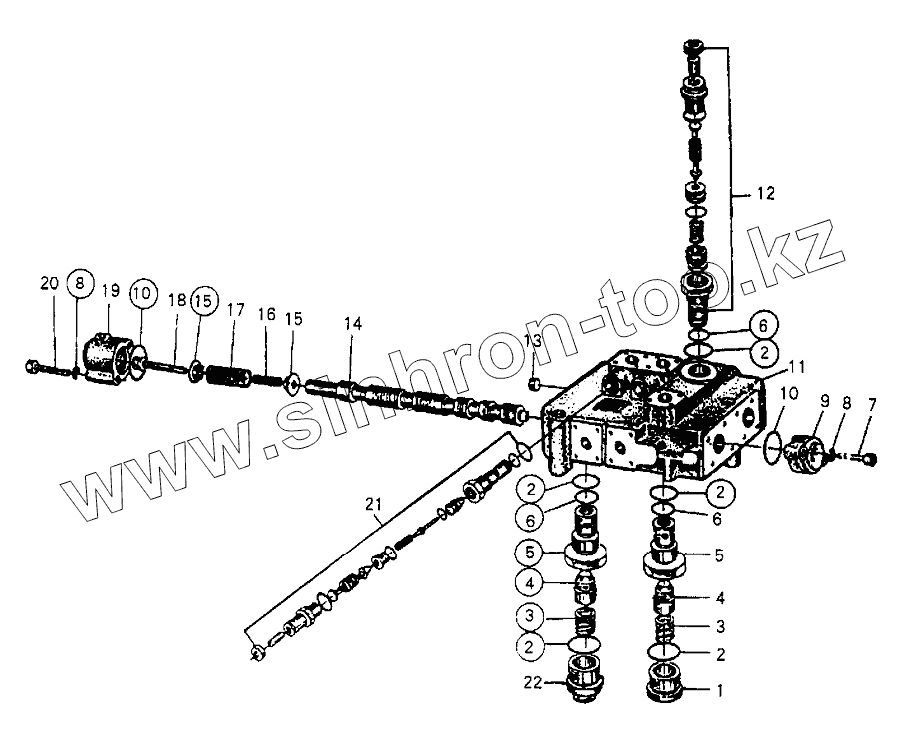

Каталог запасных частей к технике: SDLG LG969. MULTIPLEDIRECTIONAL CONTROL VALVE
/17.gif)
1
2
2
2
2
2
3
3
4
4
5
5
6
6
6
7
8
8
9
10
10
11
12
13
14
15
15
16
17
18
19
20
21
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | COVER | COVER | |
| 2 | O-RING | O-RING | |
| 3 | SPRING | SPRING | |
| 4 | TAPERRING | TAPER RING | |
| 5 | VALVESLEEVE | VALVE SLEEVE | |
| 6 | O-RING | O-RING | |
| 7 | SCREW | SCREW | |
| 8 | WASHER | WASHER | |
| 9 | COVER | COVER | |
| 10 | O-RING | O-RING | |
| 11 | VALVEBODY | VALVE BODY | |
| 12 | SAFETYVALVE | SAFETY VALVE ASY | |
| 13 | PLUG | PLUG | |
| 14 | SLIDEVALVE | SLIDE VALVE | |
| 15 | SPRINGSEAT | SPRING SEAT | |
| 16 | SPRING | SPRING | |
| 17 | SPRING | SPRING | |
| 18 | LOCKSCREW | LOCK SCREW | |
| 19 | ENDCOVER | END COVER | |
| 20 | SCREW | SCREW | |
| 21 | LOADVALVE | OVER LOAD VALVE | |
| 22 | COVER | COVER |
