Каталог запасных частей к технике: SDLG LG969. LIFTING CYLINDER ASSEMBLY
/12.gif)
1
2
2
2
3
3
4
5
6
7
8
8
8
8
8
8
8
9
10
10
10
10
10
10
11
11
11
11
11
11
12
13
14
14
15
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28

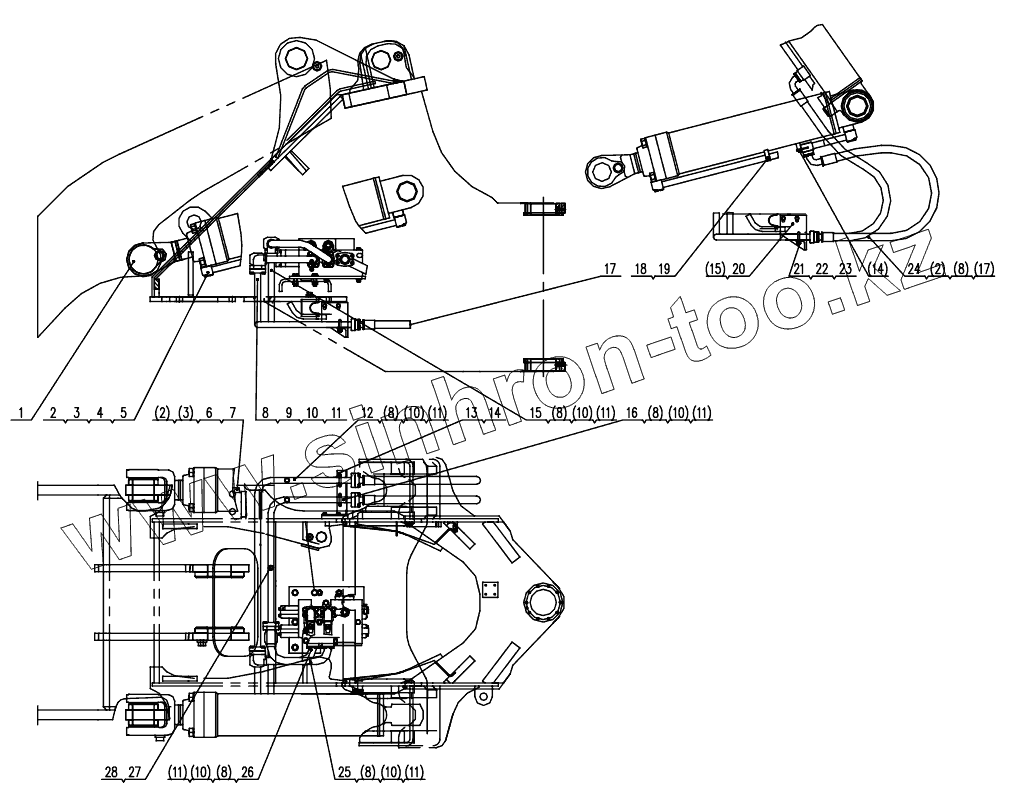

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120000600 | LIFTING CYLINDER HSGF-180x100x7798-1348 | |
| 2 | 4030000026 | O-RING | |
| 3 | 4011000473 | BOLT | |
| 4 | 2913000851 | OIL TUBE TO SMALLL CHAMBER OF LEFT LIFTING CYLINDER | |
| 5 | 2913000003 | OIL TUBE OF BIG CHAMBER LEFT LIFTING CYLINDER | |
| 6 | 2913000845 | OIL TUBE TO SMALLL CHAMBER OF RIGHT LIFTING CYLINDER | |
| 7 | 2913000005 | OIL TUBE OF BIG CHAMBER RIGHT LIFTING CYLINDER | |
| 8 | 4011000475 | BOLT | |
| 9 | 2913000854 | OIL TUBE OF LIFTING CYLINDER | |
| 10 | 4041000056 | FLANGE | |
| 11 | 4030000029 | O-RING | |
| 12 | 2913000847 | OIL TUBE OF LIFTING CYLINDER | |
| 13 | 2913000856 | RIGHT FIX PLATE | |
| 14 | 4011000488 | BOLT | |
| 15 | 2913000965 | OIL TUBE OF LIFTING CYLINDER | |
| 16 | 2913000964 | OIL TUBE OF LIFTING CYLINDER | |
| 17 | 4041000043 | FLANGE | |
| 18 | 2913000011 | CAMPLE | |
| 19 | 4011000458 | BOLT | |
| 20 | 2913000857 | LEFT FIX PLATE | |
| 21 | 4011000556 | U-BOLT | |
| 22 | 4013000007 | NUT | |
| 23 | 4015000162 | Washer | |
| 24 | 4041000649 | PIPE OF LGB106-010130 | |
| 25 | 2913000752 | BIG THREE-WAY OIL TUBE TO CHAMBER OF LIFTING CYLINDER | |
| 26 | 2913000014 | THREE TUBE OF LIFT CYLINDER | |
| 27 | 4041000774 | PLUG | |
| 28 | 4041000767 | O-RING |
