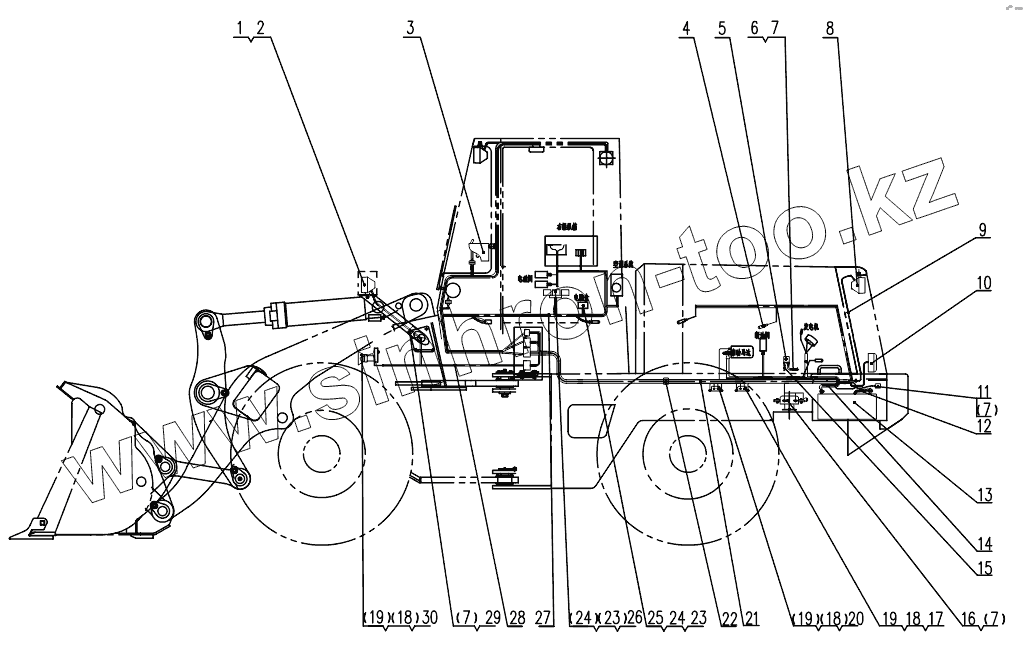

Каталог запасных частей к технике: SDLG LG969. ELECTRIC SYSTEM
/45.gif)
1
2
3
4
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
18
18
19
19
19
20
21
22
23
23
24
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4130000542 | LEFT FRONT HEAD LAMP | |
| 2 | 4130000543 | RIGHT FRONT HEAD LAMP | |
| 3 | 2937001227 | PANEL Y958CK | |
| 4 | 4130000329 | PRESS SWITCH | |
| 5 | 4130000427 | POWER SWITCH K01K18-A | |
| 6 | 2937001162 | EARTH WIRE OF POWER SWITCH | |
| 7 | 4011000461 | BOLT | |
| 8 | 4130000544 | REAR LARGE LAMP SPH4-1031 | |
| 9 | 2937000953 | COVER HARNESS | |
| 10 | 4130000213 | REAR LAMP | |
| 11 | 4130000121 | Buzzer | |
| 12 | 2937000934 | EARTH WIRE | |
| 13 | 4130000057 | BATTERY | |
| 14 | 2937000957 | LINE FROM SWITCH TO MOTOR | |
| 15 | 2937001269 | LINE FROM SWITCH TO MINUS POLE OF STORAGE BATTERAY | |
| 16 | 4130000005 | MAIN SWITCH OF POWER SOURCE | |
| 17 | 4130000455 | STARTUP RELAY JN3D-24V | |
| 18 | 4014000024 | SCREW | |
| 19 | 4015000207 | WASHER | |
| 20 | 4130000015 | STARTUP RELAY | |
| 21 | 2937001234 | BODY WIRING HARNESS | |
| 22 | 4190000020 | CLIP | |
| 23 | 4014000048 | SCREW | |
| 24 | 4015000110 | WASHER | |
| 25 | 4013000118 | NUT GB6170-M5EpZn-8 | |
| 26 | 4130000011 | MIDDLE RELAY | |
| 27 | 2937001236 | INSTRUMENT DESK HARNESS | |
| 28 | 2937001235 | BODY WIRING HARNESS | |
| 29 | 2935000002 | PIPE NIP | |
| 30 | 4130000009 | ELECTRIC HORN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
