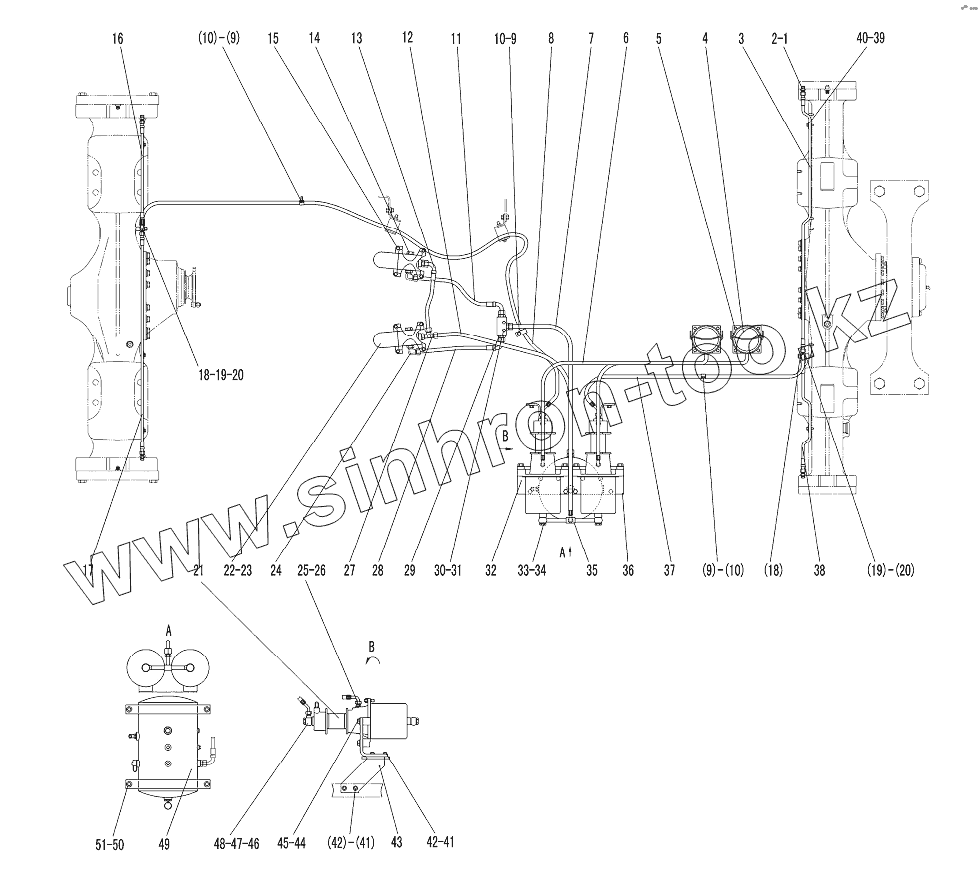

Каталог запасных частей к технике: SDLG LG969. SERVICE BRAKE SYSTEM
1
2
3
4
5
6
7
8
9
9
9
10
10
10
11
12
13
14
15
16
17
18
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
42
43
44
45
46
47
48
49
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4041000709 | JOINT LGB120-01616 | |
| 2 | 4041000780 | O-RING LGB168-11324 | |
| 3 | 4041000578 | PIPE LGB125-004130 | |
| 4 | 4120001322 | OIL TANK CYG-50G3 | |
| 5 | 4011000137 | BOLT | |
| 6 | 4041000710 | HOSE LGB125-004300 | |
| 7 | 4041001209 | HOSE LGB145-205140 | |
| 8 | 4041001406 | HOSE LGB126-004378 | |
| 9 | 4011000461 | BOLT | |
| 10 | 29010000031 | Clamp | |
| 11 | 4041001248 | TUBE LGB145-205060 | |
| 12 | 4041001236 | TUBE LGB146-205140 | |
| 13 | 4041001244 | TUBE LGB145-205036 | |
| 14 | 4030000055 | PLUG JB1000-M22x1.5-35 | |
| 15 | 4011000455 | BOLT | |
| 16 | 4041000923 | HOSE LGB126-004054 | |
| 17 | 4041000924 | HOSE LGB125-004143 | |
| 18 | 4011000307 | BOLT GB16674-M10x45EpZn-8.8 | |
| 19 | 29220007831 | TEE PIPE COUPLING | |
| 20 | 29220007891 | CUSHION BLOCK | |
| 21 | 4120001323 | BRAKE BOOSTER JLB-50G3 | |
| 22 | 4120001795 | BRAKE CONTROL VALVE LY60F | |
| 23 | 4130000521 | SWITCH OF BRAKE LIGHT | |
| 24 | 29220001201 | JOINT | |
| 25 | 4041000604 | JOINT | |
| 26 | 4041000767 | O-RING | |
| 27 | 29220008771 | TEE OF THE OIL LINE | |
| 28 | 4041001210 | TUBE LGB145-205043 | |
| 29 | 29220001191 | CONNECTOR | |
| 30 | 4011000281 | BOLT GB16674-M6x40EpZn-8.8 | |
| 31 | 4120002025 | SHUTTLE VALVE VS22 | |
| 32 | 29220007841 | BEARER OF FRONT PUMP | |
| 33 | 29010000041 | BOLT | |
| 34 | 29220000811 | WASHER | |
| 35 | 29220008891 | TEE OF THE OIL LINE | |
| 36 | 29220007861 | BEARER OF REAR PUMP | |
| 37 | 4041001251 | HOSE LGB126-004180 | |
| 38 | 4041000712 | HOSE LGB124-004059 | |
| 39 | 29220007901 | PRESSURE PLATE | |
| 40 | 4011000488 | BOLT | |
| 41 | 4015000162 | Washer | |
| 42 | 4011000082 | BOLT | |
| 43 | 29220008491 | BEND PLATE | |
| 44 | 4011000095 | BOLT GB5783-M16x35EpZn-8.8 | |
| 45 | 4015000181 | WASHER | |
| 46 | 29220008921 | JOINT | |
| 47 | 4011000373 | BOLT JB999-M20x1.5x45EpZn-35 | |
| 48 | 4030000059 | WASHER | |
| 49 | 29220000531 | AIR RESERVOIR | |
| 50 | 4011000197 | BOLT | |
| 51 | 4015000186 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
