Каталог запасных частей к технике: SDLG LG969. LIFT ARM CYLINDER ASSEMBLY
1
2
3
3
3
3
4
4
4
4
5
5
5
5
5
6
7
7
7
7
7
7
7
8
8
8
8
8
8
9
10
11
11
12
13
14
15
16
17
18
18
19
19
20
21
22
23
24
25
25
26
27
27
28
29
30
31
32
33
34
35
36

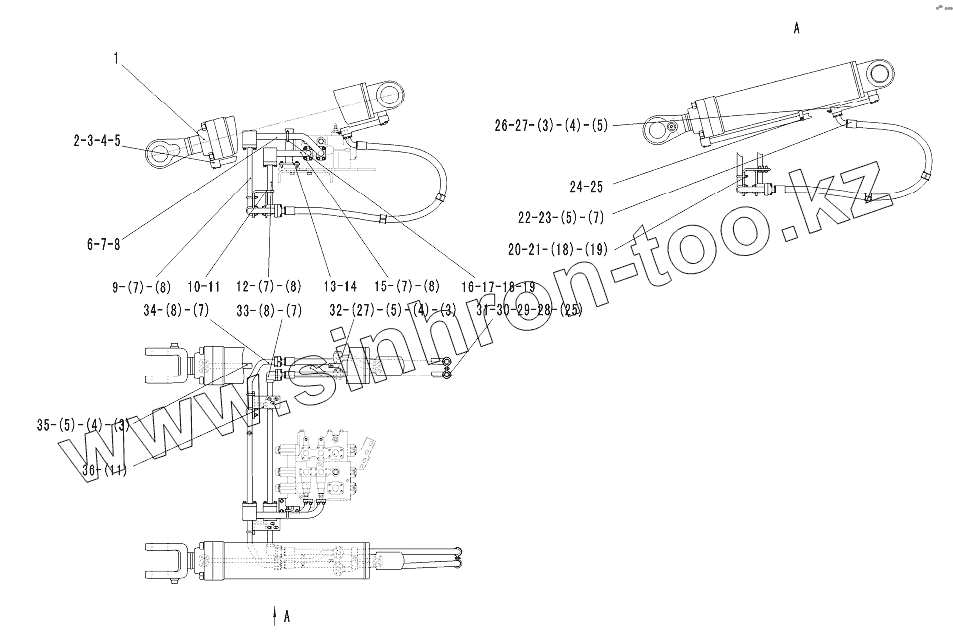

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120000600 | LIFTING CYLINDER HSGF-180x100x7798-1348 | |
| 2 | 29130012441 | SMALL CHAMBER TUBE OF LEFT LIFT ARM CYLINDER | |
| 3 | 4011000473 | BOLT | |
| 4 | 4011000309 | BOLT | |
| 5 | 4030000026 | O-RING | |
| 6 | 29130010861 | THREE-WAY OIL TUBE | |
| 7 | 4011000475 | BOLT | |
| 8 | 4030000029 | O-RING | |
| 9 | 29130010891 | OIL TUBE OF LIFTING CYLINDER | |
| 10 | 29130012111 | LEFT BEARER | |
| 11 | 4011000479 | BOLT | |
| 12 | 29130010961 | OIL TUBE OF LIFTING CYLINDER | |
| 13 | 29130011001 | BRACKET | |
| 14 | 4011000474 | BOLT | |
| 15 | 29130010981 | THREE-WAY OIL TUBE | |
| 16 | 4041001141 | U-BOLT LGB159-03646 | |
| 17 | 4041001142 | PADDING LGB160-3646 | |
| 18 | 4015000162 | Washer | |
| 19 | 4013000007 | NUT | |
| 20 | 4041000958 | U-BOLT | |
| 21 | 4041001018 | PLATE LGB160-3040 | |
| 22 | 29130010571 | OIL PIPE OF LIFTING CYLINDER | |
| 23 | 4041000043 | FLANGE | |
| 24 | 29130000111 | CLAMP | |
| 25 | 4011000458 | BOLT | |
| 26 | 29130000051 | OIL TUBE TO BIG CHAMBER OF RIGHT LIFTING CYLINDER | |
| 27 | 4011000488 | BOLT | |
| 28 | 29130010371 | CLAMP | |
| 29 | 4041000869 | CUSHION | |
| 30 | 4013000033 | NUT | |
| 31 | 4015000072 | WASHER | |
| 32 | 29130000031 | OIL TUBE TO BIG CHAMBER OF LEFT LIFTING CYLINDER | |
| 33 | 29130010941 | OIL TUBE OF LIFTING CYLINDER | |
| 34 | 29130010921 | OIL TUBE OF LIFTING CYLINDER | |
| 35 | 29130012461 | RIGHT LIFTING CYLINDER SMALL CHAMBER TUBE | |
| 36 | 29130012131 | RIGHT BEARER |
