Каталог запасных частей к технике: SDLG LG969. CAB GROUP

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
51
51
52
53
54
55
56
57
58
59
60

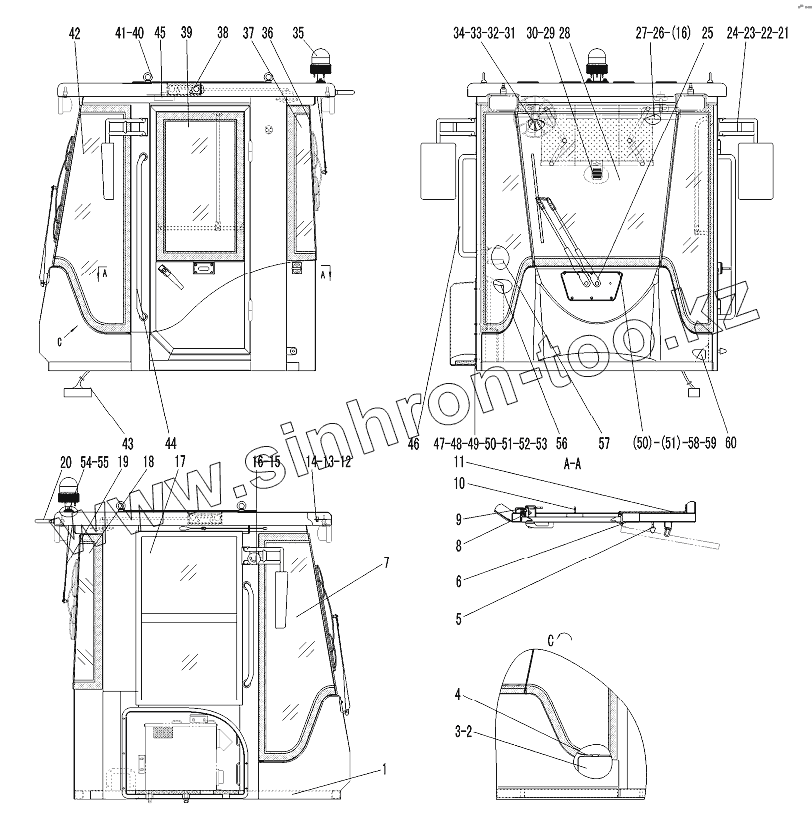

Позиция на иллюстрации Заводской номер детали Название детали
1 29290009701 CAB ASSEMBLY
2 4190000758 BLOW CAN
3 29290009181 BLOW CAN CAP
4 29290008871 LOWER COVER PLATE ON LEFT FRONT
5 4190000596 CHECK OF UPPER GATE
6 4030000535 OIL CUP
7 4190001304 FRONT GLASS
8 4190000966 RUBBER SPACER
9 4190000605 LEFT LOCK
10 4190000595 COUNTER LOCK
11 4190001305 BASIC TRIM GROUP
12 4190000968 TRANSTION PLATE OF LIGHT
13 4011000082 BOLT
14 4015000162 Washer
15 4190000581 CLOTHING HOOK
16 4014000037 SCREW
17 4190001306 SLIDING WINDOW
18 4190001314 REAR GLASS
19 4190001310 REAR WIPER BUTTON
20 4190000953 REAR ARM REST
21 4015000072 WASHER
22 4015000036 WASHER
23 4011000105 BOLT
24 4190000575 BACK UP GLASS GROUP
25 4190000599 WIPER BUTTON
26 4190000577 BACK MIRROR IN HOUSE
27 4014000046 SCREW
28 4190001307 FRONT WINDSHIELD FR185
29 4014000077 SCREW
30 4190001334 SHADOW SHIELD
31 4190000608 ELECTRIC FAN
32 4014000063 SCREW
33 4015000207 WASHER
34 4015000035 WASHER
35 29370012971 GYRATE LAMP ASSEMBLY
36 4190001315 REAR GLASS
37 4190001316 REAR GLASS
38 29370012981 CD-MACHINE ASSEMBLY
39 4190001317 DOOR GLASS
40 4014000028 SCREW
41 4190000956 SEAL WASHER
42 4190001311 LEFT FRONT GLASS
43 4190001312 CAB WIRING
44 4190000965 LEFT ARM REST
45 4190000578 DOME LAMP
46 4190000957 RIGHT ARM REST
47 29290009141 BOILER'S HOOD
48 29290009151 AIR-INLET GRILLE
49 29290009171 SPONGE
50 4011000291 BOLT
51 4015000207 WASHER
52 4190000960 SEAL OF TUBE SPONGE
53 4190000961 LINEAR SEALING SPONGE
54 4190000958 RUBBER COVR-30
55 4190000959 RUBBER COVR-10
56 29290008941 BOILER'S HOOD P
57 4190000962 CUP SEAT
58 4190000963 WIPER BUTTON CAP
59 4190000964 WIPER BUTTON GASKET
60 4190001359 CAP
61 4190000967 RUBBER SPACER
62 4011000680 BOLT
63 4190000500 ANNIHILATOR
64 4190000501 SAFETY HAMMER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
