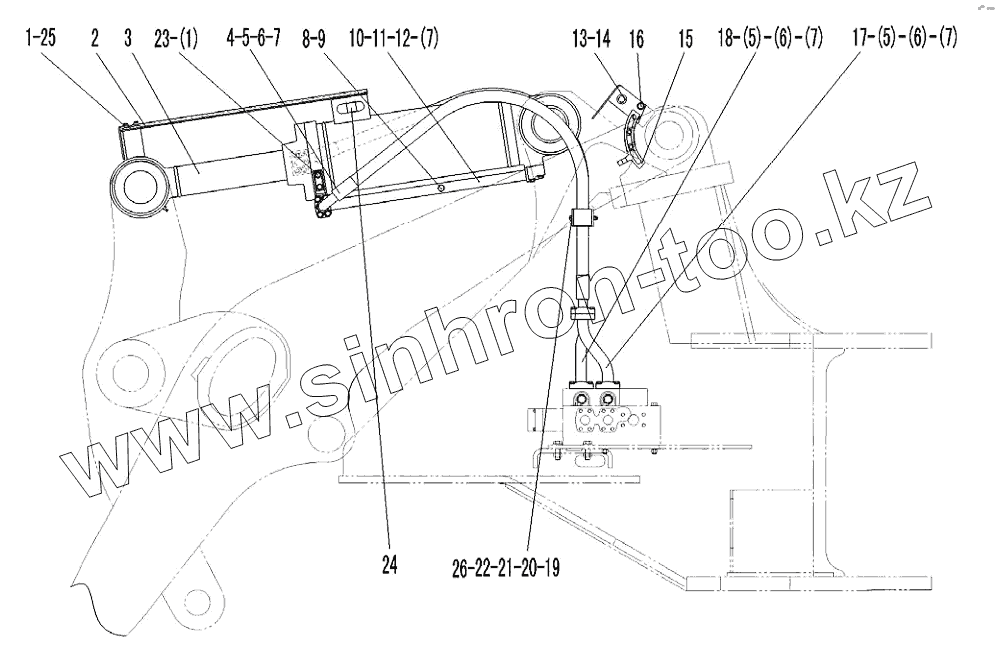

Каталог запасных частей к технике: SDLG LG968. TILT CYLINDER ASSEMBLY
/40.gif)
1
1
2
3
4
5
5
5
6
6
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011000081 | BOLT | |
| 2 | 29140010011 | SET LEVEL GUARD SHEET | |
| 3 | 4120000601 | TILT CYLINDER HSGF-210x110x550-1098 | |
| 4 | 4041000697 | PIPE OF LGB106-012180 | |
| 5 | 4041000027 | FLANGE | |
| 6 | 4011000475 | BOLT | |
| 7 | 4030000029 | O-RING | |
| 8 | 4041000774 | PLUG | |
| 9 | 4041000767 | O-RING | |
| 10 | 4011000309 | BOLT | |
| 11 | 4011000473 | BOLT | |
| 12 | 29140008521 | BIG CHAMBER TUBE OF TILT CYLINDER | |
| 13 | 29140007541 | FRAME OF ADJACENT SWICH | |
| 14 | 4130000679 | ADJACENT SWICH J7-D10C2/08 | |
| 15 | 29140007551 | INDICATIONG PLATE OF LIFTING CYLINDER | |
| 16 | 4011000137 | BOLT | |
| 17 | 29140008542 | BIG CHAMBER TUBE OF TILT CYLINDER | |
| 18 | 29140008532 | SMALL CHAMBER TUBE OF TILT CYLINDER | |
| 19 | 29140001141 | RUBBER PLATE | |
| 20 | 29140009281 | RUBBER PLATE | |
| 21 | 29140001131 | PRESS PLATE | |
| 22 | 4011000528 | BOLT GB16674-M10x100EpZn-8.8 | |
| 23 | 4015000162 | Washer | |
| 24 | 4130000607 | ADJACENT SWICH J7-D10C2 | |
| 25 | 4015000197 | WASHER | |
| 26 | 29140010821 | STEEL TUBE |
