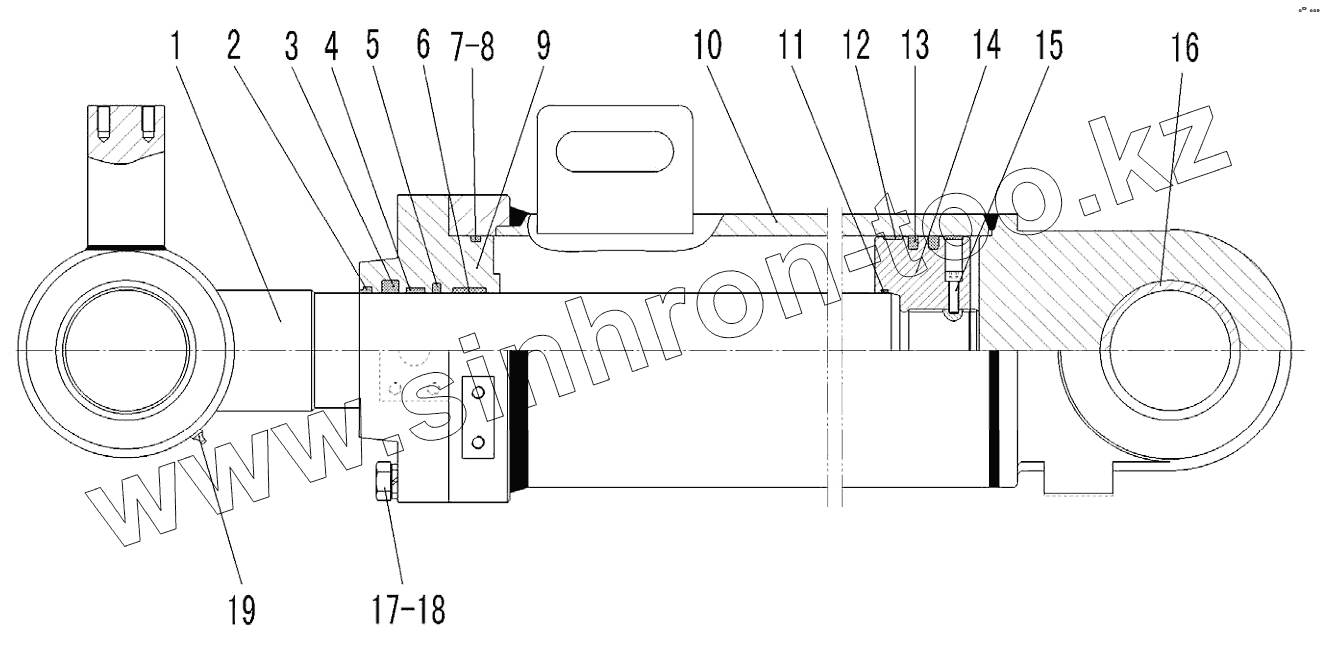

Каталог запасных частей к технике: SDLG LG968. TILT CYLINDER (371368)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Позиция на иллюстрации Заводской номер детали Название детали
1 4120000601102 PISTON ROD HSGF-210/110X550-1
2 4120000601103 SEALING MEMBER AGGREGATE
3 4120000601103 SEALING MEMBER AGGREGATE
4 4120000601103 SEALING MEMBER AGGREGATE
5 4120000601103 SEALING MEMBER AGGREGATE
6 4120000601103 SEALING MEMBER AGGREGATE
7 4120000601103 SEALING MEMBER AGGREGATE
8 4120000601103 SEALING MEMBER AGGREGATE
9 4120000601108 CYLINDER COVER
10 4120000601109 CYLINDER BODY
11 4120000601103 SEALING MEMBER AGGREGATE
12 4120000601103 SEALING MEMBER AGGREGATE
13 4120000601103 SEALING MEMBER AGGREGATE
14 4120000601112 PISTON
15 4014000171 SCREW GB70.1-M8x25-8.8
16 4120000601114 BUSHING
17 4011000865 BOLT GB5785-M16x1.5x65EpZn-10.9
18 4015000098 WASHER GB93-16-65Mn
19 4030000065 GREASE NIPPLE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
