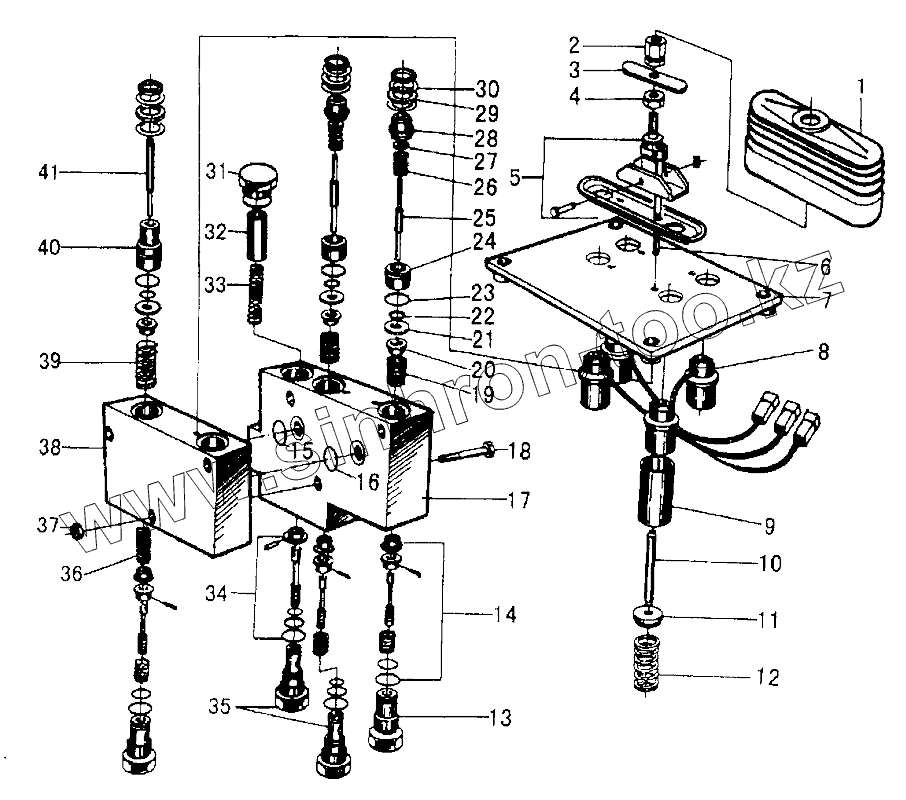

Каталог запасных частей к технике: SDLG LG968. PRIORITY VALVE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | RUBBERCOVER | RUBBER COVER | |
| 2 | THREADRETAINER | THREAD RETAINER | |
| 3 | PIVOTPLATE | PIVOT PLATE | |
| 4 | NUT | NUT | |
| 5 | CLAMPPINGROUP | CLAMP PIN GROUP | |
| 6 | SETBOLT | SET BOLT | |
| 7 | SETPLATE | SET PLATE | |
| 8 | COILASSEMBLY | COIL ASSEMBLY | |
| 9 | SPRINGGUIDE | SPRING GUIDE | |
| 10 | PLUNGER | PLUNGER | |
| 11 | SPRINGRETAINER | SPRING RETAINER | |
| 12 | RETURNINGSPRING | RETURNING SPRING | |
| 13 | VALVESEAT | VALVE SEAT | |
| 14 | METERINGVALVESTEM | METERING VALVE STEM | |
| 15 | SEALINGRING | SEALING RING | |
| 16 | SEALINGRING | SEALING RING | |
| 17 | VALVEBOLCK.LIFTINGPORTION | VALVE BOLCK .LIFTING PORTION | |
| 18 | RING | RING | |
| 19 | METERINGSPRING | METERING SPRING | |
| 20 | RETAINER | RETAINER | |
| 21 | SPACER | SPACER | |
| 22 | SEALINGRING | SEALING RING | |
| 23 | SEALINGRING | SEALING RING | |
| 24 | FLANGE | FLANGE | |
| 25 | PUSHROD | PUSH ROD | |
| 26 | SPRING | SPRING | |
| 27 | SPACER | SPACER | |
| 28 | GUIDERETAINER | GUIDE RETAINER | |
| 29 | SPACER | SPACER | |
| 30 | ISOLATOR | ISOLATOR | |
| 31 | THREADPLUG | THREAD PLUG | |
| 32 | SPRINGGUIDE | SPRING GUIDE | |
| 33 | SPRING | SPRING | |
| 34 | METERINGVALVESTEM | METERING VALVE STEM | |
| 35 | VALVESEAT | VALVE SEAT | |
| 36 | SPRING | SPRING | |
| 37 | NUT | NUT | |
| 38 | VALVEBOLCK,TILTTINGPORTION | VALVE BOLCK ,TILTTING PORTION | |
| 39 | SPRING | SPRING | |
| 40 | GUIDERETAINER | GUIDE RETAINER | |
| 41 | PUSHROD | PUSH ROD |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
