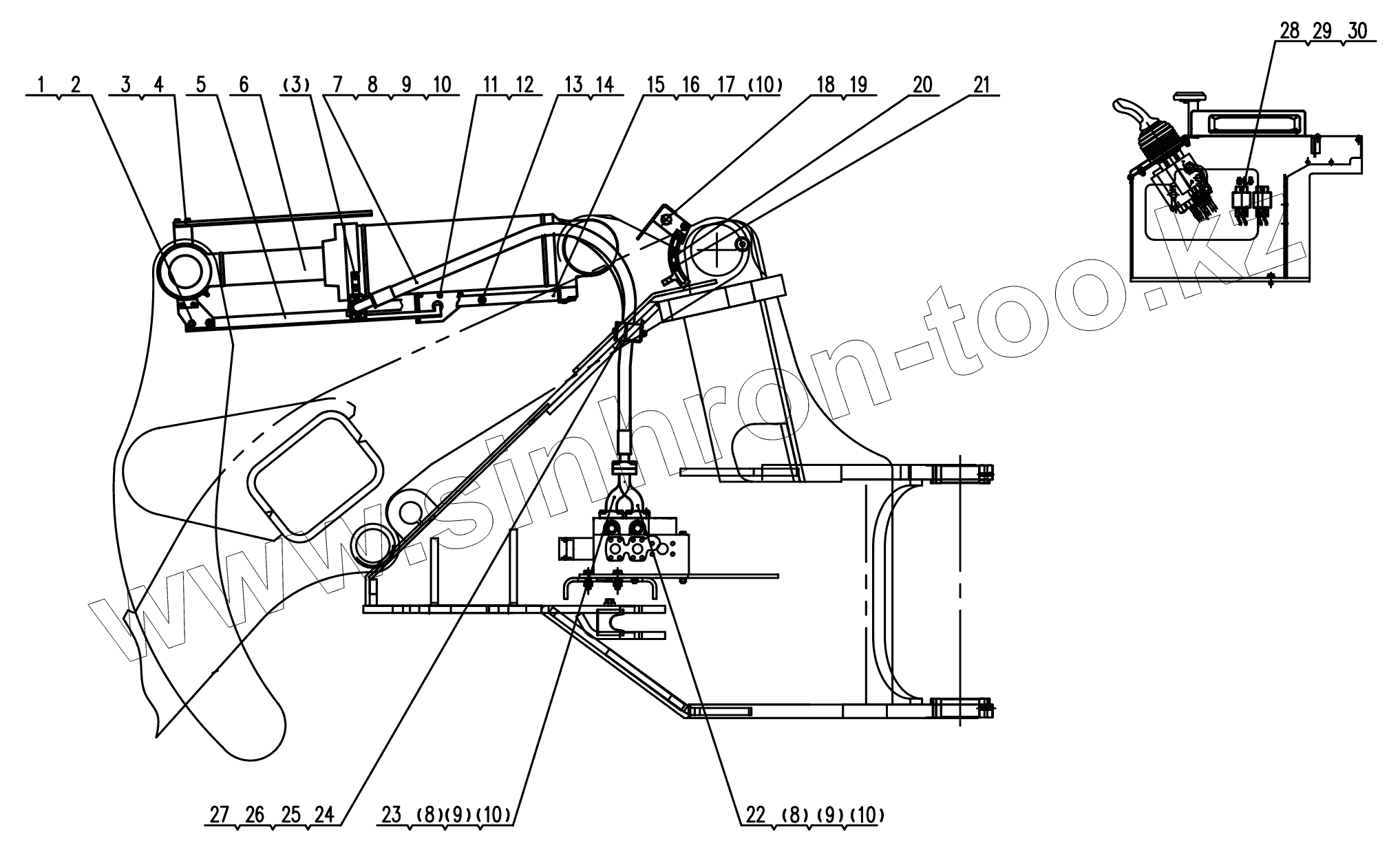

Каталог запасных частей к технике: SDLG LG968. DUMP CYLINDER ASSEMBLY
1
2
3
3
4
5
6
7
8
8
8
9
9
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011000145 | BOLT | |
| 2 | 4013000013 | NUT | |
| 3 | 4011000488 | BOLT | |
| 4 | 2914000981 | SET LEVEL GUARD SHEET | |
| 5 | 2914000850 | INDICATING PLATE OF TILTING CYLINDER | |
| 6 | 4120000601 | TILT CYLINDER HSGF-210x110x550-1098 | |
| 7 | 4041000697 | PIPE OF LGB106-012180 | |
| 8 | 4041000027 | FLANGE | |
| 9 | 4011000475 | BOLT | |
| 10 | 4030000029 | O-RING | |
| 11 | 4011000479 | BOLT | |
| 12 | 2914000758 | FRAME OF ADJACENT SWITCH | |
| 13 | 4041000774 | PLUG | |
| 14 | 4041000767 | O-RING | |
| 15 | 4011000309 | BOLT | |
| 16 | 4011000473 | BOLT | |
| 17 | 2914000852 | OIL-TUBE TO BIG CHAMBER OF THE TILT CYLINDER | |
| 18 | 2914000754 | FRAME OF ADJACENT SWITCH | |
| 19 | 4130000010 | APPROACH | |
| 20 | 2914000755 | INDICATIN PLATE OF LIFTING CYLINDER | |
| 21 | 4011000137 | BOLT | |
| 22 | 2914000854 | TUBE OF TILT CYLINDER | |
| 23 | 2914000853 | TUBE OF TILT CYLINDER | |
| 24 | 2914000114 | RUBBER PLATE | |
| 25 | 2914000928 | RUBBER PLATE | |
| 26 | 2914000113 | PRESS PLATE | |
| 27 | 4011000528 | BOLT GB16674-M10x100EpZn-8.8 | |
| 28 | 4130000011 | MIDDLE RELAY | |
| 29 | 4014000048 | SCREW | |
| 30 | 4015000110 | WASHER |
