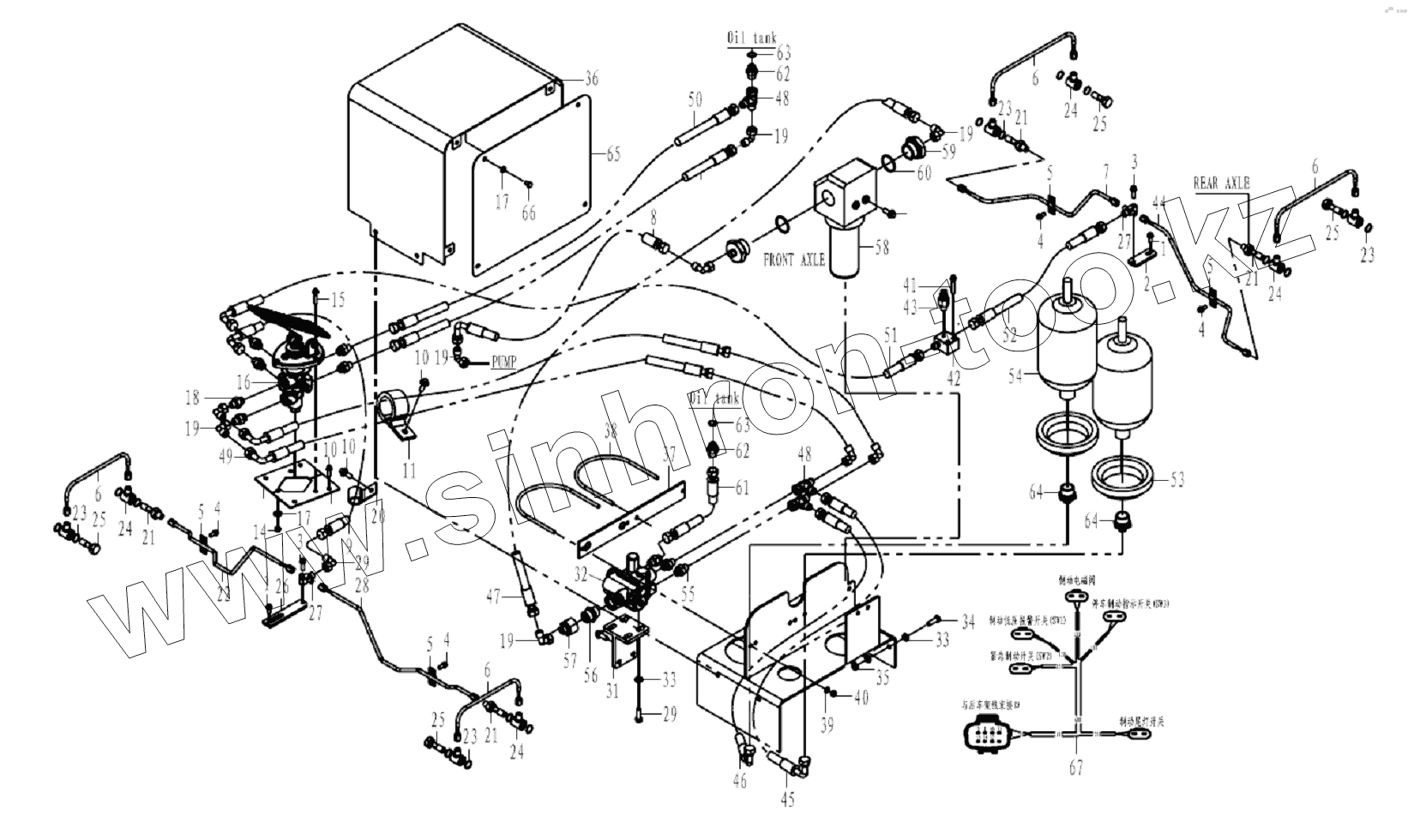

Каталог запасных частей к технике: SDLG LG958N. Service brake system J1-2922001537
/65.gif)
1
1
2
3
3
4
4
4
4
5
5
5
5
6
6
6
6
7
8
9
10
10
10
11
14
15
16
17
17
18
19
19
19
19
19
20
21
21
21
21
22
23
23
23
23
24
24
24
24
25
25
25
25
26
27
27
28
29
29
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
62
63
63
64
64
65
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011000458 | BOLT | |
| 2 | 29220011811 | Anchor plate | |
| 3 | 4011000455 | BOLT | |
| 4 | 4011000807 | Bolt | |
| 5 | 29220008981 | Plate | |
| 6 | 29220009991 | Brake pipe | |
| 7 | 29220014501 | Brake pipe | |
| 8 | 4041001565 | Hose assembly | |
| 9 | 29220013951 | Hose assembly | |
| 10 | 4011000461 | BOLT | |
| 11 | 29030000041 | CLAMP | |
| 12 | 29220015341 | Plate | |
| 13 | 29220015331 | Plate | |
| 14 | 4013000033 | NUT | |
| 15 | 4011000161 | BOLT | |
| 16 | 4120005158 | Control valve | |
| 17 | 4015000256 | WASHER | |
| 18 | 4190000147 | Nipple | |
| 19 | 4190000141 | Nipple | |
| 20 | 26370001921 | CLAMP | |
| 21 | 29220009011 | Nipple | |
| 22 | 29220014461 | Brake pipe | |
| 23 | 4030000552 | O-Ring | |
| 24 | 29220009021 | Block | |
| 25 | 29220001251 | CONNECTOR | |
| 26 | 29220011131 | Anchor plate | |
| 27 | 29220015381 | Three-way nipple | |
| 28 | 29220014441 | Brake pipe | |
| 29 | 4190000176 | Nipple | |
| 30 | 29220009261 | Bolt | |
| 31 | 29220013971 | Bracket | |
| 32 | 4120002767 | Check valve | |
| 33 | 4015000162 | Washer | |
| 34 | 4011000082 | BOLT | |
| 35 | 4013000007 | NUT | |
| 36 | 29220013191 | Protecting cover | |
| 37 | 29220011461 | Rubber mat | |
| 38 | 29220010301 | U-bolt | |
| 39 | 4015000072 | WASHER | |
| 40 | 4013000210 | Nut | |
| 41 | 4011000527 | BOLT | |
| 42 | 29220009221 | Block | |
| 43 | 4120004340 | Switch | |
| 44 | 29220014481 | Brake pipe | |
| 45 | 4041001765 | Hose assembly | |
| 46 | 4041001989 | Hose | |
| 47 | 4041001990 | Hose | |
| 48 | 4190000143 | Three-way nipple | |
| 49 | 29220015361 | Hose assembly | |
| 50 | 4041001626 | Hose | |
| 51 | 29220013961 | Hose assembly | |
| 52 | 4041000884 | Hose | |
| 53 | 29220010311 | Rubber sleeve | |
| 54 | 4120002729 | Accumulator | |
| 55 | 4190000149 | Nipple | |
| 56 | 4120001773 | Nipple | |
| 57 | 4120002702 | Nipple | |
| 58 | 4120004417 | Hydraulic fluid filter | |
| 59 | 29220012581 | Nipple | |
| 60 | 4030000894 | O-ring | |
| 61 | 4041001992 | Hose assembly | |
| 62 | 4041000766 | Nipple | |
| 63 | 4041000768 | O-RING LGB168-11524 | |
| 64 | 29220010271 | Nipple | |
| 65 | 29220013211 | Plate | |
| 66 | 4011000934 | Screw | |
| 67 | 29370025451 | Brake harness |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
