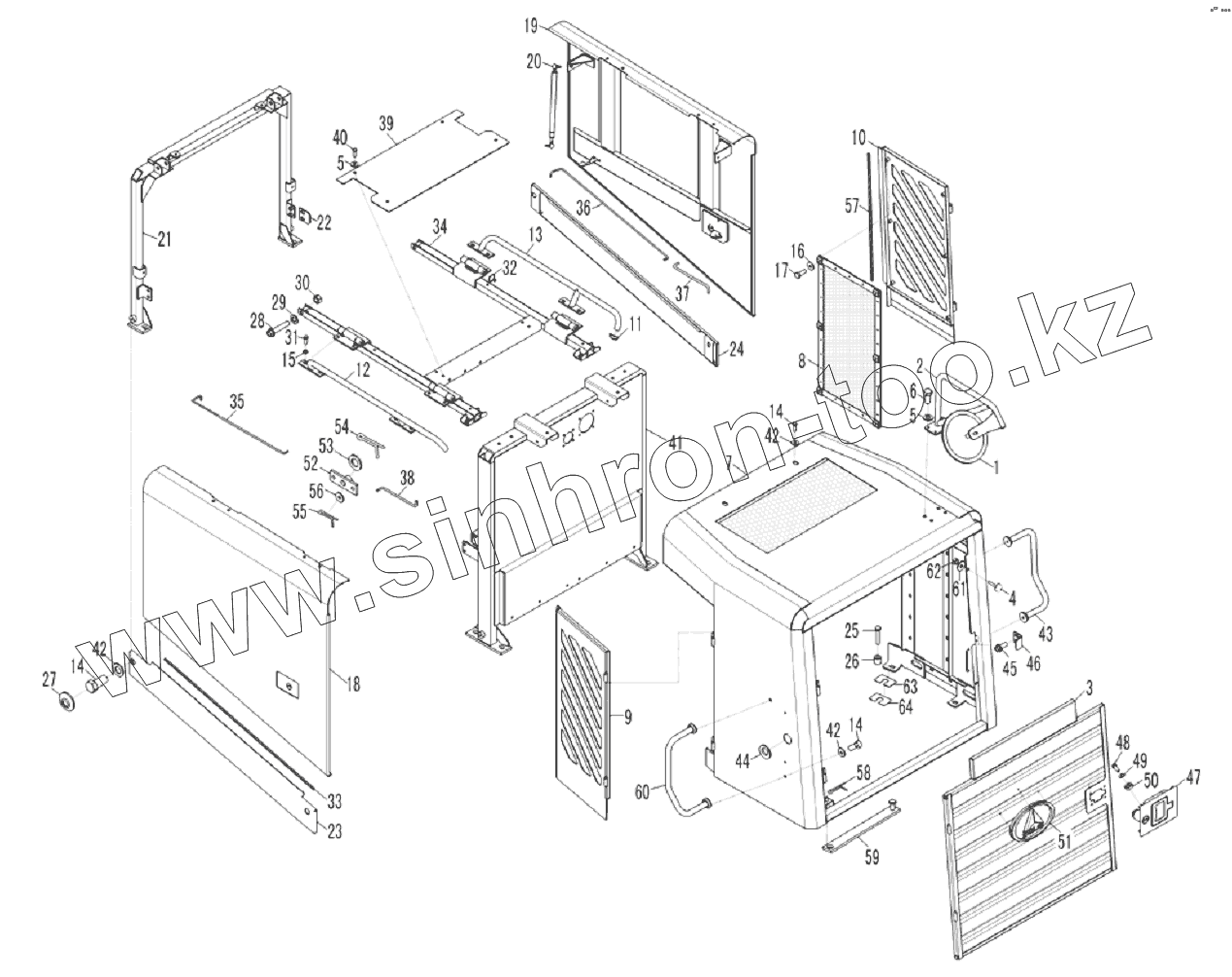

Каталог запасных частей к технике: SDLG LG958N. Engine hood M1-2933004933
/80.gif)
1
2
3
4
5
5
5
6
7
7
8
9
9
9
10
11
12
13
14
14
14
14
15
15
16
16
17
18
19
19
20
21
21
22
23
24
25
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
40
41
42
42
42
42
43
43
44
44
45
45
46
46
47
48
49
49
50
51
52
52
53
53
54
55
55
56
57
57
58
59
60
60
61
62
63
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11211277 | Rear view mirror | |
| 2 | 29330043011 | Bracket | |
| 3 | 29330050391 | Grille | |
| 4 | 26330006531 | Rubber block | |
| 5 | 4015000197 | WASHER | |
| 6 | 4011000082 | BOLT | |
| 7 | 29330046231 | Bonnet | |
| 8 | 29330046241 | Protecting grating | |
| 9 | 29330046251 | Cover | |
| 10 | 29330046261 | Cover | |
| 11 | 29330011232 | RUBBER COVER | |
| 12 | 29330050471 | Hand rail | |
| 13 | 29330050491 | Hand rail | |
| 14 | 4011000197 | BOLT | |
| 15 | 4015000168 | WASHER | |
| 16 | 4015000198 | Washer | |
| 17 | 4011000101 | BOLT | |
| 18 | 29330046311 | Cover | |
| 19 | 29330046321 | Cover | |
| 20 | 29330014621 | AIR SPRING | |
| 21 | 29330046351 | Support | |
| 22 | 29330000092 | FRONT LOCK PLATE | |
| 23 | 29330046391 | Cover | |
| 24 | 29330046401 | Cover | |
| 25 | 4011000594 | Screw | |
| 26 | 29330028191 | Attaching sleeve | |
| 27 | 29330000201 | RUBBER COVER | |
| 28 | 4011000151 | BOLT | |
| 29 | 4015000181 | WASHER | |
| 30 | 4013000016 | NUT | |
| 31 | 4011000090 | BOLT | |
| 32 | 4030000535 | OIL CUP | |
| 33 | 4030000750 | Sealing strip | |
| 34 | 29330046431 | Support | |
| 35 | 29330046441 | Pull rod | |
| 36 | 29330046451 | Pull rod | |
| 37 | 29330000171 | SHORT LINK | |
| 38 | 29330000181 | SHORT LINK | |
| 39 | 29330046461 | Cover plate | |
| 40 | 4011000081 | BOLT | |
| 41 | 29330050081 | Support | |
| 42 | 4015000186 | WASHER | |
| 43 | 29330041871 | Hand rail | |
| 44 | 29330031081 | Rubber sleeve | |
| 45 | 4130000075 | BOLT GB16674-M6x12EpZn-8.8 | |
| 46 | 4190002434 | Catch | |
| 47 | 4190002281 | Door lock | |
| 48 | 4011000099 | Screw | |
| 49 | 4015000205 | Washer | |
| 50 | 4190002284 | Washer | |
| 51 | 29360015191 | Emblem | |
| 52 | 29330000241 | TURN PLATE | |
| 53 | 4015000162 | Washer | |
| 54 | 4016000119 | PIN | |
| 55 | 4016000114 | PIN | |
| 56 | 4015000207 | WASHER | |
| 57 | 4090000052 | Sealing strip | |
| 58 | 4016000035 | SPLIT PIN | |
| 59 | 29340009091 | LINK ASSEM | |
| 60 | 29330041891 | Hand rail | |
| 61 | 4015000256 | WASHER | |
| 62 | 4013000033 | NUT | |
| 63 | 29330020211 | SPACER | |
| 64 | 29330020221 | SPACER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
