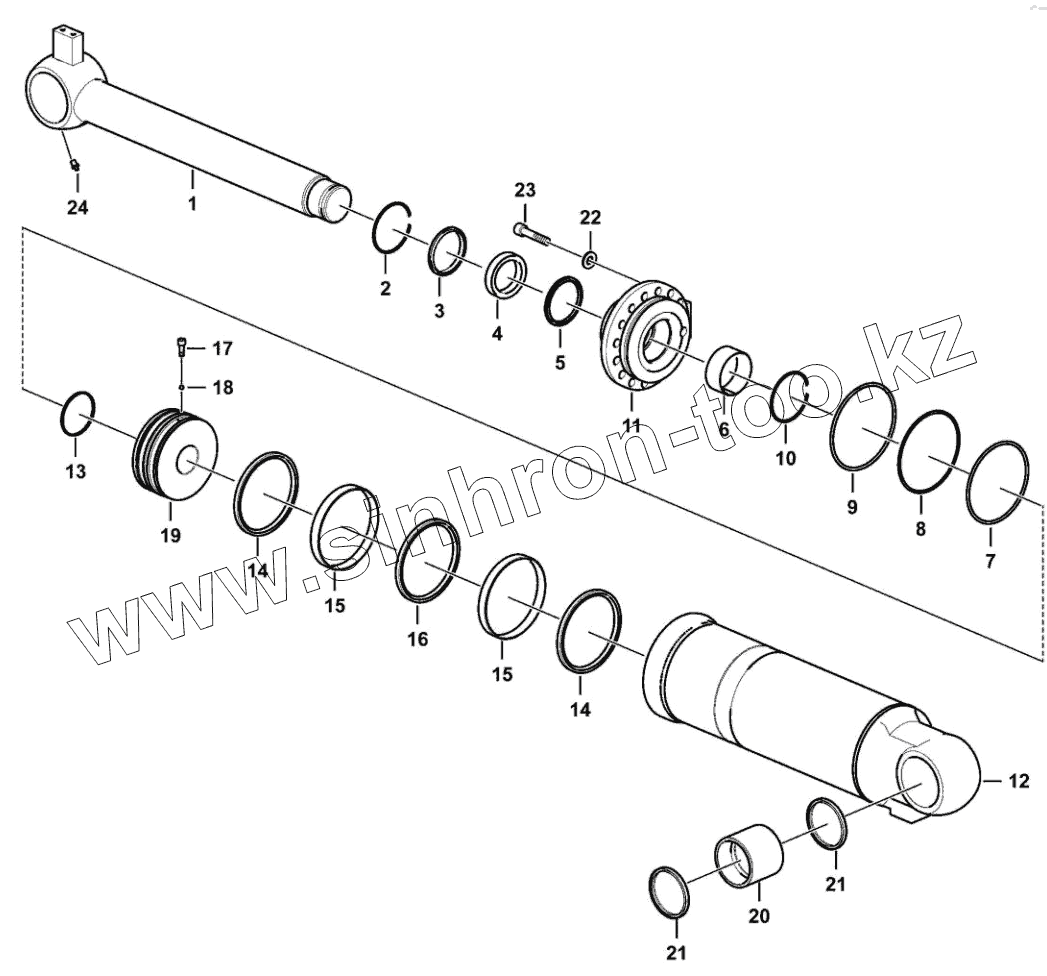

Каталог запасных частей к технике: SDLG LG958N. Lifting cylinder (3713CH)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
21
22
23
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120004336002 | Piston rod | |
| 2 | 4120004336003 | Sealing kit | |
| 3 | 4120004336001 | Sealing ring kit | |
| 4 | 4120004336001 | Sealing ring kit | |
| 5 | 4120004336001 | Sealing ring kit | |
| 6 | 4120004336001 | Sealing ring kit | |
| 7 | 4120004336001 | Sealing ring kit | |
| 8 | 4120004336001 | Sealing ring kit | |
| 9 | 4120004336001 | Sealing ring kit | |
| 10 | 4120004336004 | Retaining ring | |
| 11 | 4120004336005 | Cylinder head | |
| 12 | 4120004336006 | Cylinder body | |
| 13 | 4120004336001 | Sealing ring kit | |
| 14 | 4120004336001 | Sealing ring kit | |
| 15 | 4120004336001 | Sealing ring kit | |
| 16 | 4120004336001 | Sealing ring kit | |
| 17 | 4014000171 | SCREW GB70.1-M8x25-8.8 | |
| 18 | 4090000168 | Ball | |
| 19 | 4120004336007 | Piston | |
| 20 | 4120004336008 | Bushing | |
| 21 | 4120004336001 | Sealing ring kit | |
| 22 | 4015000098 | WASHER GB93-16-65Mn | |
| 23 | 4014000315 | Screw | |
| 24 | 4120004336009 | Seat |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
