Каталог запасных частей к технике: SDLG LG958L. ROCKER ARM BRACKET

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано B877 (2013) B877 (2017) G9138 (2020) G9190 (2013) L916 (2017) L938F (2016) L948 (2016) L948F (2015) L953N (2017) L956F (2017) L958F (2019) LG6150E LG6210E (2013) LG918 (2008) LG918 (2009) LG933 (2008) LG933 (2018) LG933L (2011) LG936 (2007) LG936 (2007) LG936L (2009) LG936L (2013) LG936L (2017) LG938 (2006) LG938 (2010) LG938F (2015) LG938L (2010) LG944MSK (2015) LG946L (2010) LG952 (2007) LG952 (2009) LG952H (2009) LG952H (2012) LG952N (2016) LG953 (2006) LG953 (2008) LG953 (2009) LG953N (2015) LG955N (2015) LG956 (2005) LG956F (2016) LG956FH (2017) LG956L (2009) LG956L (2015) LG956V (2015) LG958 (2006) LG958L (2009) LG958L (2012) LG958N (2013) LG958N (2015) LG968 (2007) LG968 (2009) LG969 (2007) LG969 (2009) LG969N (2015) LGB680 (2007)

Схема > Не выбрано ENGINE ASSEMBLY FUEL TANK ASSEMBLY RADIATOR ASSEMBLY PISTON COOL.NOZZLE CRANKSHAFT CONNECTING ROD CROSS REFER. LIST VALVE DRIVE OIL FILLER NECK VENT-PIPE CRANKCASE PRESSURESTAT ROCKER ARM BRACKET ROCKER ARM BRACKET ROCKER ARM BRACKET FASTENINGS CYLINDER HEAD BLANKING PARTS ROLLER TAPPET FUEL INJECT. PUMP FASTENINGS FASTENINGS RONTCOVER-OIL PUMP CAMSHAFT HIGH PRESSURE PIPE FASTENINGS FUEL INJECTOR FASTENINGS OIL COOLER BOX BLANKING PARTS BLANKING PARTS ACCESSORIES PRESSURESTAT RUBBER SEAL TURBOCHARGER BLANKING PARTS BLANKING PARTS LUBRICAT. OIL LINE LUBRICAT. OIL LINE FASTENINGS EXHAUST PIPE COVER CHARGE AIR PIPE HEATING FLANGE BLANKING PARTS FASTENINGS CONNECTION HOUSING CONNECTION HOUSING GENERATOR DRIVING PARTS NARROW V-BELT FAN SUPPORT FASTENINGS FAN BRACKET FASTENINGS FUEL SUPPLY PUMP FASTENINGS FUEL FILTER BASE ASSEMBLY FUEL LINE LOGIC ASSEMBLY FLANGE TENSIONING PULLEY FASTENERS - TENSIONER CRANKSHAFT PULLEY DEVICE NARROW V-BELT SET NARROW V-BELTS BLANKING PARTS BLANKING PARTSB BLANKING PARTS GEARCASE PLUG VALVE MECHAN.COVER LUBRIC. OIL FILTER FASTENINGS WATER THERMOSTAT GUIDE TUBE OIL GAUGE OIL PAN OIL SUCTION PIPE FLYWHEEL CRANKCASE BREATHER ENGINE MOUNTING STARTER FASTENINGS BLANKING PARTS BLANKING PAR HITCH LUG CONTROL UNIT PRESSURE SENSOR CABLE HARNESS BLANKING PARTS RELAY IMPULSETRANSMITTER FUEL LINE TACHO-GENERATOR FASTENINGS FASTENINGS VIBRATION DAMPER COOLING WATER LINE LUBRICAT. OIL LINE COMPRESSOR TRANSMISSION ASSEMBLY FRONT AXLE ASSEMBLY FRONT MAIN DRIVE FINAL DRIVE ASSEMBLY DRIVE SHAFT ASSEMBLY REAR AXLE ASSEMBLY REAR FINAL DRIVE DISK BRAKE (371328) TIRE GB2980-23.5-25 (520101) TIRE 23.5-25-18PR-L3 HYDRAULIC CONTROL ASSEMBLY WORKING PUMP ASSEMBLY LIFTING CYLINDER ASSEMBLY DUMP CYLINDER ASSEMBLY HYDRAULIC TANK ASSEMBLY TILT CYLINDER (371368) LIFT ARM CYLINDER (371368) CONTROL VALVE D32A-17.5 (331001) LIFT ARM CYLINDER (3713CH) TILT CYLINDER (3713CH) WORKING EQUIPMENT BUCKET ASSEMBLY STEERING PUMP ASSEMBLY STEERING GEAR ASSEMBLY STEERING CYLINDER ASSEMBLY STEERING CYLINDER (371401) STEERING CYLINDER (371368) STEERING CYLINDER (3713CH) SERVICE BRAKE ASSEMBLY AIR RESERVOIR BRAKE BOOSTER (340201) PARKING BRAKE SYSTEM BRAKE BOOSTER (330604) FRONT FRAME LAMP FRAME AND FRONT FENDER REAR FRAME AND ACCESSORIES COUNTER WEIGHT CAB ASSEMBLY CAB SEAT ASSEMBLY OPERATE BOX HOOD OF DIESEL ENGINE ASSEMBLY LEFT BENCH GROUP RIGHT BENCH GROUP SIGN AND LOGO BATTERY CASE TOOL CASE REAR STEERING LAMP HOOD EMPTY AIR CONDITIONER ELECTRICAL SYSTEM PANEL ASSEMBLY Y958DC PANEL ASSEMBLY

2

4

4

6

6

7

7

8

8

9

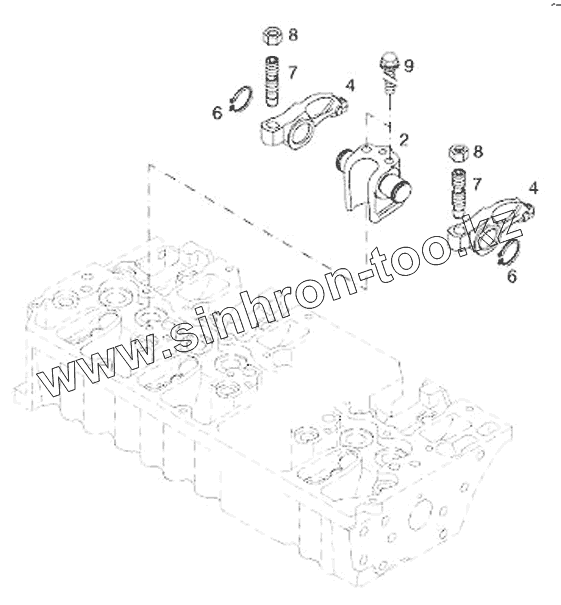

Позиция на иллюстрации	Заводской номер детали		Название детали
2	4110000970074		Rocker arm bracket
4	4110000970077		Rocker arm
6	4110000509094		Circlip
7	4110000970078		Adjusting screw
8	4110000509095		Hexagon nut
9	4110000727035		Hexagon bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
