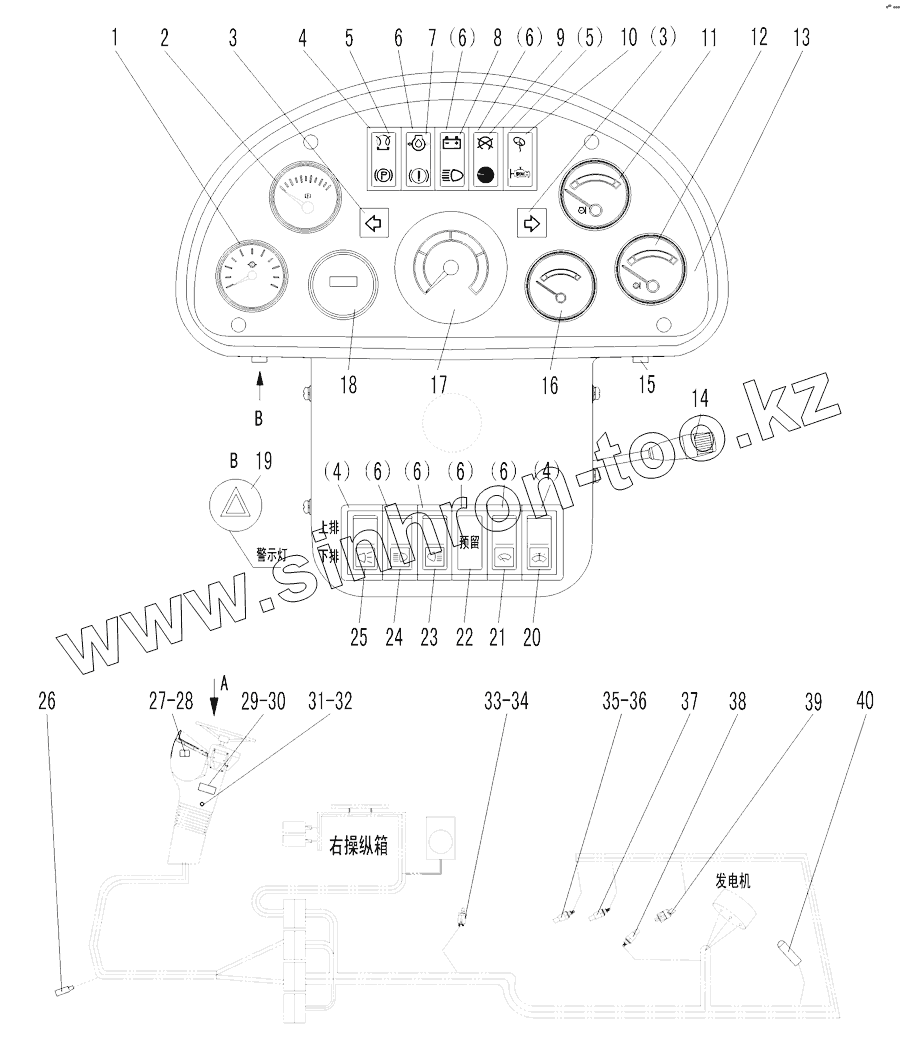

Каталог запасных частей к технике: SDLG LG958L. PANEL ASSEMBLY Y958DC
1
2
3
3
4
4
4
5
5
6
6
6
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4130000856 | GEARBOX MANOMETER | |
| 2 | 4130000858 | DIAL BAROMETER | |
| 3 | 4130000601 | STEERING INDICATED LAMP | |
| 4 | 4130000498 | SIDE FRAME | |
| 5 | 4130000625 | INDICATOR LAMP ASSEMBLY ZL2-ZJ3 | |
| 6 | 4130000497 | Switch panel | |
| 7 | 4130000626 | INDICATOR LAMP ASSEMBLY ZL2-ZJ4 | |
| 8 | 4130000627 | INDICATOR LAMP ASSEMBLY ZL2-ZJ5 | |
| 9 | 4130000628 | INDICATOR LAMP ASSEMBLY ZL2-ZJ6 | |
| 10 | 4130001111 | Indicator parts | |
| 11 | 4130000523 | Temperature gauge | |
| 12 | 4130000286 | OIL TEMPERATURE GAUGE | |
| 13 | 4130000608 | PANEL | |
| 14 | 4130000021 | COMBINED SWTICH | |
| 15 | 4130000875 | ELECTRIC SWITCH | |
| 16 | 4130000209 | FUEL LEVEL GAUGE | |
| 17 | 4130000421 | Speed gauge | |
| 18 | 4130000876 | CHRONOMETER RATE | |
| 19 | 4130000426 | ALARM BUTTON SWITCH | |
| 20 | 4130000499 | SPRAY WATER BUTTON-SWITCH | |
| 21 | 4130000493 | Rocker switch | |
| 22 | 4130000496 | CAP | |
| 23 | 4130000491 | Rocker switch | |
| 24 | 4130000490 | Rocker switch | |
| 25 | 4130000494 | REAR BIG LAMP BUTTON-SWITCH | |
| 26 | 4130000636 | Adjacent switch | |
| 27 | 4130000871 | FLASH APPARATUS | |
| 28 | 4130000587 | ALARM APPARATUS | |
| 29 | 4130001084 | Fuse box | |
| 30 | 29370017771 | Sign,fuse circuit | |
| 31 | 4130000331 | STANDBY PLUG | |
| 32 | 4130000332 | STANDBY SOCKET | |
| 33 | 4130000861 | PRESSURE TRANSDUCER | |
| 34 | 4130000879 | TRANSITION JOINT | |
| 35 | 4130000860 | PRESSURE TRANSDUCER | |
| 36 | 4130000878 | FILTERING JOINT M10x1 | |
| 37 | 4130000043 | Oil temperature sensor | |
| 38 | 4130001105 | Water temperrature sensor | |
| 39 | 4130001075 | Transition joint | |
| 40 | 4130000269 | OIL LEVEL SENSOR RG2268-M16A |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
