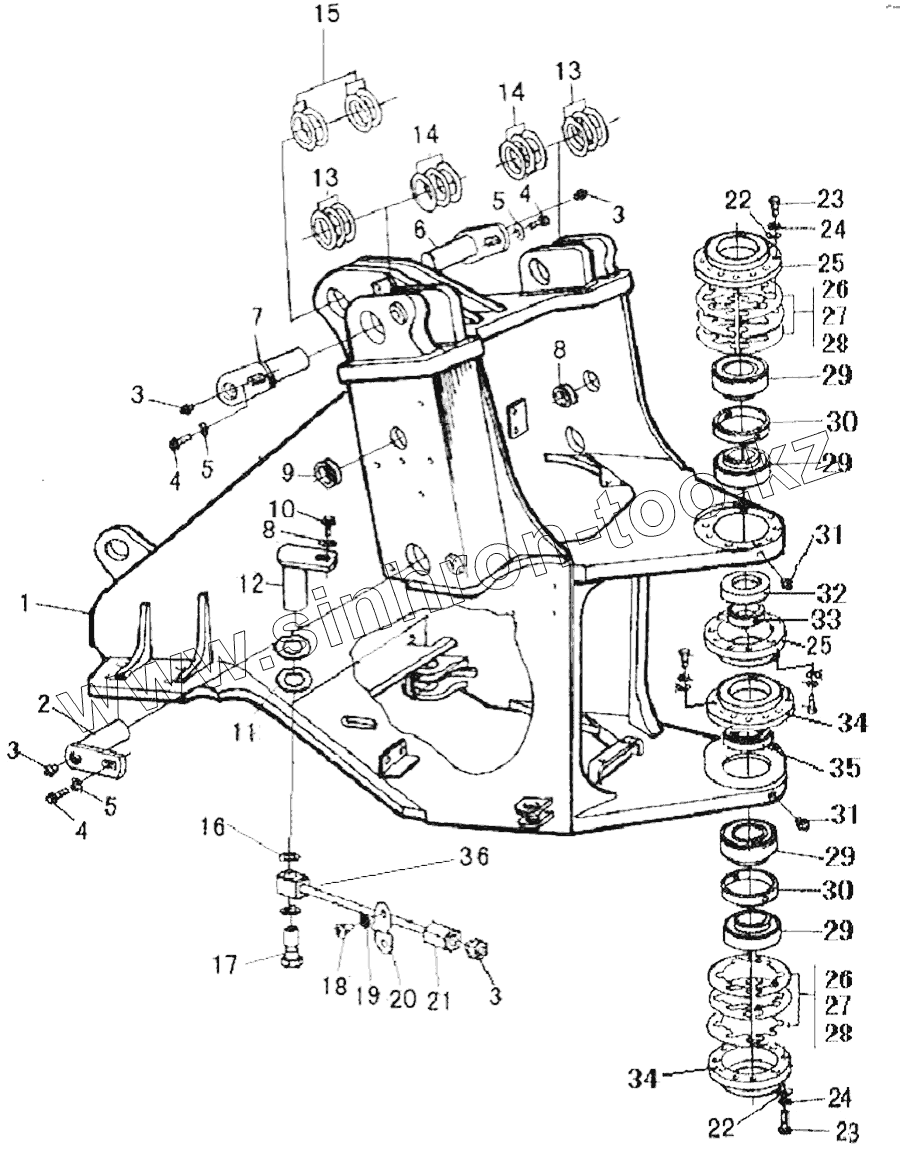

Каталог запасных частей к технике: SDLG LG958L. FRONT FRAME
1
2
3
3
3
3
4
4
4
5
5
5
6
7
8
8
9
10
11
12
13
13
14
14
15
16
17
18
19
20
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
29
29
30
30
31
31
32
33
34
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29240011611 | FRONT FRAME | |
| 2 | 29250009001 | Pin | |
| 3 | 4030000065 | GREASE NIPPLE | |
| 4 | 4011000094 | BOLT | |
| 5 | 4040000002 | WASHER | |
| 6 | 4043000017 | PIN | |
| 7 | 4043000019 | PIN LGB301-95x147x325-40Cr | |
| 8 | 4043000032 | SPACER GB303-50x90x1 | |
| 9 | 29250001351 | RUBBER SLEEVE | |
| 10 | 4011000197 | BOLT | |
| 11 | 4040000001 | WASHER | |
| 12 | 29250008121 | PIN | |
| 13 | 4043000040 | SPACER | |
| 14 | 4043000041 | SPACER LGB303-95x160x2 | |
| 15 | 4043000042 | SPACER LGB303-95x180x1 | |
| 16 | 29250000301 | WASHER | |
| 17 | 29250000291 | BOLT | |
| 18 | 4014000024 | SCREW | |
| 19 | 4015000035 | WASHER | |
| 20 | 29250000311 | PLATE | |
| 21 | 29250000321 | OIL TUBE | |
| 22 | 4015000026 | WASHER | |
| 23 | 4011000061 | BOLT GB5782-M12x35EpZn-8.8 | |
| 24 | 4015000168 | WASHER | |
| 25 | 29250000091 | DISC | |
| 26 | 29250000061 | SPACER | |
| 27 | 29250000071 | SPACER | |
| 28 | 29250000081 | SPACER | |
| 29 | 4021000058 | BEARING GB297-33116 | |
| 30 | 29250000051 | BUSH | |
| 31 | 4030000101 | FITING | |
| 32 | 4043000057 | PUSTRING | |
| 33 | 29250000041 | BUSH | |
| 34 | 29250000151 | DISC | |
| 35 | 4043000256 | SEAL RING GB9877.1-B80x150x10 | |
| 36 | 29250000201 | FRONT KINGPIN LUBRICATING OIL PIPE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
