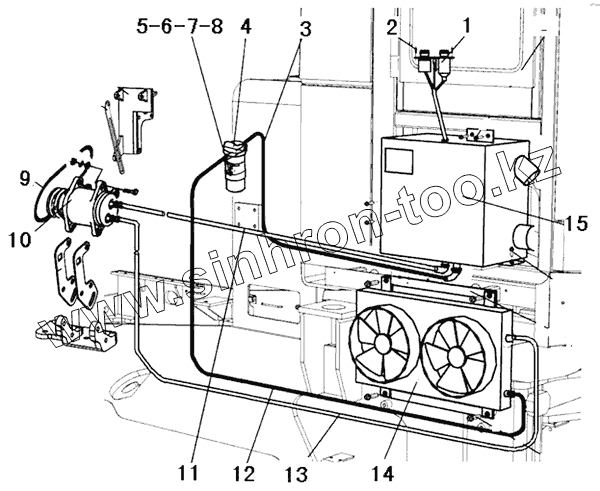

Каталог запасных частей к технике: SDLG LG958L. AIR CONDITIONER
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
B877 (2013)
B877 (2017)
G9138 (2020)
G9190 (2013)
L916 (2017)
L938F (2016)
L948 (2016)
L948F (2015)
L953N (2017)
L956F (2017)
L958F (2019)
LG6150E
LG6210E (2013)
LG918 (2008)
LG918 (2009)
LG933 (2008)
LG933 (2018)
LG933L (2011)
LG936 (2007)
LG936 (2007)
LG936L (2009)
LG936L (2013)
LG936L (2017)
LG938 (2006)
LG938 (2010)
LG938F (2015)
LG938L (2010)
LG944MSK (2015)
LG946L (2010)
LG952 (2007)
LG952 (2009)
LG952H (2009)
LG952H (2012)
LG952N (2016)
LG953 (2006)
LG953 (2008)
LG953 (2009)
LG953N (2015)
LG955N (2015)
LG956 (2005)
LG956F (2016)
LG956FH (2017)
LG956L (2009)
LG956L (2015)
LG956V (2015)
LG958 (2006)
LG958L (2009)
LG958L (2012)
LG958N (2013)
LG958N (2015)
LG968 (2007)
LG968 (2009)
LG969 (2007)
LG969 (2009)
LG969N (2015)
LGB680 (2007)
Схема
>
Не выбрано
ENGINE ASSEMBLY
FUEL TANK ASSEMBLY
RADIATOR ASSEMBLY
PISTON COOL.NOZZLE
CRANKSHAFT
CONNECTING ROD
CROSS REFER. LIST
VALVE DRIVE
OIL FILLER NECK
VENT-PIPE
CRANKCASE
PRESSURESTAT
ROCKER ARM BRACKET
ROCKER ARM BRACKET
ROCKER ARM BRACKET
FASTENINGS
CYLINDER HEAD
BLANKING PARTS
ROLLER TAPPET
FUEL INJECT. PUMP
FASTENINGS
FASTENINGS
RONTCOVER-OIL PUMP
CAMSHAFT
HIGH PRESSURE PIPE
FASTENINGS
FUEL INJECTOR
FASTENINGS
OIL COOLER BOX
BLANKING PARTS
BLANKING PARTS
ACCESSORIES
PRESSURESTAT
RUBBER SEAL
TURBOCHARGER
BLANKING PARTS
BLANKING PARTS
LUBRICAT. OIL LINE
LUBRICAT. OIL LINE
FASTENINGS
EXHAUST PIPE
COVER
CHARGE AIR PIPE
HEATING FLANGE
BLANKING PARTS
FASTENINGS
CONNECTION HOUSING
CONNECTION HOUSING
GENERATOR
DRIVING PARTS
NARROW V-BELT
FAN SUPPORT
FASTENINGS
FAN BRACKET
FASTENINGS
FUEL SUPPLY PUMP
FASTENINGS
FUEL FILTER BASE ASSEMBLY
FUEL LINE LOGIC ASSEMBLY
FLANGE
TENSIONING PULLEY
FASTENERS - TENSIONER
CRANKSHAFT PULLEY DEVICE
NARROW V-BELT
SET NARROW V-BELTS
BLANKING PARTS
BLANKING PARTSB
BLANKING PARTS
GEARCASE
PLUG
VALVE MECHAN.COVER
LUBRIC. OIL FILTER
FASTENINGS
WATER THERMOSTAT
GUIDE TUBE
OIL GAUGE
OIL PAN
OIL SUCTION PIPE
FLYWHEEL
CRANKCASE BREATHER
ENGINE MOUNTING
STARTER
FASTENINGS
BLANKING PARTS
BLANKING PAR
HITCH LUG
CONTROL UNIT
PRESSURE SENSOR
CABLE HARNESS
BLANKING PARTS
RELAY
IMPULSETRANSMITTER
FUEL LINE
TACHO-GENERATOR
FASTENINGS
FASTENINGS
VIBRATION DAMPER
COOLING WATER LINE
LUBRICAT. OIL LINE
COMPRESSOR
TRANSMISSION ASSEMBLY
FRONT AXLE ASSEMBLY
FRONT MAIN DRIVE
FINAL DRIVE ASSEMBLY
DRIVE SHAFT ASSEMBLY
REAR AXLE ASSEMBLY
REAR FINAL DRIVE
DISK BRAKE (371328)
TIRE GB2980-23.5-25 (520101)
TIRE 23.5-25-18PR-L3
HYDRAULIC CONTROL ASSEMBLY
WORKING PUMP ASSEMBLY
LIFTING CYLINDER ASSEMBLY
DUMP CYLINDER ASSEMBLY
HYDRAULIC TANK ASSEMBLY
TILT CYLINDER (371368)
LIFT ARM CYLINDER (371368)
CONTROL VALVE D32A-17.5 (331001)
LIFT ARM CYLINDER (3713CH)
TILT CYLINDER (3713CH)
WORKING EQUIPMENT
BUCKET ASSEMBLY
STEERING PUMP ASSEMBLY
STEERING GEAR ASSEMBLY
STEERING CYLINDER ASSEMBLY
STEERING CYLINDER (371401)
STEERING CYLINDER (371368)
STEERING CYLINDER (3713CH)
SERVICE BRAKE ASSEMBLY
AIR RESERVOIR
BRAKE BOOSTER (340201)
PARKING BRAKE SYSTEM
BRAKE BOOSTER (330604)
FRONT FRAME
LAMP FRAME AND FRONT FENDER
REAR FRAME AND ACCESSORIES
COUNTER WEIGHT
CAB ASSEMBLY
CAB
SEAT ASSEMBLY
OPERATE BOX
HOOD OF DIESEL ENGINE ASSEMBLY
LEFT BENCH GROUP
RIGHT BENCH GROUP
SIGN AND LOGO
BATTERY CASE
TOOL CASE
REAR STEERING LAMP HOOD
EMPTY
AIR CONDITIONER
ELECTRICAL SYSTEM
PANEL ASSEMBLY Y958DC
PANEL ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4130000418
Thermostat
2
4014000068
Screw
3
4120001515
PIPE RECEIVER-EVAPORATOR
4
4130000419
RECEIVER
5
4190000810
Moulding
6
4011000154
BOLT
7
4015000207
WASHER
8
4013000028
NUT
9
4110000302
DRIVING BELT A17-510
10
4110000301
DRIVING BELT A17-390
11
4130000420
COMPRESSOR ASSEMBLY
12
4120001516
PIPE EVAPORATOR-COMPRESSOR
13
4120001514
PIPE CONDENSER-RECEIVER
14
4120001513
PIPE COMPRESSOR-CONDENSER
15
4130000457
CONDENSER ASSEMBLY
16
4130000633
EVAPORATOR ASSEMBLY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
