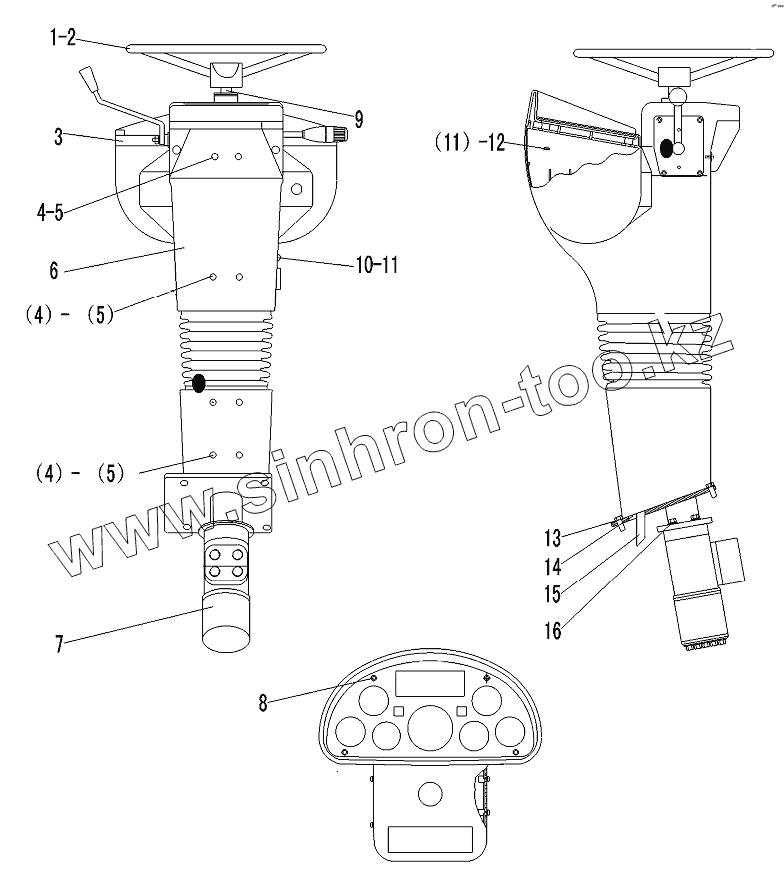

PANEL ASSEMBLY
PANEL ASSEMBLY
PANEL ASSEMBLY
1
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
12
13
14
15
16
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4120001548
STEERING WHEEL
2
4013000096
NUT
3
4130000605
SHELL
4
4014000088
SCREW
5
4015000110
WASHER
6
4190000636
STEER WHEEL COVER
7
4120001805
STEERING GEAR BZZ6-800
8
4014000164
SCREW
9
4120001703
STEERING COLUMU LG20-ZXZ-06
10
4014000040
SCREW
11
4015000207
WASHER
12
4014000026
SCREW
13
4011000320
BOLT
14
4190000831
FRAME
15
29050012271
OIL TUBE OF TRASMISSION PRESSURE
16
4011000474
BOLT
