DUMP CYLINDER ASSEMBLY

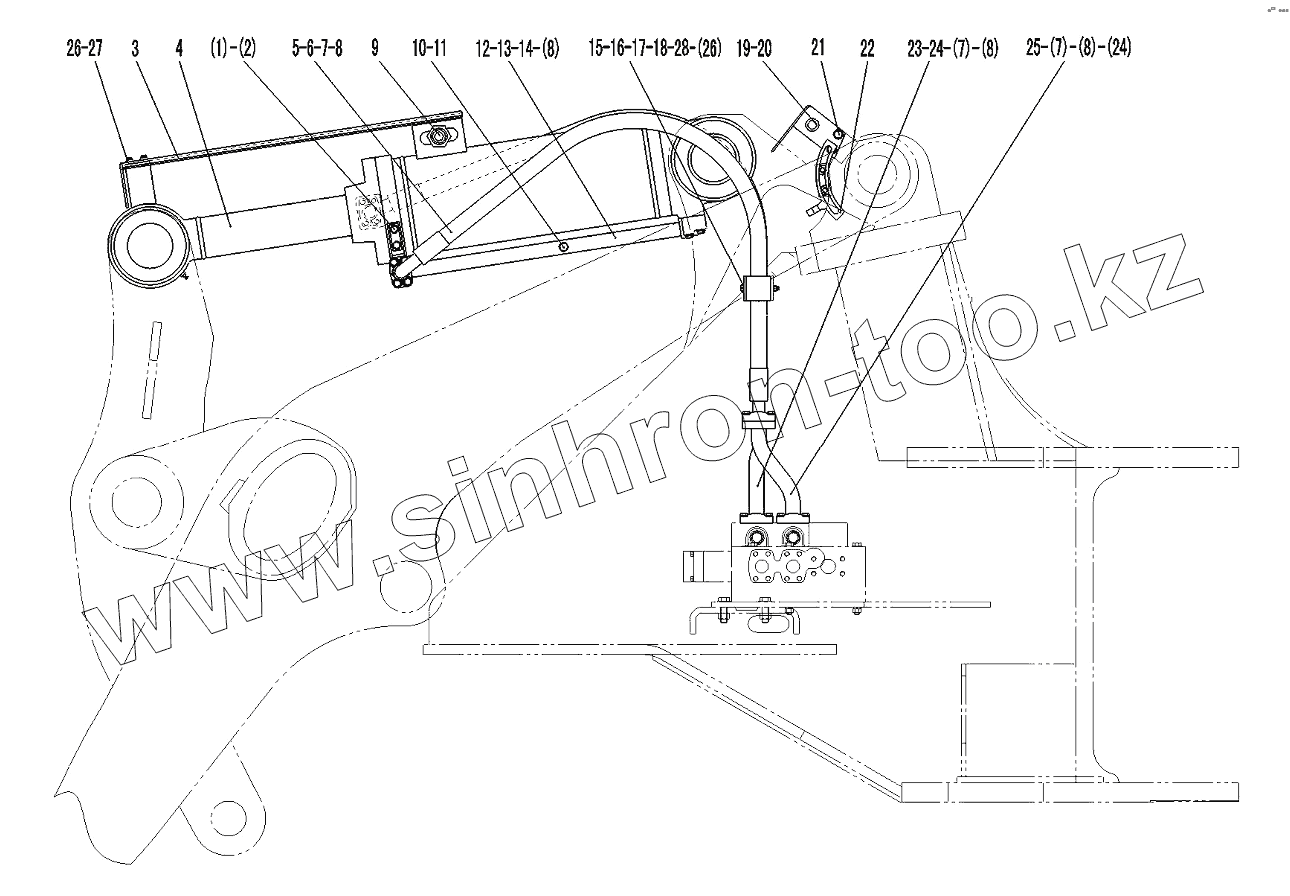

Каталог запасных частей к технике: SDLG LG958L. DUMP CYLINDER ASSEMBLY
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
B877 (2013)
B877 (2017)
G9138 (2020)
G9190 (2013)
L916 (2017)
L938F (2016)
L948 (2016)
L948F (2015)
L953N (2017)
L956F (2017)
L958F (2019)
LG6150E
LG6210E (2013)
LG918 (2008)
LG918 (2009)
LG933 (2008)
LG933 (2018)
LG933L (2011)
LG936 (2007)
LG936 (2007)
LG936L (2009)
LG936L (2013)
LG936L (2017)
LG938 (2006)
LG938 (2010)
LG938F (2015)
LG938L (2010)
LG944MSK (2015)
LG946L (2010)
LG952 (2007)
LG952 (2009)
LG952H (2009)
LG952H (2012)
LG952N (2016)
LG953 (2006)
LG953 (2008)
LG953 (2009)
LG953N (2015)
LG955N (2015)
LG956 (2005)
LG956F (2016)
LG956FH (2017)
LG956L (2009)
LG956L (2015)
LG956V (2015)
LG958 (2006)
LG958L (2009)
LG958L (2012)
LG958N (2013)
LG958N (2015)
LG968 (2007)
LG968 (2009)
LG969 (2007)
LG969 (2009)
LG969N (2015)
LGB680 (2007)
Схема
>
Не выбрано
DIESEL ENGINE ASSEMBLY
FUEL TANK ASSEMBLY
RADIATOR ASSEMBLY
GOVERNOR CONTROL SYSTEM
AIR HEATER STARTING 9141 AID
APPROVAL, AGENCY AP 9484
PLUMBING, CY BLK LBC BB9093
PLUMBING, CYL BLK COOLANT BB9099
BLOCK, ENGINE BB9110
HOUSING, FRONT GEAR 9881
BREATHER, CRANKCASE BR 9198
PLUMBING, CPR COOLANT CC9287
PLUMBING, COO HTR STG AID CH9087
ARRANGEMENT, CPR AIR INLE CI9168
COMPRESSOR, AIR CP 9551
DAMPER, VIBRATION DA9728
MOUNTING, FRO GER TRA AC DF9159
ACCESSORIES, ELECTRICAL EA9077
ACCESSORIES, ELECTRICAL EA9089
THERMOSTAT EC9702
DOCUMENTATIO, ENG IDT ED9071
ALTERNATOR EE9176
MOUNTINT, ALTERNATOR EH9434
DEVICE, SIGNAL GENERATING EO9135
DRIVE, FAN FA9371
DRIVE, FAN FA9739
PLUMBING, AIR FUEL CONTR FE9050
FILTER, FUEL FF 9340
PLUMBING, FUEL FILTER FF 9489
HOUSING, FLYWHEEL FH 9464
PUMP, FUEL FP90506
MOUNTING, FUEL PUMP FP90636
ACCESSORIES, FUEL SUPP FS9724
PLUMBING, FUEL FT 9142
VALVE, FUEL SHUTOFF FV 9373
FLYWHEEL FW 9826
MOUNTING, FLYWHEEL FW90025
COVER,FRONT GEAR GG 9779
MOUNTING, GEAR COVER GG 9804
GOVERNOR,AIR COMPRESSOR GV 9035
PLUMBING,CABIN HEATER HC 9073
BRACKET, LIFTING LA 9068
COOLER,ENGINE OIL LC 9227
FILTER M LUBRICATING OIL LF 9130
GAUGE,OIL LEVEL LG 9939
OIL,ENGINE LO 9701
PUMP,LUBRICATING OIL LP 9725
ARRANGEMENT,OIL FILL OB 9329
COVER,HAND HOLE OB 9337
PAN, OIL OP 9352
PULLEY, ACCESSORY PA 9001
PERFORMANCE, PARTS PP40722
PLUMBING,HEAD CYLINDER PP98457
TURBOCHARGER PP98560
PLUMBING,INJECTOR PP98841
VENT, ENGINE COOLANT RP 9036
MOUNTING,STARTING MOTOR SM 9104
SPACE,FAN SP 9078
PAINT SS 9471
MOTOR, STARTING ST 9345
ARRANGEMENT,TURBOCHARGER TB91070
MANIFOLD, EXHAUST TB91072
AFTERCOOLER TB91073
COOLER, TOR CONVERTER TK 9022
LEVER,THROTTLE TL 9098
TOOL,SERVICE TO L006
PLUMBING,TURBOCHARGER TP97293
COVER, VALVE VC 9221
PLUMBING,AFT WATER WA 9754
RESISTOR, CORROSION WF 9094
CONNECTION, WATER INLE WI 9145
CONNECTION, WATER OUTL WO 9052
TENSIONER, BELT WP 9916
PUMP, WATER WP 9918
DRIVE,WATER PUMP WP 9967
CONNECTOR,TUR OUTLET XS 9268
LEVER, ROCKER RL 9732
TRANSMISSION ASSEMBLY
ENGINE CONNECT ASSEMBLY 4644 130
INPUT 4644 102
GEARBOX HOUSING ASSEMBLY 4644 101
LAYSHAFT 4644 108
COUPLNG KV+K1 4644 151
COUPLNG KR+K2 4644 152
COUPLNG 4644 153
OUTPUT 4644 103
PARKING BRAKE 4644 109
PARKING BRAKE 0501 003
POWER TAKE-OFF 4644 154
POWER TAKE-OFF 4644 155
GEARSHIFT SYST 4644 106
GEARSHIFT SYST 4644 159
PRESS.REGULATOR 4644 120
FILTER 4644 138
EMCY.STEER.PUMP 644 137
IND.TRANSMITTER 4644 125
FILLER NECK 4644 131
OIL PIPES 644 121
LOOSE PARTS 4644 199
FRONT AXLE ASSEMBLY
FRONT AXLE MAIN DRIVE ASSEMBLY
FINAL DRIVE ASSEMBLY
DRIVE SHAFT GROUP
REAR AXLE ASSEMBLY
REAR AXLE MAIN DRIVE ASSEMBLY
DISK BRAKE (371328)
TIRE GB2980-23.5-25 (520101)
TIRE 23.5-25-18PR-L3 (371002)
HYDRAULIC CONTROL ASSEMBLY
WORKING PUMP ASSEMBLY
LIFTING CYLINDER ASSEMBLY
DUMP CYLINDER ASSEMBLY
HYDRAULIC TANK ASSEMBLY
TILT CYLINDER (371368)
LIFT ARM CYLINDER (371368)
WORKING EQUIPMENT
BUCKET ASSEMBLY
STEERING PUMP ASSEMBLY
STEERING GEAR ASSEMBLY
STEERING CYLINDER ASSEMBLY
STEERING CYLINDER (371368)
SERVICE BRAKE SYSTEM
AIR RESERVOIR
BRAKE BOOSTER (340201)
PARKING BRAKE SYSTEM
FRONT FRAME
ARTICULATION
LAMP FRAME AND FRONT FENDER
REAR FRAME AND ACCESSORIES
COUNTER WEIGHT
CAB ASSEMBLY
CAB
OPERATE BENCH
SEAT ASSEMBLY
OPERATE BOX
HOOD OF DIESEL ENGINE ASSEMBLY
LEFT BENCH GROUP
RIGHT BENCH GROUP
REAR STEERING LAMP HOOD
SIGN AND LOGO
BATTERY CASE
TOOL CASE
WARMING MACHINE
AIR CONDITIONER SYSTEM
WARMING MACHING
ELECTRIC SYSTEM
PANEL ASSEMBLY
PANEL ASSEMBLY
PANEL ASSEMBLY
1
2
3
4
5
6
7
7
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
26
27
28
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4011000081
BOLT
2
4015000162
Washer
3
29140010011
SET LEVEL GUARD SHEET
4
4120002264
TILT CYLINDER HSGF-190x100x545-1085
5
29140009661
PIPE OF TILT CYLINDER
6
4041000056
FLANGE
7
4011000475
BOLT
8
4030000029
O-RING
9
4130000607
ADJACENT SWICH J7-D10C2
10
4041000774
PLUG
11
4041000767
O-RING
12
4011000309
BOLT
13
4011000473
BOLT
14
29140000051
OIL-TUBE TO BIG CHAMBER OF THE TILT CYLINDER
15
29140000121
PRESS PLATE
16
29140000131
RUBBER PLATE
17
29140009291
RUBBER PLATE
18
4011000797
BOLT GB5782-M10x110EpZn-8.8
19
4130000679
ADJACENT SWICH J7-D10C2/08
20
29140007541
FRAME OF ADJACENT SWICH
21
4011000137
BOLT
22
29140007551
INDICATIONG PLATE OF LIFTING CYLINDER
23
29140000161
TUBE OF TILT CYLINDER
24
4041000027
FLANGE
25
29140000141
TUBE OF TILT CYLINDER
26
4015000197
WASHER
27
4011000082
BOLT
28
29140010821
STEEL TUBE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
