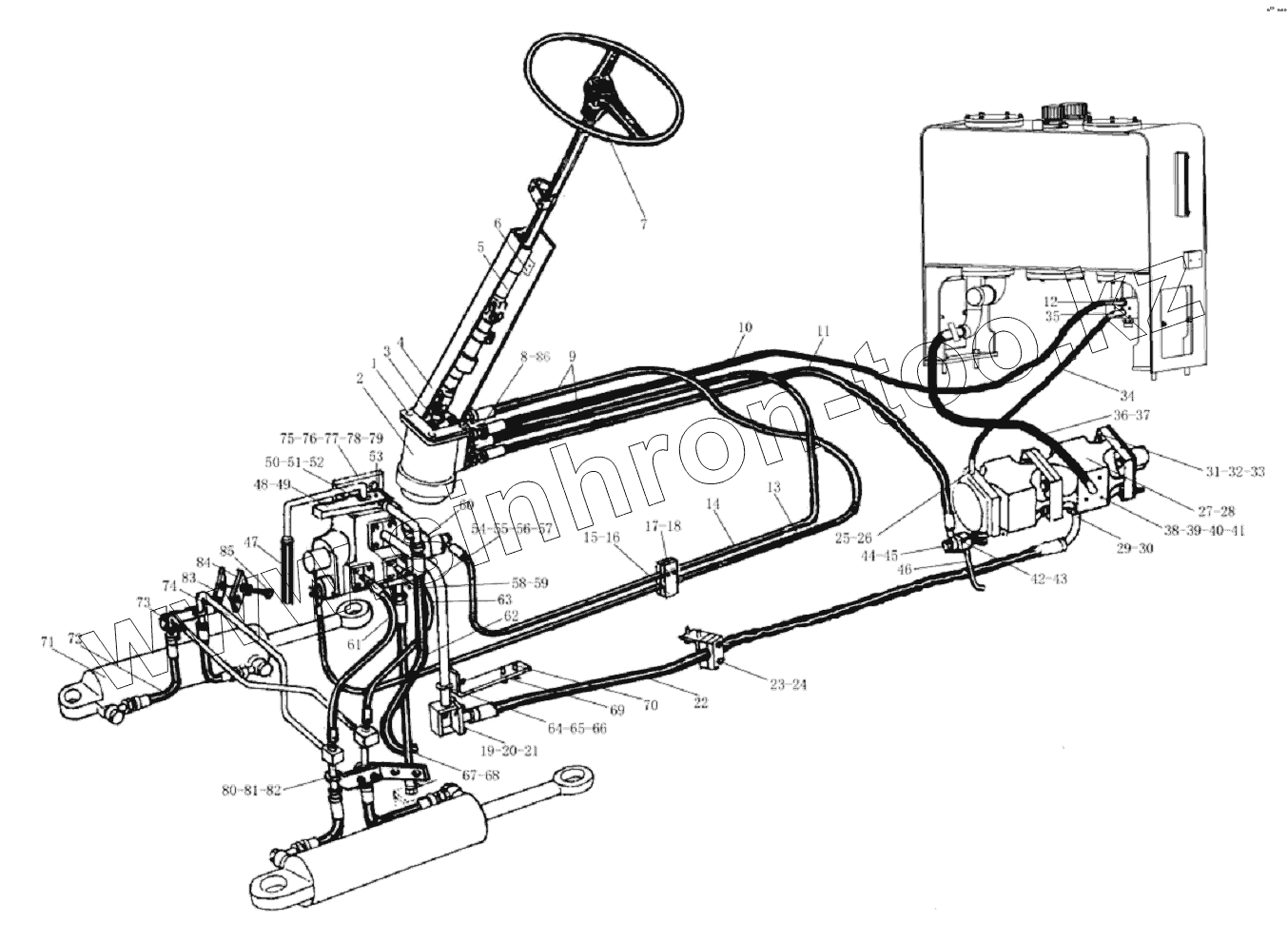

Каталог запасных частей к технике: SDLG LG958. STEERING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4011000479 | BOLT | |
| 2 | 4120001002 | STEERING GEAR BZZ3-100 | |
| 3 | 4011000473 | BOLT | |
| 4 | 2920000002 | FIXED MOUNT | |
| 5 | 4120001433 | STEERING POLE LG20-ZXZ-02 | |
| 6 | 4011000458 | BOLT | |
| 7 | 4120000360 | STEERING WHEEL | |
| 8 | 4041000541 | ADAPTER LGB12001820 | |
| 9 | 4041000539 | TUBE LGB124005090 | |
| 10 | 4041000149 | TUBE LGB124005180 | |
| 11 | 4041000673 | PIPE LGB124-005100 | |
| 12 | 4041000150 | STAIGHT JOINT | |
| 13 | 4041000152 | TUBE LGB125005120 | |
| 14 | 4041000153 | TUBE LGB125005080 | |
| 15 | 4011000447 | BOLT | |
| 16 | 2920000004 | OIL VALVE BLOCK | |
| 17 | 4041000156 | PLUG LGB13501421 | |
| 18 | 4041000767 | O-RING | |
| 19 | 4041000026 | FLANGE | |
| 20 | 4011000475 | BOLT | |
| 21 | 4030000026 | O-RING | |
| 22 | 2919000752 | PIPE OF FLUX AMPLIFIER T0PUMP | |
| 23 | 4011000447 | BOLT | |
| 24 | 2919000002 | CLIP | |
| 25 | 2919000792 | STRAIGHT JIONT | |
| 26 | 4030000057 | WASHER | |
| 27 | 4120000171 | TWO-WAY FLOW PUMP | |
| 28 | 2911000754 | SEAL SPACER OF PUMP | |
| 29 | 4041000056 | FLANGE | |
| 30 | 4030000029 | O-RING | |
| 31 | 4012000003 | DOUBLE-SCREW BOLT | |
| 32 | 4015000168 | WASHER | |
| 33 | 4013000011 | NUT | |
| 34 | 4041000209 | PIPE LGB124-005105 | |
| 35 | 4041000150 | STAIGHT JOINT | |
| 36 | 2919000803 | OIL PIPE OF TWO-WAY FLOW PUMP | |
| 37 | 4017000013 | CLAMP | |
| 38 | 2919000791 | OIL TUBE OF TWO-WAY FLOW PUMP | |
| 39 | 4011000479 | BOLT | |
| 40 | 4030000235 | O-RING | |
| 41 | 4041000011 | FLANGE | |
| 42 | 2919000793 | THREE-WAY CONNECTION | |
| 43 | 4011000339 | BOLT | |
| 44 | 4041000156 | PLUG LGB13501421 | |
| 45 | 4030000238 | O-RING | |
| 46 | 2919000804 | OIL PIPE OF SELECTOR VALVE | |
| 47 | 4041000154 | TUBE LGB125014070 | |
| 48 | 4120000451 | PRESSURE RELIEF VALVE SXH25 | |
| 49 | 4030000026 | O-RING | |
| 50 | 2921000774 | ANGULAR PIPE UNION | |
| 51 | 4011000475 | BOLT | |
| 52 | 4041000026 | FLANGE | |
| 53 | 4014000144 | BOLT GB70.1-M10x70EpZn-8.8 | |
| 54 | 2921000002 | OIL INLET PIPE | |
| 55 | 4041000027 | FLANGE | |
| 56 | 4011000479 | BOLT | |
| 57 | 4030000029 | O-RING | |
| 58 | 4041000156 | PLUG LGB13501421 | |
| 59 | 4030000238 | O-RING | |
| 60 | 4120000504 | PILOT-ACINATED VALVE ZLF25A | |
| 61 | 2921000003 | OIL INLET PIPE | |
| 62 | 2921000023 | OIL RETURN PIPE FOR VALVE | |
| 63 | 2921000004 | OIL INLET PIPE | |
| 64 | 4011000556 | U-BOLT | |
| 65 | 4015000162 | Washer | |
| 66 | 4013000007 | NUT | |
| 67 | 4041000540 | TUBE LGB161012049 | |
| 68 | 4041000144 | FLANGED LGB117312552 | |
| 69 | 2921000005 | SET FRAME | |
| 70 | 4011000447 | BOLT | |
| 71 | 4120000553 | STEERING CYLINDER HSGL-90x50x424-835 | |
| 72 | 4041000158 | TUBE LGB124006058 | |
| 73 | 2921000006 | A-OIL INLET PIPE | |
| 74 | 2921000007 | B-OIL INLET PIPE | |
| 75 | 4011000482 | BOLT GB16674-M14x30EpZn-8.8 | |
| 76 | 2921000008 | SET FRAME | |
| 77 | 4011000054 | BOLT GB5782-M12x120EpZn-8.8 | |
| 78 | 4013000011 | NUT | |
| 79 | 4015000168 | WASHER | |
| 80 | 4011000555 | U-BOLT JB/ZQ4321-18Zn-Q235A>F | |
| 81 | 4015000207 | WASHER | |
| 82 | 4013000028 | NUT | |
| 83 | 2921000009 | SET FRAME | |
| 84 | 2921000010 | RUBBER SPACER | |
| 85 | 4011000474 | BOLT | |
| 86 | 4041000783 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
