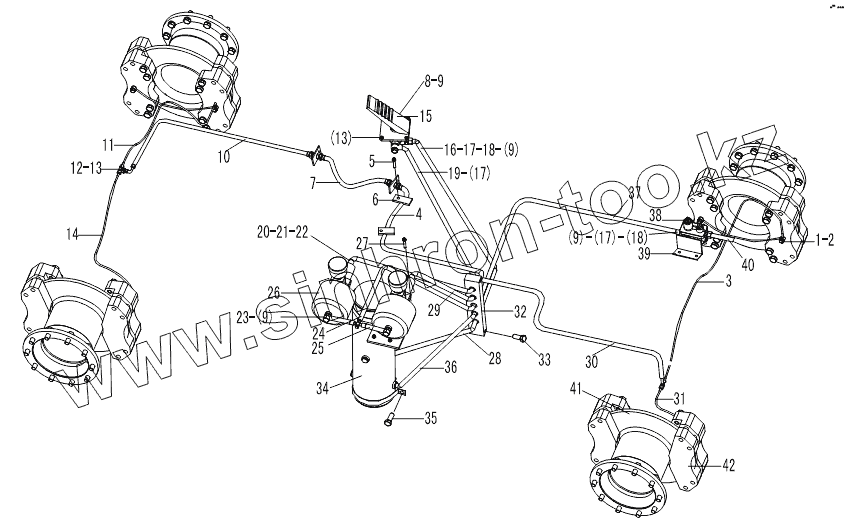

Каталог запасных частей к технике: SDLG LG958. SERVICE BRAKE SYSTEM
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
13
14
15
16
17
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2922000002 | WASHER | |
| 2 | 2922000003 | CONNECTOR | |
| 3 | 2922000004 | TUBE OF REAR AXLE | |
| 4 | 2922000057 | TUBE TO FRONT AXLE | |
| 5 | 4011000461 | BOLT | |
| 6 | 2901000003 | CLIP | |
| 7 | 2922000046 | FORERUNNER TUBE | |
| 8 | 4030000055 | PLUG JB1000-M22x1.5-35 | |
| 9 | 2901000006 | WASHER | |
| 10 | 2922000011 | TUBE OF BRAKE | |
| 11 | 2922000047 | TUBE OF FRONT AXLE | |
| 12 | 2922000013 | TEE OF THE OIL LINE | |
| 13 | 4011000455 | BOLT | |
| 14 | 2922000049 | TUBE OF FRONT AXLE | |
| 15 | 4120001328 | BRAKE VALVE | |
| 16 | 2922000058 | TUE TO AIR RESERVOIR | |
| 17 | 2901000005 | WASHER | |
| 18 | 2901000007 | CONNECTOR | |
| 19 | 2922000059 | TUBE TO BOOSTER | |
| 20 | 2922000016 | CONNECTOR | |
| 21 | 2922000017 | WASHER | |
| 22 | 2922000812 | TUBE TO FRONT BOOSTER | |
| 23 | 2901000004 | BOLT | |
| 24 | 2922000813 | TUBE TO BRAKE VALVE | |
| 25 | 2922000015 | TEE OF THE OIL LINE | |
| 26 | 4120000675 | BOOSTER | |
| 27 | 4011000474 | BOLT | |
| 28 | 2922000068 | TUBE FROM AIR RESERVOIR TO DUMMY PLATE | |
| 29 | 2922000814 | TUBE TO BACK BOOSTER | |
| 30 | 2922000063 | TUBE TO REAR AXLE | |
| 31 | 2922000018 | TUBE OF REAR AXLE | |
| 32 | 2922000064 | TUBE OF BRAKE | |
| 33 | 4011000477 | BOLT | |
| 34 | 2922000053 | AIR RESERVOIR | |
| 35 | 4011000560 | BOLT | |
| 36 | 2901001137 | TUBE | |
| 37 | 2901000919 | TUBE | |
| 38 | 4120000084 | AIR DYER | |
| 39 | 2901000924 | SHOE PLATE | |
| 40 | 2901000756 | TUBE | |
| 41 | 2907000007 | BRAKE DISH | |
| 42 | 4110000012 | DISC BRAKE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
