  5. IMPLEMENT HYDRAULIC SYSTEM

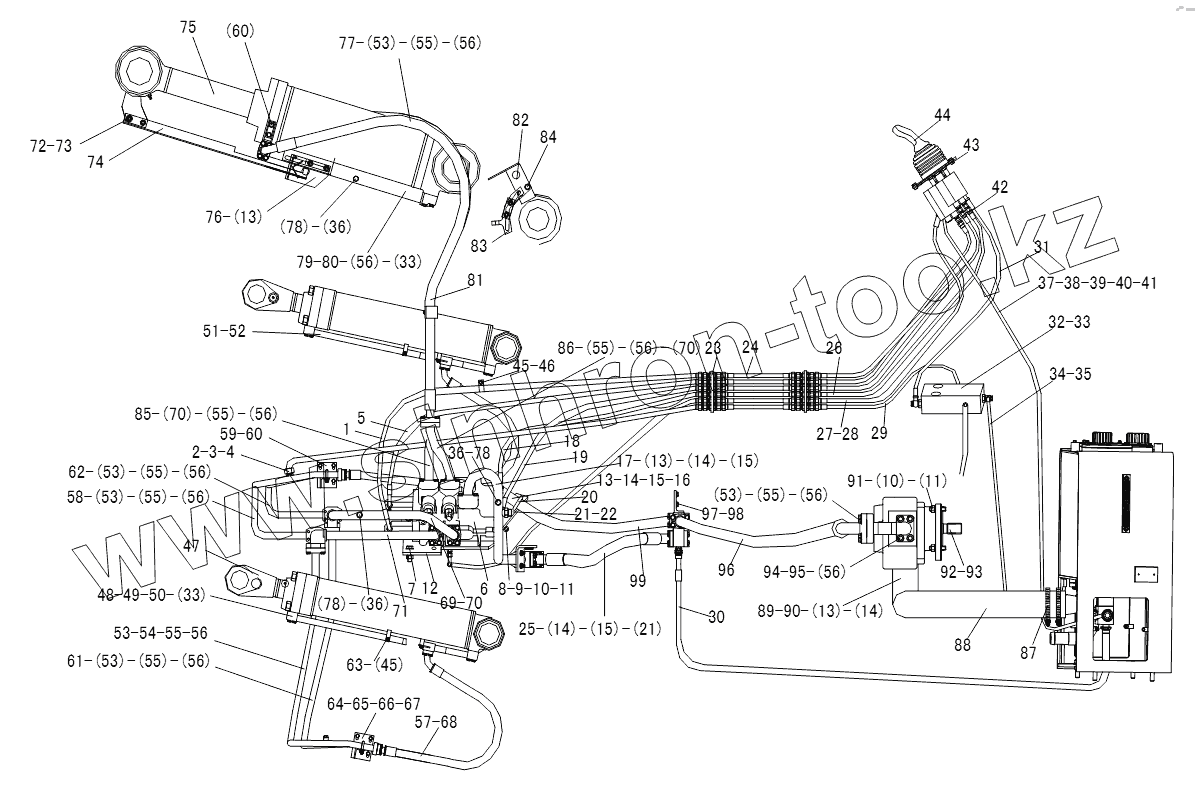

Каталог запасных частей к технике: SDLG LG958. IMPLEMENT HYDRAULIC SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
13
13
13
14
14
14
14
15
15
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
33
34
35
36
36
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
52
53
53
53
53
53
53
54
55
55
55
55
55
55
55
55
56
56
56
56
56
56
56
56
56
56
57
58
59
60
60
61
62
63
64
65
66
67
68
69
70
70
70
71
72
73
74
75
76
77
78
78
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
Позиция на иллюстрации Заводской номер детали Название детали
1 4041000505 PIPE LGB125-005138
2 4041000506 PIPE LGB128-005126
3 2912000766 JOINT
4 4030000057 WASHER
5 4041000503 PIPE LGB161-005126
6 4120000413 CONTROL VALVE D32-18
7 4011000149 BOLT GB16674-M16x50EpZn-8.8
8 4011000056 BOLT
9 4011000057 BOLT
10 4015000168 WASHER
11 4013000011 NUT
12 2912000754 SET PLATE OF OIL INLET TUBE
13 4011000479 BOLT
14 4041000011 FLANGE
15 4030000130 O-RING
16 2912000006 OIL INLET TUBE OF MULTIPLE VALVE
17 2912000003 OIL RETURN TUBE OF THE CONTROL VALVE
18 4041000501 PIPE LGB125-005065
19 4041000502 PIPE LGB161-005075
20 4011000557 U-BOLT JB/ZQ4321-42Zn-Q235A.F
21 4011000477 BOLT
22 2912000005 FRAME
23 2912000760 TWO-WAY PILOT OIL PIPE GROUP
24 4041000504 PIPE LGB129-005085
25 4041000166 TUBE LGB161014120
26 2912000763 PIPE OF PILOT
27 2912000762 PIPE OF PILOT VALVE 2C
28 4011000344 BOLT
29 2912000764 REAR PIPE FROM LIFTING CYLINDER TO SELECTION VALVE
30 4041000687 TUBE LGB165010130
31 2912000757 PIPE SELECTION VALVE TO PILOT VALVE
32 4120000448 PRESSURE SELECTION VALVE
33 4011000473 BOLT
34 2912000756 OIL RETURN PIPE FOR SELECTION VALVE
35 4041000150 STAIGHT JOINT
36 4041000767 O-RING
37 4041000095 CONNECTER
38 4030000058 WASHER
39 2912000761 OIL RETURN PIPE OF PILOT VALVE
40 4041000768 O-RING LGB168-11524
41 4011000366 BOLT
42 2912000765 JOINT
43 4011000447 BOLT
44 4120000370 MONOLEVER PILOT VALVE DXS-OO
45 4011000458 BOLT
46 2912000767 PIPE CLIP
47 4120000555 LIFT CYLINDER HSGF-165x90x767-1427
48 4030000026 O-RING
49 2913000002 OIL TUBE OF SMALL CHAMBER LEFT LIFTING CYLINDER
50 2913000003 OIL TUBE OF BIG CHAMBER LEFT LIFTING CYLINDER
51 2913000004 OIL TUBE OF SMALL CHAMBER RIGHT LIFTING CYLINDER
52 2913000005 OIL TUBE OF BIG CHAMBER RIGHT LIFTING CYLINDER
53 4011000475 BOLT
54 2913000006 SMALL CHAMBER TUBE OF LIFT CYLINDER
55 4041000056 FLANGE
56 4030000029 O-RING
57 4041000043 FLANGE
58 2913000007 SMALL CHAMBER TUBE OF LIFT CYLINDER
59 2913000008 CLAMPING PLATE
60 4011000488 BOLT
61 2913000755 OIL TUBE OF LIFTING CYLINDER
62 2913000757 OIL TUBE OF LIFTING CYLINDER
63 2913000011 CAMPLE
64 2913000012 CLAMPING PLATE
65 4011000556 U-BOLT
66 4013000007 NUT
67 4015000162 Washer
68 2913000033 OIL PIPE OF LIFTING CYLINDER
69 2913000752 BIG THREE-WAY OIL TUBE TO CHAMBER OF LIFTING CYLINDER
70 4041000027 FLANGE
71 2913000014 THREE TUBE OF LIFT CYLINDER
72 4011000145 BOLT
73 4013000013 NUT
74 2914000756 INDICATIN PLATE OF TILTING CYLINDER
75 4120000904 TILT CYLINDER HSGF-180x90x538-1092P
76 2914000758 FRAME OF ADJACENT SWITCH
77 4041000169 TUBE LGB106012165
78 4041000774 PLUG
79 4011000309 BOLT
80 2914000005 BIG CHAMBER TUBE OF TILT CYLINDER
81 2914000006 CLAMP OF TILT CYLINDER
82 2914000754 FRAME OF ADJACENT SWITCH
83 2914000755 INDICATIN PLATE OF LIFTING CYLINDER
84 4011000137 BOLT
85 2914000016 OIL TUBE ASSEMBLY OF TILT CYLINDER B
86 2914000014 OIL TUBE ASSEMBLY OF TILT CYLINDER A
87 4017000013 CLAMP
88 2911000836 OIL INLET PIPE OF WORKING PUMP
89 2911000756 OIL INLET TUBE OF WORKING PUMP
90 4030000235 O-RING
91 4012000003 DOUBLE-SCREW BOLT
92 4120000903 WORKING PUMP CBGJ3100C
93 2911000754 SEAL SPACER OF PUMP
94 4011000279 BOLT GB16674-M10x60EpZn-8.8
95 2911000102 TUBE
96 4041000055 PIPE LGB106-012085
97 4011000474 BOLT
98 2911000755 VALVE
99 4041000164 TUBE LGB105012120
