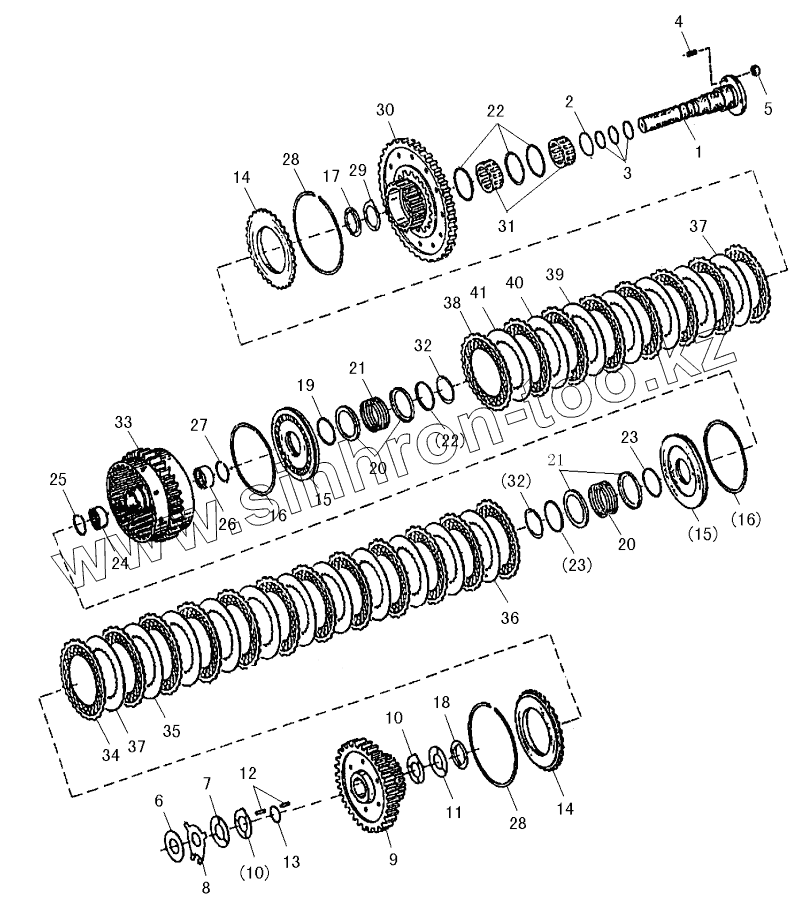

Каталог запасных частей к технике: SDLG LG958. COUPLING CLUTCH 152
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
15
15
16
16
17
18
19
20
20
21
21
22
22
23
23
24
25
26
27
28
28
29
30
31
32
32
33
34
35
36
37
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | AXLE | AXLE | |
| 2 | O-RING | O-RING | |
| 3 | PISTONRING | PISTON RING | |
| 4 | STUD8x30 | STUD M8x30 | |
| 5 | NUТМ8 | НЕХАGОN NUТ М8 | |
| 6 | SНIМ | SНIМ | |
| 7 | THRUSTWASHER | THRUST WASHER | |
| 8 | THRUSTWASHER | THRUST WASHER | |
| 9 | SPURGEAR | SPUR GEAR | |
| 10 | THRUSTWASHER | THRUST WASHER | |
| 11 | THRUSTWASHER | THRUST WASHER | |
| 12 | ROLLERSET | ROLLER SET | |
| 13 | WАSНЕR | WАSНЕR | |
| 14 | SНIМ | SНIМ | |
| 15 | PISTON | PISTON | |
| 16 | SЕАLRING | SЕАL RING | |
| 17 | THRUSTWASHER | THRUST WASHER | |
| 18 | THRUSTWASHER | THRUST WASHER | |
| 19 | SЕАLRING | SЕАL RING | |
| 20 | SРRING | SРRING | |
| 21 | GUIDE.RING | GUIDE.RING | |
| 22 | V-RINGAV55 | V-RING AV55 | |
| 23 | GUIDE.RING | GUIDE.RING | |
| 24 | NEEDLESLEEVE | NEEDLE SLEEVE | |
| 25 | SNАРRING | SNАР RING | |
| 26 | NEEDLESLEEVE | NEEDLE SLEEVE | |
| 27 | SNАРRING | SNАР RING | |
| 28 | SNАРRING | SNАР RING | |
| 29 | WАSНЕR | WАSНЕR | |
| 30 | SPURGEAR | SPUR GEAR | |
| 31 | BALLBEARING | BALL BEARING | |
| 32 | ANGLERING | ANGLE RING | |
| 33 | DISCCARRIER | DISC CARRIER | |
| 34 | OUTERDISC | OUTER CLUTCH DISC | |
| 35 | INNERDISC | INNER CLUTCH DISC | |
| 36 | INNERDISC | INNER CLUTCH DISC | |
| 37 | INNERDISC | INNER CLUTCH DISC | |
| 38 | OUTERDISC | OUTER CLUTCH DISC | |
| 39 | INNERDISC | INNER CLUTCH DISC | |
| 40 | INNERDISC | INNER CLUTCH DISC | |
| 41 | INNERDISC | INNER CLUTCH DISC |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
