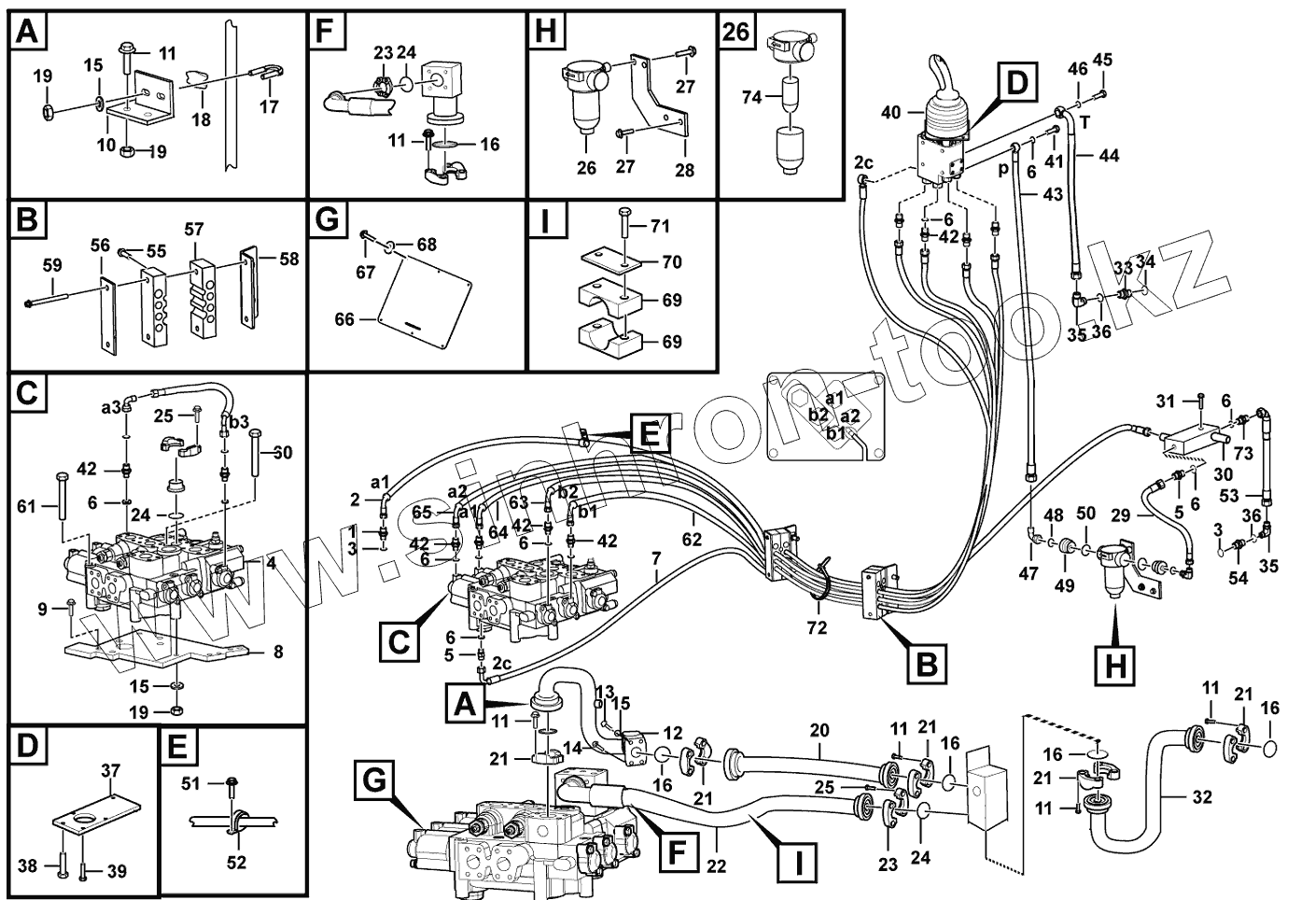

Каталог запасных частей к технике: SDLG LG956V. Hidraulic control assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
5
5
6
6
6
6
6
6
6
6
7
8
9
10
11
11
11
11
11
11
12
13
14
15
15
15
16
16
16
16
16
17
18
19
19
19
20
21
21
21
21
21
22
23
23
24
24
24
25
25
26
26
27
27
28
29
30
30
31
32
33
34
35
35
36
36
37
38
39
40
41
42
42
42
42
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
61
62
63
64
65
66
67
68
69
69
70
71
72
73
74
Позиция на иллюстрации Заводской номер детали Название детали
1 4041000604 JOINT
2 29120016561 OIL PIPE
3 4041000767 O-RING
4 4120002303 Control valve
5 29120007651 JOINT
6 29120014931 WASHER
7 29120016551 FRONT PILOT PIPE
8 29120015091 Anchor plate
9 4011000149 BOLT GB16674-M16x50EpZn-8.8
10 29120015121 Anchor plate
11 4011000477 BOLT
12 29120015201 Pipe
13 4011000261 Bolt
14 4011000186 BOLT
15 4015000168 WASHER
16 4030000130 O-RING
17 4041000954 U-BOLT LGB159-14254
18 4041000955 BOTTOM SHEET LGB160-4254
19 4013000011 NUT
20 4041001263 PIPE LGB161-414118
21 4041000011 FLANGE
22 29120015191 Hose assembly
23 4041000056 FLANGE
24 4030000029 O-RING
25 4011000475 BOLT
26 4120001954 STRAINER
27 4011000447 BOLT
28 29120016021 PLATE
29 4041001537 Hose assembly
30 4120005063 Valve
31 4011000473 BOLT
32 4041001536 Hose assembly
33 4041000766 Nipple
34 4041000768 O-RING LGB168-11524
35 4041001063 CONNECTOR LGB143-01810
36 4030000490 O-RING
37 29120016431 Cover
38 4014000058 SCREW
39 4011000488 BOLT
40 4120002027 PILOT VALVE
41 4011000344 BOLT
42 29120015401 FITTING
43 29120018731 Hose assembly
44 29120015981 Hose assembly
45 4011000366 BOLT
46 29120015221 WASHER
47 4041001023 JOINT
48 4030000240 O-RING
49 29120015081 JOINT
50 4030000276 O-RING
51 4011000461 BOLT
52 29120007671 CLAMP
53 4041001538 Hose assembly
54 4041000150 STAIGHT JOINT
55 4011000560 BOLT
56 29120016951 MOUNTED PLATE
57 29120016741 CLAMP
58 29120016351 MOUNTED PLATE
59 4011000493 BOLT
60 4011000056 BOLT
61 4011000057 BOLT
62 29120016571 PIPE
63 29120016581 PIPE
64 29120016601 PIPE
65 29120016591 PIPE
66 29120014012 FRONT CAP
67 4011000081 BOLT
68 4015000197 WASHER
69 29140001141 RUBBER PLATE
70 29140001131 PRESS PLATE
71 4011000136 BOLT GB16674-M10x85EpZn-8.8
72 4190000020 CLIP
73 29120007661 Nipple
74 4120001954001 Filter insert
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
