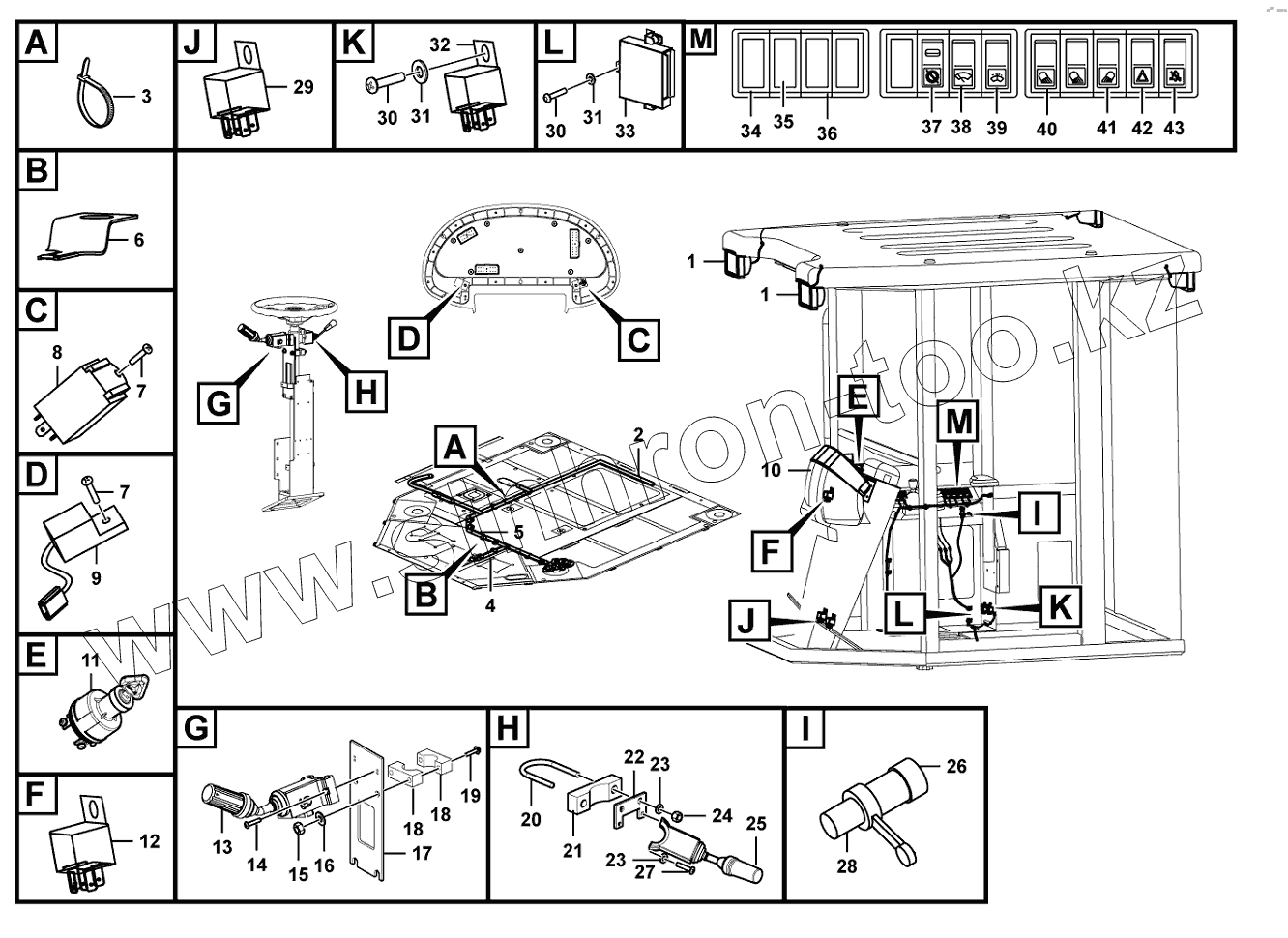

Каталог запасных частей к технике: SDLG LG956V. Electric assembly-cab
1
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
23
24
25
26
27
28
29
30
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4130001685 | Lamp | |
| 2 | 29370025561 | Cable harness | |
| 3 | 4190001839 | Cable tie | |
| 4 | 29370023963 | Cable harness | |
| 5 | 29370025571 | Cable harness | |
| 6 | 4130001450 | Clip | |
| 7 | 4014000066 | Screw | |
| 8 | 4130000022 | FLASH RELAY SG252 | |
| 9 | 4130001291 | Buzzer | |
| 10 | 4130001906 | Display panel | |
| 11 | 11217633 | Starter switch | |
| 12 | 4130000869 | Relay | |
| 13 | 4130002409 | Steer column switch | |
| 14 | 4014000170 | Screw | |
| 15 | 4013000007 | NUT | |
| 16 | 4015000162 | Washer | |
| 17 | 29370014731 | Bracket | |
| 18 | 29310011251 | MOUNTING PLATE | |
| 19 | 4011000476 | BOLT | |
| 20 | 29370013561 | U-bolt | |
| 21 | 29370013551 | Clamp | |
| 22 | 29370013541 | Bracket | |
| 23 | 4015000207 | WASHER | |
| 24 | 4013000028 | NUT | |
| 25 | 4130000021 | COMBINED SWTICH | |
| 26 | 4130000331 | STANDBY PLUG | |
| 27 | 4014000026 | SCREW | |
| 28 | 4130000332 | STANDBY SOCKET | |
| 29 | 4130000912 | Relay | |
| 30 | 4014000048 | SCREW | |
| 31 | 4015000110 | WASHER | |
| 32 | 4130000869 | Relay | |
| 33 | 4130001126 | Control unit | |
| 34 | 4130000498 | SIDE FRAME | |
| 35 | 4130000496 | CAP | |
| 36 | 4130000497 | Switch panel | |
| 37 | 4130000504 | Rocker switch | |
| 38 | 4130000493 | Rocker switch | |
| 39 | 4130000499 | SPRAY WATER BUTTON-SWITCH | |
| 40 | 4130000491 | Rocker switch | |
| 41 | 4130000490 | Rocker switch | |
| 42 | 4130000492 | Rocker switch | |
| 43 | 4130001052 | Rocker switch |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
