(371368) Tilt cylinder
Каталог запасных частей к технике: SDLG LG956V. (371368) Tilt cylinder
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
B877 (2013)
B877 (2017)
G9138 (2020)
G9190 (2013)
L916 (2017)
L938F (2016)
L948 (2016)
L948F (2015)
L953N (2017)
L956F (2017)
L958F (2019)
LG6150E
LG6210E (2013)
LG918 (2008)
LG918 (2009)
LG933 (2008)
LG933 (2018)
LG933L (2011)
LG936 (2007)
LG936 (2007)
LG936L (2009)
LG936L (2013)
LG936L (2017)
LG938 (2006)
LG938 (2010)
LG938F (2015)
LG938L (2010)
LG944MSK (2015)
LG946L (2010)
LG952 (2007)
LG952 (2009)
LG952H (2009)
LG952H (2012)
LG952N (2016)
LG953 (2006)
LG953 (2008)
LG953 (2009)
LG953N (2015)
LG955N (2015)
LG956 (2005)
LG956F (2016)
LG956FH (2017)
LG956L (2009)
LG956L (2015)
LG956V (2015)
LG958 (2006)
LG958L (2009)
LG958L (2012)
LG958N (2013)
LG958N (2015)
LG968 (2007)
LG968 (2009)
LG969 (2007)
LG969 (2009)
LG969N (2015)
LGB680 (2007)
Схема
>
Не выбрано
Engine system
Accelerator pedal assembly
Cover plate
Fuel tank assembly
Fuel tank assembly
Cooling system
Expansion tank assembly
Radiatror
Radiator assembly
Filter
Transmission assembly
Vrt200 transmission assembly
Power take off component
Torque converter assembly
Cover assembly
Lubrucating system
Safety valve assembly
Intermediate gear for power take-off
Seat
Transmission assembly
Hydraulic ciutch fr
Intermediate shaft assembly
Hydraulic clutch k34
Reverse idle gear assembly
Hidrauydic clutce k12
Dropbox assembly
1/2 shaft assy
Intermediate shaft assembly
3/4 shaft assy
Output shaft assembly
Power teke-off component
Handbrake
Trasmission control valve assemble
Front axle system
Front axle assembly
Hub reduction
(371104) Brake caliper assembly
(371328) Brake caliper assembly
(360301) Brake caliper assembly
Front final drive assembly
Propeller shaft system
Rear axle system
Real axle assembly
Hub reduction
Rear final drive assembly
Hydraulic fluid tank
Hydraulic fluid tank
Working pump assembly
(370142) Gear pump
(120104) Gear pump
Hidraulic control assembly
Control valve
(331001) Control valve assembly
(370142) Control valve assembly
(331005) Valve
Lifting cylinder assembly
(3713CH) Lift arm cylinder
(371368) Lift arm cylinder
Dump cylinder assembly
(3713CH) Tilt cylinder
(371368) Tilt cylinder
(370142) Gear pump
(370101) Gear pump
Linkage structure
Lifting frame work parts
Steering pump assembly
Steering unit assembiy
Steering cylinder assembly
(3713CH) Steering cylinder
(371368) Steering cylinder
(371401) Steering cylinder assembly
Service brake system
Air reservoir
(330604) Brake booster
(340201) Pneumatic cylinder assembly
Pneumatic cylinder
Stop brake assembly
Front frame
Front frame accessory
Rear frame
Rear frame and accessories
Counterweigh
Cab
Cab external parts assembly
Cab inner parts assembly
Cab trim assembly
Seat assembly
LG01(321013) Drive seat
LG01(321002) Drive seat
Cab accessory
Bonnet
Operating box
Bracket
Hood of diesel engine assembly
Cover system
Foot step
Platform
Ladder
Left benh group
Rear steering lamp hood
Decal set
Air conditioner
Air conditioning unit
(330112) Evaporator
(410706) Evaporator
(330112) Condenser assembly
Electric assembly-power
Electrical assembly-front frame
Electrical assembly-rear frame
Electric assembly-cab
(3713EE) Working lamp assembly
Electric assembly-engine
Electric assembly-hood
(2.8m3) Bucket assembliy
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
16
17
18
19

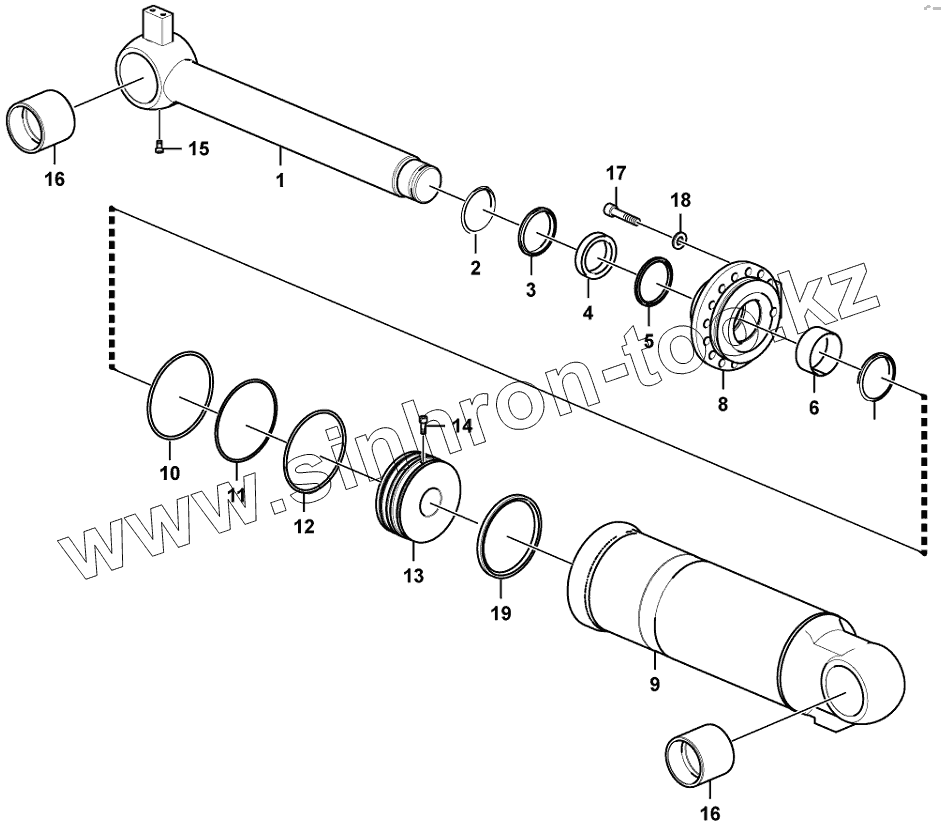

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4120002264102
PISTON ROD HSGF-190/100x545-1
2
4120002264101
SEALING MEMBER AGGREGATE
3
4120002264101
SEALING MEMBER AGGREGATE
4
4120002264101
SEALING MEMBER AGGREGATE
5
4120002264101
SEALING MEMBER AGGREGATE
6
4120002264101
SEALING MEMBER AGGREGATE
7
4120002264101
SEALING MEMBER AGGREGATE
8
4120002332003
Cover hsgf-190/100*545-2
9
4120002264104
CYLINDER BODY HSGF-190/100x545-3
10
4120002264101
SEALING MEMBER AGGREGATE
11
4120002264101
SEALING MEMBER AGGREGATE
12
4120002264101
SEALING MEMBER AGGREGATE
13
4120002264105
PISTON HSGF-190/100x545-4
14
4120002264009
Screw
15
4120000933309
Oil cup jb/t7940.1-95 m10x1
16
4120001822108
Bushing hsgf-180/90*542-5
17
4011000791
BOLT GB5785-M18x1.5x70EpZn-10.9
18
4015000029
WASHER
19
4120002264101
SEALING MEMBER AGGREGATE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
