Каталог запасных частей к технике: SDLG LG956V. (370142) Gear pump
1
2
2
3
4
5
5
5
6
6
7
7
8
8
8
9
9
9
10
10
12
13
14
15
15
16
16
17
18
18
19
19
20
21
22
23
24
24
25
26
27
27
28
28
29
29
29
30
30
30
31
31
32
33
34
35
35
36
37
38
39

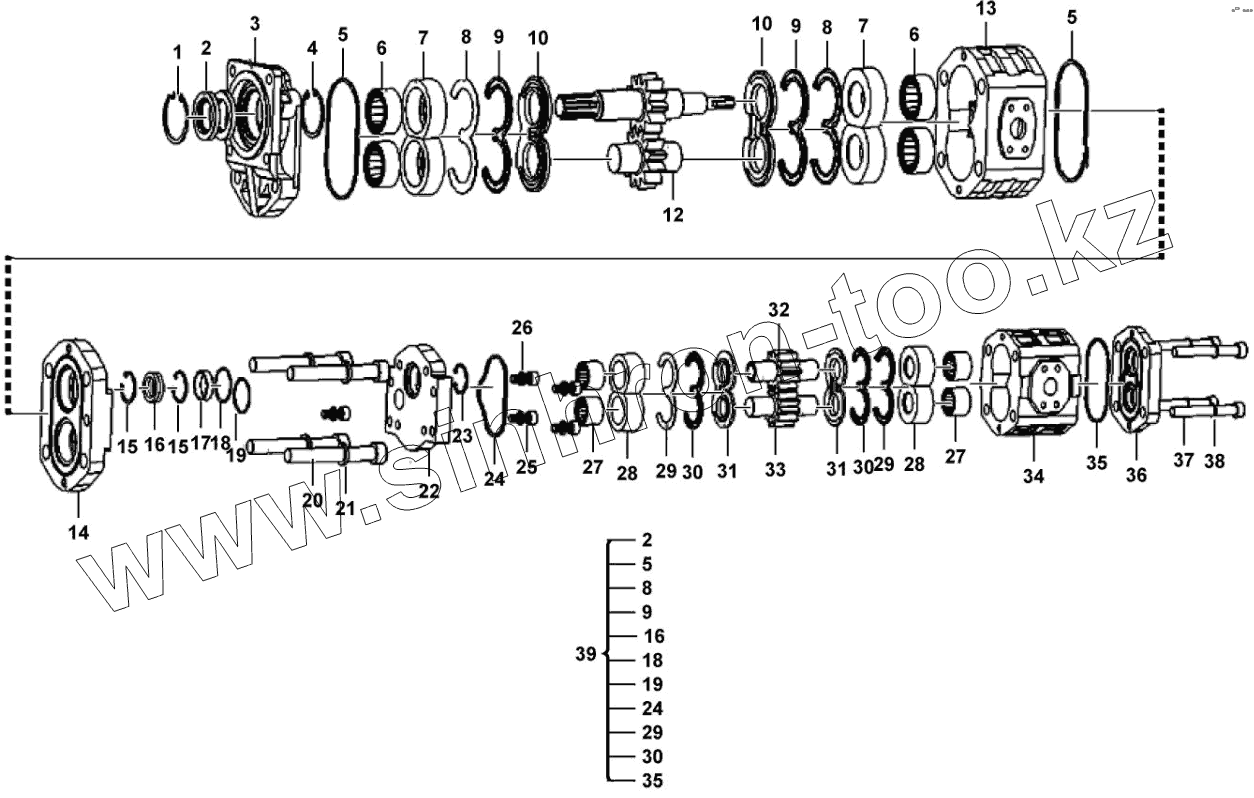

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4015000013 | RETAINER RING | |
| 2 | 4120001715002 | Sealing ring | |
| 3 | 4120000903041 | Cover | |
| 4 | 4015000491 | Retaining ring | |
| 5 | 4120005081002 | Sealing ring | |
| 6 | 4120001715006 | Needle bearing | |
| 7 | 4120001715007 | Spacer sleeve | |
| 8 | 4120001715008 | Retaining ring | |
| 9 | 4120001715009 | Sealing washer | |
| 10 | 4120001715010 | Side board | |
| 11 | 4120003117001 | Drive shaft | |
| 12 | 4120000903043 | Shaft | |
| 13 | 4120000903044 | Pump body | |
| 14 | 4120003117002 | Centering block | |
| 15 | 4015000204 | RING SNAP GB893.1-42-65Mn | |
| 16 | 4030000263 | Sealing ring | |
| 17 | 4120005081009 | Engag | |
| 18 | 4030000030 | O-RING GB3452.1-40.0x2.65G | |
| 19 | 4120005081008 | O-ring | |
| 20 | 4120000903045 | Screw | |
| 21 | 4015000030 | WASHER | |
| 22 | 4120005081012 | Centering block | |
| 23 | 4015000244 | Snap ring | |
| 24 | 4120000171060 | Sealing ring | |
| 25 | 4014000090 | Bolt | |
| 26 | 4015000026 | WASHER | |
| 27 | 4120000171061 | Needle bearing | |
| 28 | 4120000171062 | Spacer sleeve | |
| 29 | 4120000171063 | Retaining ring | |
| 30 | 4120000171064 | Sealing washer | |
| 31 | 4120000171065 | Side board | |
| 32 | 4120003117003 | Drive shaft | |
| 33 | 4120003117004 | Shaft | |
| 34 | 4120003117005 | Pump body | |
| 35 | 4120005081016 | Sealing ring | |
| 36 | 4120005081017 | Cover | |
| 37 | 4120003117006 | Screw | |
| 38 | 4015000027 | WASHER | |
| 39 | 4120003117017 | Sealing ring kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
