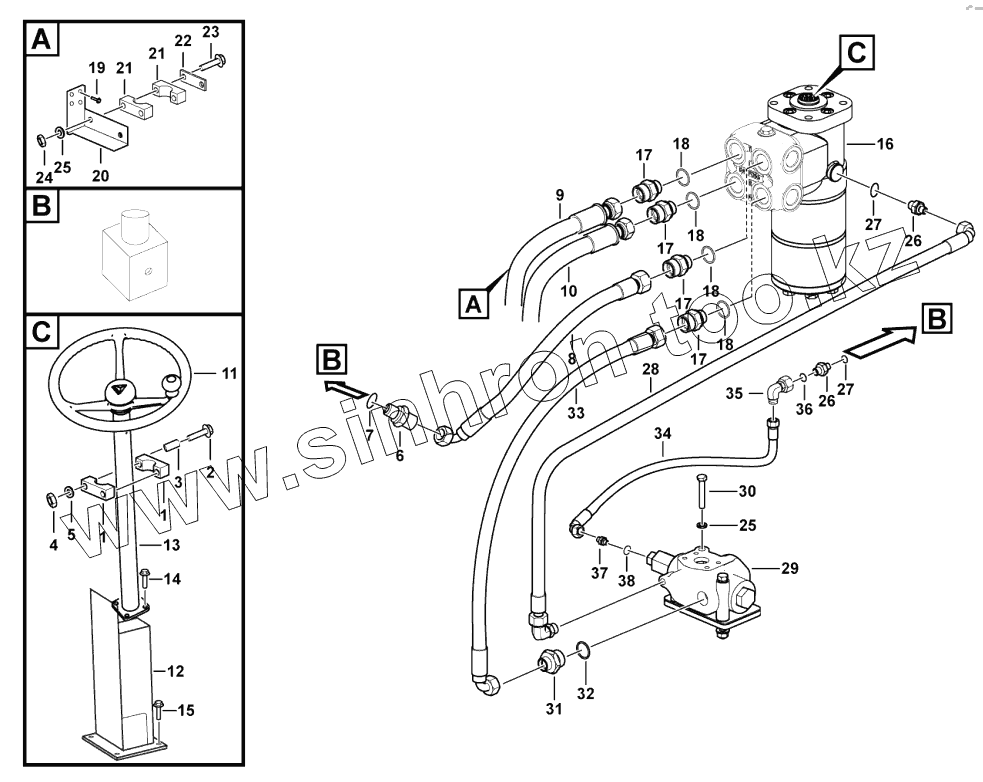

Каталог запасных частей к технике: SDLG LG956L. Steering gear system
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
18
18
18
18
19
20
21
21
22
23
24
25
25
26
26
27
27
28
29
30
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 29310011251 | MOUNTING PLATE | |
| 2 | 4011000528 | BOLT GB16674-M10x100EpZn-8.8 | |
| 3 | 29310011301 | ADJUSTING SEAT | |
| 4 | 4013000007 | NUT | |
| 5 | 4015000162 | Washer | |
| 6 | 4041000187 | JOINT | |
| 7 | 4041000771 | O-RING | |
| 8 | 4041001117 | TUBE LGB165-010170 | |
| 9 | 4041001219 | Hose assembly | |
| 10 | 4041001054 | Hose assembly | |
| 11 | 4120000018 | STEERINGWHEEL | |
| 12 | 29310011191 | MOUNTING FRAME | |
| 13 | 4120003984 | Steering column | |
| 14 | 4011000473 | BOLT | |
| 15 | 4011000479 | BOLT | |
| 16 | 4120003945 | Control valve | |
| 17 | 4041000564 | JOINT | |
| 18 | 4041000783 | O-RING | |
| 19 | 4011000447 | BOLT | |
| 20 | 29200008321 | BRACKET | |
| 21 | 29200008332 | RUBBER PLATE | |
| 22 | 29200008341 | CLAMPING PLATE | |
| 23 | 4011000136 | BOLT GB16674-M10x85EpZn-8.8 | |
| 24 | 4013000007 | NUT | |
| 25 | 4015000162 | Washer | |
| 26 | 4041000131 | JOINT | |
| 27 | 4041000784 | O-RING | |
| 28 | 4041001049 | Hose assembly | |
| 29 | 4120002116 | Priority valve | |
| 30 | 4011000053 | BOLT | |
| 31 | 4041000088 | CONNECTER | |
| 32 | 4030000276 | O-RING | |
| 33 | 29200008801 | Hose assembly | |
| 34 | 4041001525 | Hose assembly | |
| 35 | 4041001047 | CONNECTOR | |
| 36 | 4030000530 | O-RING | |
| 37 | 4041000084 | CONNECTER | |
| 38 | 4030000285 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
