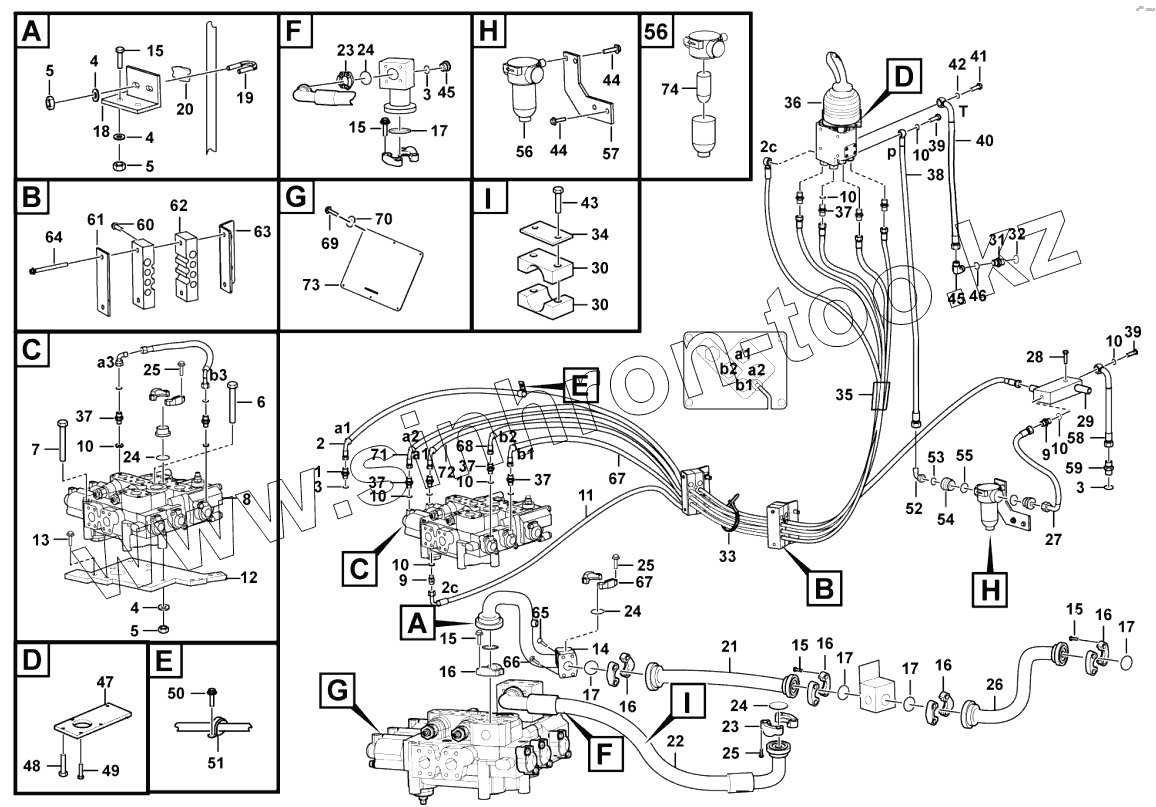

Каталог запасных частей к технике: SDLG LG956L. Hydraulic control system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
3
4
4
4
5
5
5
6
7
8
9
9
10
10
10
10
10
10
10
10
11
12
13
14
15
15
15
15
15
16
16
16
16
16
17
17
17
17
17
18
19
20
21
22
23
23
24
24
24
24
25
25
25
26
27
28
29
30
30
31
32
33
34
35
36
37
37
37
37
37
38
39
39
40
41
42
43
44
44
45
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
67
68
69
70
71
72
73
74
Позиция на иллюстрации Заводской номер детали Название детали
1 4041000604 JOINT
2 29120016561 OIL PIPE
3 4041000767 O-RING
4 4015000168 WASHER
5 4013000011 NUT
6 4011000057 BOLT
7 4011000056 BOLT
8 4120002303 Control valve
9 29120007651 JOINT
10 29120014931 WASHER
11 29120016551 FRONT PILOT PIPE
12 29120015091 Anchor plate
13 4011000149 BOLT GB16674-M16x50EpZn-8.8
14 29120015201 Pipe
15 4011000477 BOLT
16 4041000011 FLANGE
17 4030000130 O-RING
18 29120015121 Anchor plate
19 4041000954 U-BOLT LGB159-14254
20 4041000955 BOTTOM SHEET LGB160-4254
21 4041001263 PIPE LGB161-414118
22 29120015191 Hose assembly
23 4041000056 FLANGE
24 4030000029 O-RING
25 4011000475 BOLT
26 29120014731 RENTURN PIPE
27 4041000632 PIPE
28 4011000473 BOLT
29 4120005063 Valve
30 29140001141 RUBBER PLATE
31 4041000766 Nipple
32 4041000768 O-RING LGB168-11524
33 4190000020 CLIP
34 29140001131 PRESS PLATE
35 29010035891 Canvas cover
36 4120002027 PILOT VALVE
37 29120015401 FITTING
38 29120010891 FRONT PILOT PTPE
39 4011000344 BOLT
40 29120015981 Hose assembly
41 4011000366 BOLT
42 29120015221 WASHER
43 4011000136 BOLT GB16674-M10x85EpZn-8.8
44 4011000447 BOLT
45 4041001063 CONNECTOR LGB143-01810
46 4030000490 O-RING
47 29120016431 Cover
48 4014000058 SCREW
49 4011000488 BOLT
50 4011000461 BOLT
51 29120007671 CLAMP
52 4041001023 JOINT
53 4030000240 O-RING
54 29120015081 JOINT
55 4030000276 O-RING
56 4120001954 STRAINER
57 29120016021 PLATE
58 29120007561 OIL RETURN PIPE OF SELECTION VALVE
59 4041000150 STAIGHT JOINT
60 4011000560 BOLT
61 29120016951 MOUNTED PLATE
62 29120016741 CLAMP
63 29120016351 MOUNTED PLATE
64 4011000493 BOLT
65 4011000261 Bolt
66 4011000186 BOLT
67 29120016571 PIPE
68 29120016581 PIPE
69 4011000081 BOLT
70 4015000197 WASHER
71 29120016591 PIPE
72 29120016601 PIPE
73 29120014012 FRONT CAP
74 4120001954001 Filter insert
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
