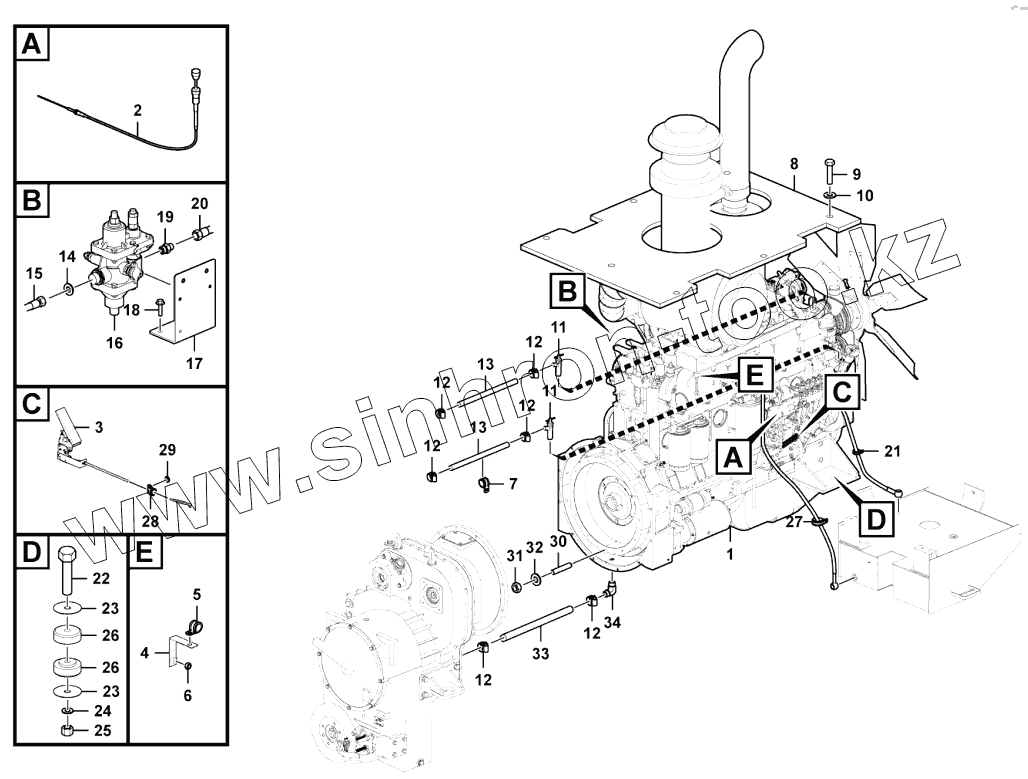

Каталог запасных частей к технике: SDLG LG956L. Engine system
1
2
3
4
5
6
7
8
9
10
11
11
12
12
12
12
12
12
13
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4110001016 | Engine | |
| 2 | 29010020351 | Control cable | |
| 3 | 29010000021 | GOVERNOR CONTROL SYSTEM | |
| 4 | 29010046721 | Bracket | |
| 5 | 29030010811 | Clamp | |
| 6 | 4013000033 | NUT | |
| 7 | 29030000041 | CLAMP | |
| 8 | 29010026451 | Cover plate | |
| 9 | 4011000081 | BOLT | |
| 10 | 4015000197 | WASHER | |
| 11 | 4120000067 | VALVE-HEATER | |
| 12 | 4017000024 | CLAMP | |
| 13 | 4090000363 | Hose | |
| 14 | 29220000171 | WASHER | |
| 15 | 4120002043 | Tube | |
| 16 | 4120000084 | AIR DYER | |
| 17 | 29220004021 | BRACKET OF AIR DYER | |
| 18 | 4011000461 | BOLT | |
| 19 | 29220012371 | Nipple | |
| 20 | 29010045231 | Hose assembly | |
| 21 | 26370001921 | CLAMP | |
| 22 | 4011000695 | Bolt | |
| 23 | 29050000121 | WASHER | |
| 24 | 4015000176 | WASHER | |
| 25 | 4013000160 | NUT GB889.2-M20x1.5 EpZn-8 | |
| 26 | 4110000460 | SHOCK ABSORBER CBB95-2 | |
| 27 | 29010000031 | Clamp | |
| 28 | 26370001212 | Clamp | |
| 29 | 4015000072 | WASHER | |
| 30 | 29010016661 | DOUBLE-SCREW BOLT | |
| 31 | 4013000007 | NUT | |
| 32 | 4015000025 | Washer | |
| 33 | 29010042681 | Hose | |
| 34 | 29010008691 | FITTING OIL RETURN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
