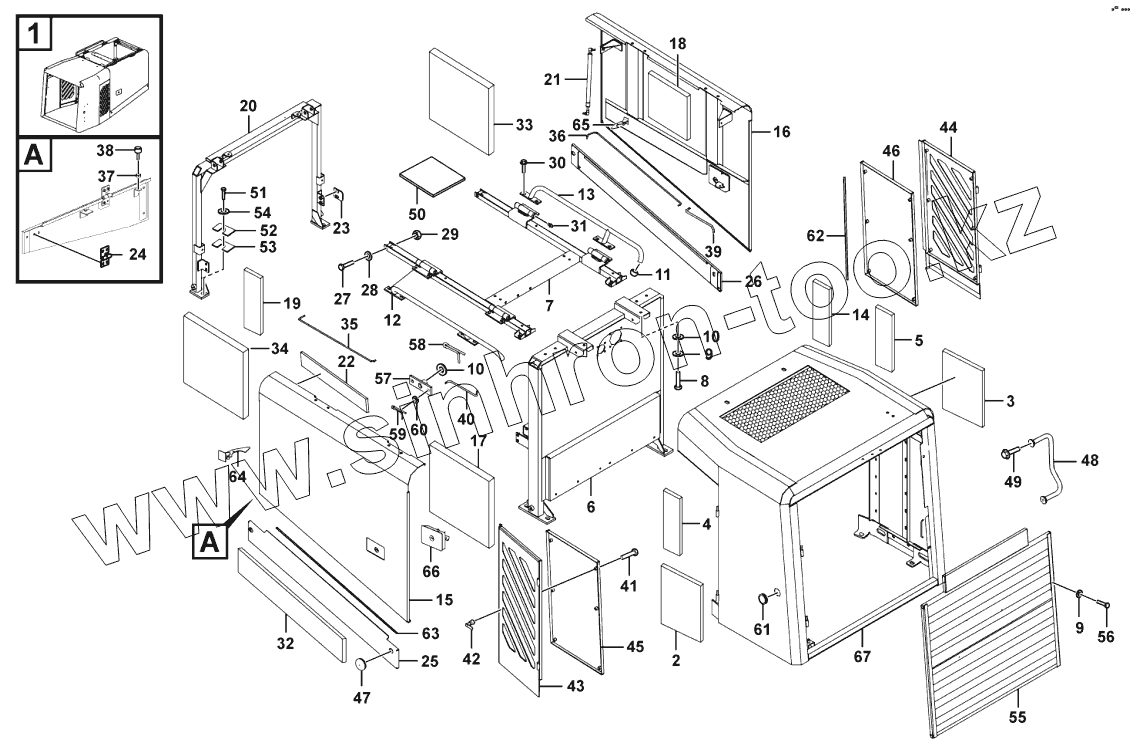

Каталог запасных частей к технике: SDLG LG956L. Engine hood system
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 21909007171 | Bonnet | |
| 2 | 29330034571 | Sponge | |
| 3 | 29330034581 | Sponge | |
| 4 | 29330034551 | Sponge | |
| 5 | 29330034561 | Sponge | |
| 6 | 29330016241 | REAR BRACKET | |
| 7 | 29330016401 | UP BRACKET | |
| 8 | 4011000447 | BOLT | |
| 9 | 4015000197 | WASHER | |
| 10 | 4015000162 | Washer | |
| 11 | 29330011232 | RUBBER COVER | |
| 12 | 29330016441 | LEFT UPPER HANDRAIL | |
| 13 | 29330016461 | RIGHT UPPER HANDRAIL | |
| 14 | 29330034461 | Sponge | |
| 15 | 29330016481 | LEFT SIDE DOOR ASS’Y | |
| 16 | 29330016551 | RIGHT SIDE DOOR | |
| 17 | 29330034441 | Sponge | |
| 18 | 29330034451 | Sponge | |
| 19 | 29330034481 | Sponge | |
| 20 | 29330016611 | FRONT BRACKET | |
| 21 | 29330014621 | AIR SPRING | |
| 22 | 29330034501 | Sponge | |
| 23 | 29330000092 | FRONT LOCK PLATE | |
| 24 | 29330001531 | HINGE | |
| 25 | 29330016631 | LEFT HOOD | |
| 26 | 29330016651 | RIGHT HOOD | |
| 27 | 4011000151 | BOLT | |
| 28 | 4015000181 | WASHER | |
| 29 | 4013000016 | NUT | |
| 30 | 4011000477 | BOLT | |
| 31 | 4030000535 | OIL CUP | |
| 32 | 29330034531 | Sponge | |
| 33 | 29330034541 | Sponge | |
| 34 | 29330034521 | Sponge | |
| 35 | 29330016671 | LEFT LONG LINK | |
| 36 | 29330016681 | RIGHT LONG LINK | |
| 37 | 4013000007 | NUT | |
| 38 | 29330001511 | PAD BLOCK | |
| 39 | 29330000171 | SHORT LINK | |
| 40 | 29330000181 | SHORT LINK | |
| 41 | 4130000075 | BOLT GB16674-M6x12EpZn-8.8 | |
| 42 | 4190000916 | LOCK | |
| 43 | 29330016691 | LEFT HALFTONE | |
| 44 | 29330016731 | RIGHT HALFTONE | |
| 45 | 29330018691 | HALFTONE | |
| 46 | 29330018731 | HALFTONE | |
| 47 | 29330000201 | RUBBER COVER | |
| 48 | 29330001891 | HANDRAIL | |
| 49 | 4011000560 | BOLT | |
| 50 | 29330034591 | Sponge | |
| 51 | 4011000094 | BOLT | |
| 52 | 29330020211 | SPACER | |
| 53 | 29330020221 | SPACER | |
| 54 | 29330023161 | WASHER 16 | |
| 55 | 29330018742 | WINDOW PILLAR | |
| 56 | 4011000081 | BOLT | |
| 57 | 29330000241 | TURN PLATE | |
| 58 | 4016000119 | PIN | |
| 59 | 4016000114 | PIN | |
| 60 | 4015000207 | WASHER | |
| 61 | 29330001541 | RUBBER PAD | |
| 62 | 4090000053 | Sealing strip | |
| 63 | 4030000750 | Sealing strip | |
| 64 | 4190001249 | Bonnet lock | |
| 65 | 4190001250 | Bonnet lock | |
| 66 | 4190000022 | Lock | |
| 67 | 29330018441 | REAR HOOD |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
