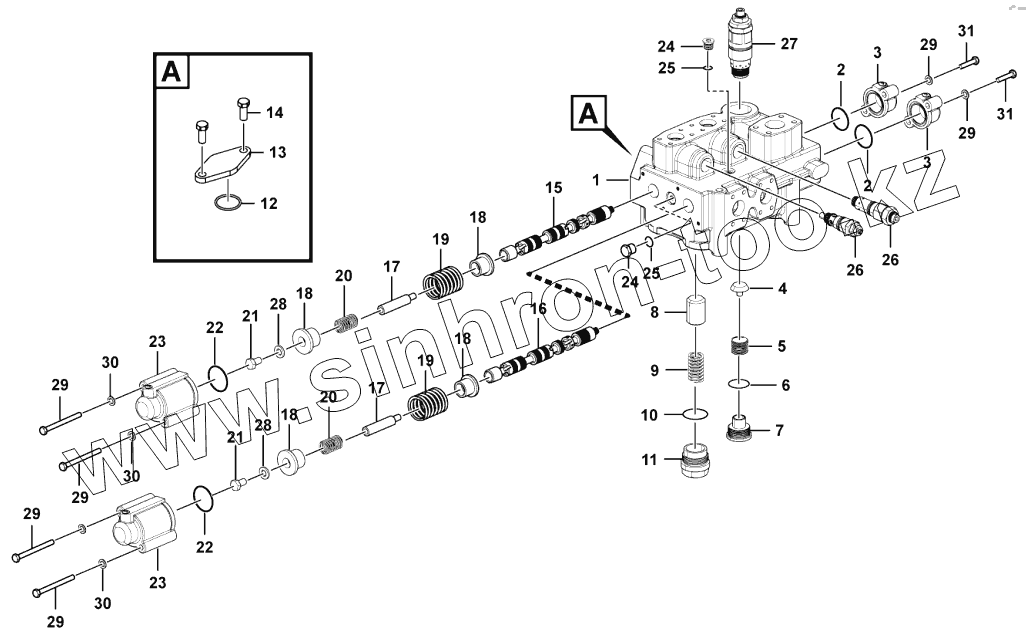

Каталог запасных частей к технике: SDLG LG956L. Control valve assembly
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
28
28
29
29
29
29
29
29
30
30
30
31
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4120001054006 | VALVE BODY | |
| 2 | 7200001075 | O-RING | |
| 3 | 4120001054004 | END CAP | |
| 4 | 4120001054024 | CHECK VALVE | |
| 5 | 4120001054023 | SPRING | |
| 6 | 4030000706 | O-RING | |
| 7 | 4120001054022 | CHECK VALVE BODY | |
| 8 | 4120001054016 | VALVE CORE | |
| 9 | 4120001054015 | SPRING | |
| 10 | 7200001075 | O-RING | |
| 11 | 4120001054207 | Valve cover | |
| 12 | 7200000446 | O-RING | |
| 13 | 4120004303005 | Cover d32-11 | |
| 14 | 4011000087 | BOLT | |
| 15 | 4120002303007 | Valve rod | |
| 16 | 4120002303008 | Valve rod | |
| 17 | 4120005199015 | Joint | |
| 18 | 4120001054214 | Spring seat | |
| 19 | 4120001054007 | SPRING | |
| 20 | 4120001054215 | Spring | |
| 21 | 4011000087 | BOLT | |
| 22 | 4030000608 | O-RING | |
| 23 | 4120001054219 | Valve cover | |
| 24 | 4120001054222 | Plug | |
| 25 | 4030000011 | O-RING | |
| 26 | 4120002303009 | Safety valve | |
| 27 | 4120002303001 | Relief valve | |
| 28 | 4015000168 | WASHER | |
| 29 | 4014000217 | SCREW | |
| 30 | 4015000025 | Washer | |
| 31 | 4120001054027 | Screw gb70-m10*45 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
